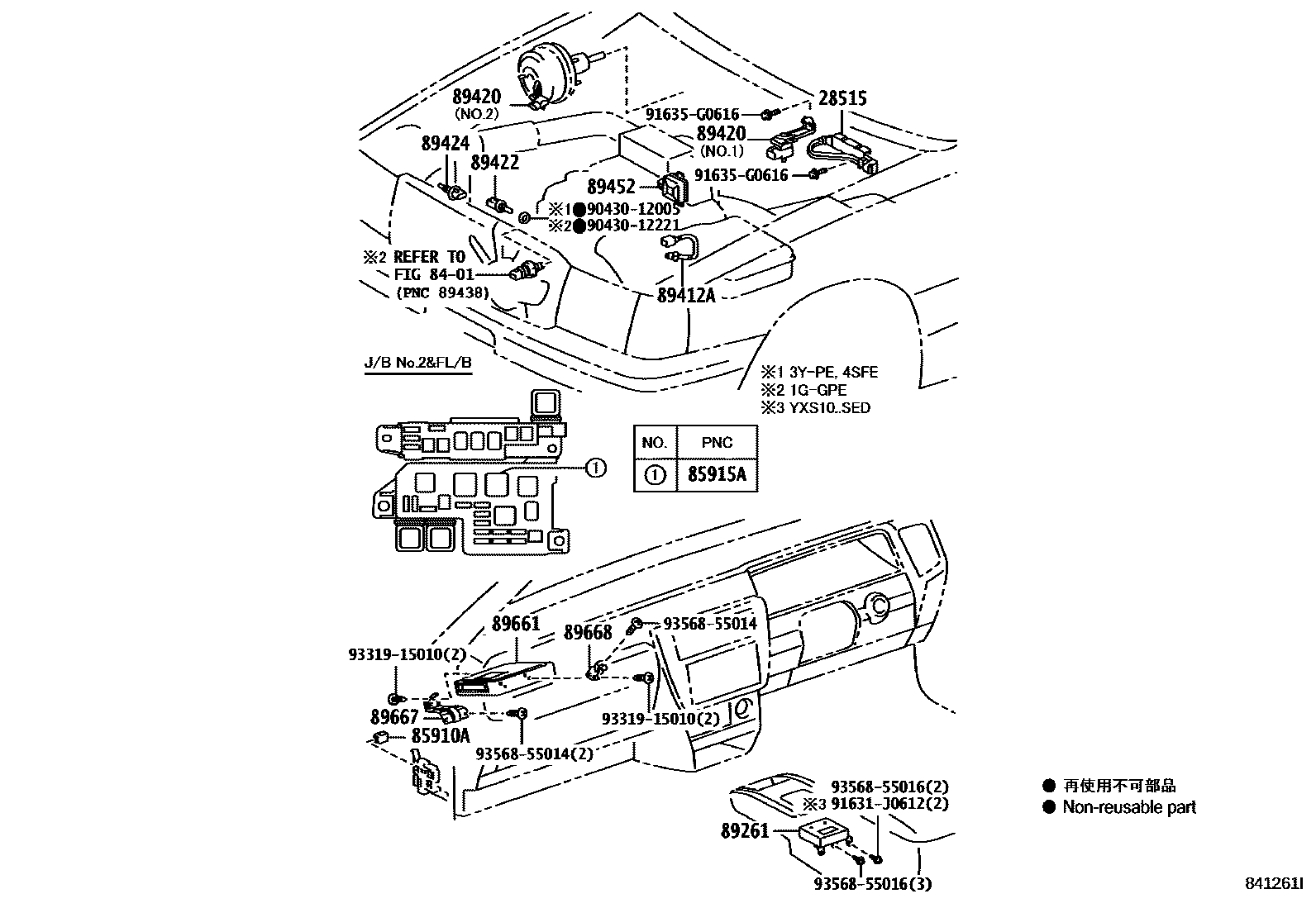

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

28515RESISTOR, SOLENOID

main28515-73040i3YPE..YXS10..4H;3YPE..YXS10..SED..4HC199512-200706

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02004iGXS10,SXS11,YXS1#199512-200108

main90987-02022iSXS13200108-200708

main90987-02027iYXS10..CRW..4HC200108-200706

85915ARELAY, MAIN

main90987-02009iGBS12,YXS1#..4FC,5F199512-200708

89261COMPUTER, ENGINE STOP AND START

main89260-43010iTSS10,11..(CRW,TAX)..4FC201310

main89260-43020iTSS10..SED201310

main89261-43010iYXS11..SG200108

main89261-43020iYXS10..SED..4FC200403

main89261-43030iTSS10,11..(CRW,TAX)..4FC200808-201007

sub89261-43031

main89261-43031iTSS10,11..(CRW,TAX)..4FC201008-201310

main89261-43040iTSS10..SED200808-201007

sub89261-43041

main89261-43041iTSS10..SED201008-201310

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-43010iYXS10..CRW..4HC200108-200706

89420SENSOR ASSY, VACUUM

main89420-0W070iGXS10,SXS11,YXS1#199512-199801

sub89420-43010

main89420-30130iTSS10,11..(CRW,SED,TAX)..4FC200108-200808

main89420-43020iYXS10..4HC199801-200808

main89420-43030iGXS10199801-200210

main89420-52030iYXS1#..(CRW,TAX)..ATM..(DLX,STD)200108-200402

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iGXS12200108-200708

main89422-16010iGBS12,SXS13200108-200808

main89422-20010iGXS10,SXS11,YXS1#199512-200808

main89422-22030iGBS12,SXS13200108-200808

main89422-33030iTSS1#200709

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iYXS10..4HC199512-200708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10010iSXS11199604-200108

main89452-22070iGXS12200108-200708

main89452-30120iGXS10,YXS1#199512-200104

main89452-33030iSXS13200108-200707

main89452-43010iYXS1#200105-200808

main89452-53010iGBS12200210-200808

89661COMPUTER, ENGINE CONTROL

main89661-3A370iGXS10199801-200102

main89661-43010iYXS1#199512-200108

main89661-43020iGXS10199512-199801

main89661-43050iSXS11199604-200108

main89661-43060iYXS1#200108-200202

sub89661-43061

main89661-43061iYXS1#200202-200210

sub89661-43180

main89661-43062iYXS1#200210-200305

sub89661-43063

main89661-43063iYXS1#200305-200406

main89661-43070iYXS1#..(CRW,TAX)..ATM..(DLX,STD)200108-200202

sub89661-43071

main89661-43071iYXS1#..(CRW,TAX)..ATM..(DLX,STD)200202-200210

sub89661-43190

main89661-43072iYXS1#..(CRW,TAX)..ATM..(DLX,STD)200210-200305

sub89661-43073

main89661-43073iYXS1#..(CRW,TAX)..ATM..(DLX,STD)200305-200406

main89661-43080iGXS10200110-200210

sub89661-43081

main89661-43090iGXS12200108-200708

main89661-43100iSXS13200108-200707

main89661-43110iGBS12200210-200212

sub89661-43111

main89661-43111iGBS12200212

main89661-43120iYXS10..CRW..4HC200406-200706

main89661-43130iYXS10..4H;YXS10..SED..4HC200406-200706

main89661-43160iTSS11..5F201008-201207

main89661-43161iTSS11..5F201207-201310

main89661-43170iTSS10,11..(CRW,SED,TAX)..4FC201008-201207

main89661-43171iTSS10,11..(CRW,SED,TAX)..4FC201207-201310

main89661-43200iTSS13..5F200709-201008

main89661-43210iTSS13..4FC200709-201008

main89661-43220iTSS11..5F200808-200909

sub89661-43221

main89661-43221iTSS11..5F200909-201008

main89661-43230iTSS10,11..(CRW,SED,TAX)..4FC200808-200909

sub89661-43231

main89661-43231iTSS10,11..(CRW,SED,TAX)..4FC200909-201008

main89661-43240iTSS11..4FC..DLX200808-200909

sub89661-43241

main89661-43241iTSS11..4FC..DLX200909-201008

main89661-43250iTSS11..4FC..DLX201008-201207

main89661-43251iTSS11..4FC..DLX201207-201310

main89661-43260iTSS13..5F201008-201207

sub89661-43280

main89661-43270iTSS13..4FC201008-201207

sub89661-43290

main89661-43280iTSS13..5F201207-201310

main89661-43290iTSS13..4FC201207-201310

main89661-43310iTSS13..5F201310-201603

sub89661-43360

main89661-43320iTSS13..4FC201310-201603

sub89661-43370

main89661-43330iTSS10,11..(CRW,SED,TAX)..4FC201310-201801

main89661-43340iTSS11..4FC..DLX201310-201801

main89661-43350iTSS11..5F201310-201801

main89661-43360iTSS13..5F201604-201801

main89661-43370iTSS13..4FC201604-201801

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-43010iLXS11..5F;GXS10,SXS11,YXS1#199512-200709

main89667-43020iSXS13199701-200708

main89667-43020iGXS10200108-200706

main89667-43030iGBS12200210

main89667-43040iTSS13200709

main89667-43050iTSS10,11200808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-43010iLXS11..5F;GXS10,SXS11,YXS1#199512-200709

main89668-43020iYXS10..SED..4HC200108-200706

main89668-43020iLXS11..5F;SXS11,YXS11..DLX199701-200708

main89668-43030iGBS12200210

main89668-43040iTSS1#200709

9043012005

main90430-12005

9043012221

main90430-12221

91631J0612

main91631-J0612

91635G0616

main91635-G0616

9331915010

main93319-15010

9356855014

main93568-55014

9356855016

main93568-55016

20 parts on this diagram · 6 diagrams in section
