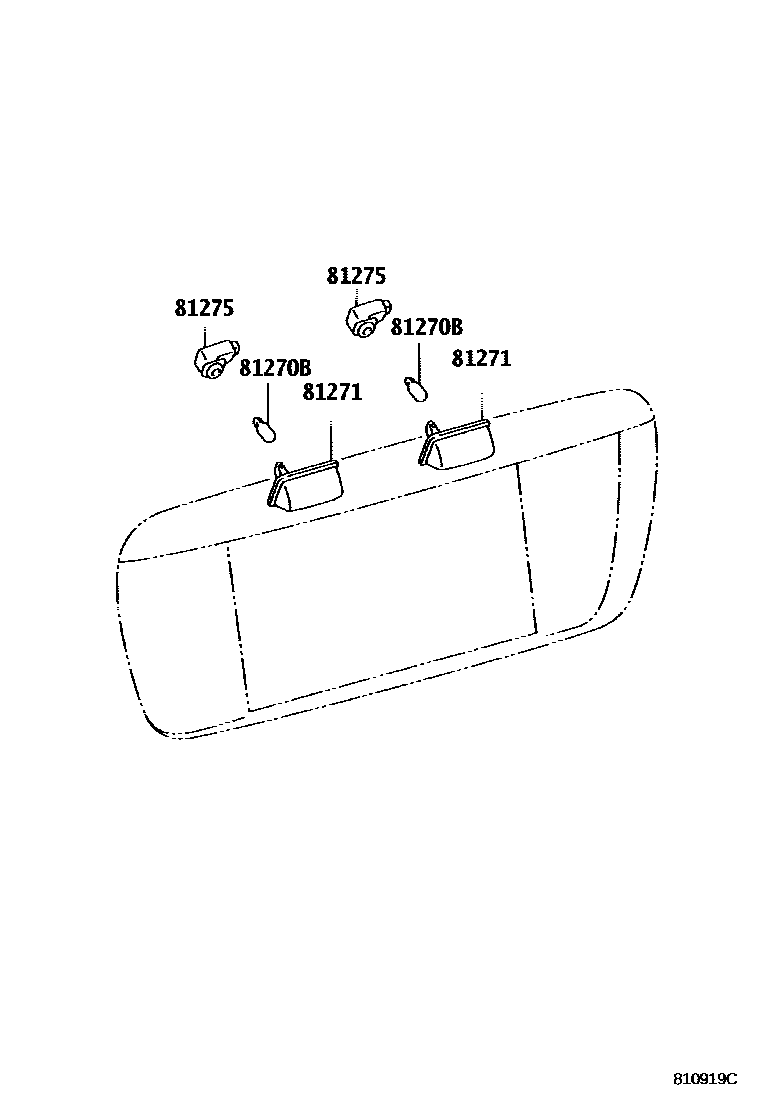

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iYXS10..4HC199512-200808

81271LENS, LICENSE PLATE LAMP

main81271-12501iSXS13,YXS1#..DLX,SG,STD199512-200705

sub81271-12502

main81271-12502iYXS10..4HC200705-200912

sub81271-12503

main81271-12503iTSS1#..DLX,SG,STD200912

main81271-30270iGBS12,GXS1#,YXS10..SED200108-200808

main81691-12131iTSS1#..DLX,SG,STD199512-200808

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12500iGXS10,LXS11,SXS11,YXS1#199512-199812

sub81275-12501

main81275-12501iYXS10..4HC199812-200808

main90075-99011iTSS10..SED200108-200808

3 parts on this diagram · 2 diagrams in section
