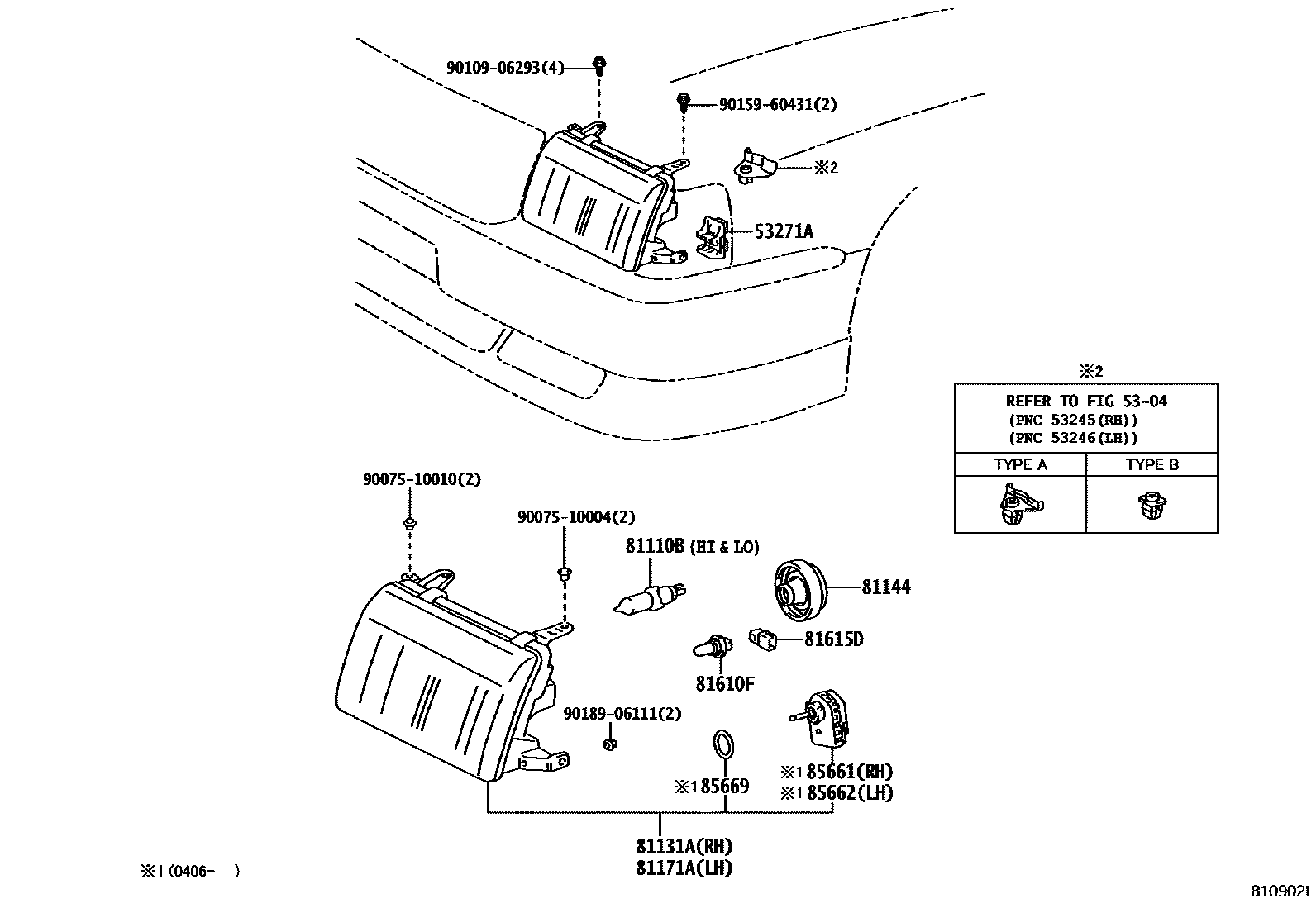

HEADLAMP

5304

53271ABRACKET, HEADLAMP MOUNTING

main53271-43010×2iGXS10200108-200210

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iYXS10..CRW..4HC200108-200707

main90981-22004×2iGXS10,LXS11,SXS11,YXS1#199512-200108

sub90981-13055

81131AUNIT, HEADLAMP, RH

main81130-43010iGXS10,LXS11,SXS11,YXS1#199512-199801

main81130-43011iGBS12,GXS12,SXS13,YXS1#200108-200406

main81130-43030iYXS10..4H;YXS10..SED..4HC200406-200706

main81130-43060iTSS1#201310

81144COVER, HEADLAMP, NO.1

main90075-65002×2iGXS10,LXS11,SXS11,YXS1#199512-200108

81171AUNIT, HEADLAMP, LH

main81170-43010iGXS10,LXS11,SXS11,YXS1#199512-199801

main81170-43011iGXS10,LXS11,SXS11,YXS1#199801-200108

main81170-43030iSXS13200406-200707

main81170-43060iTSS1#201310

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iGXS10200108-200210

81615DSOCKET, CLEARANCE LAMP

main90075-60005×2iGXS10,LXS11,SXS11,YXS1#199512-200108

main90075-60072×2iTSS1#200709

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iTSS1#200910

main85661-22020iYXS10..4HC200709-200808

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iTSS1#200910

main85661-22020iYXS10..4HC200709-200808

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iYXS10..CRW..4HC200406-200707

9007510004

main90075-10004

9007510010

main90075-10010

9010906293

main90109-06293

9015960431

main90159-60431

9018906111

main90189-06111

16 parts on this diagram · 1 diagram in section
