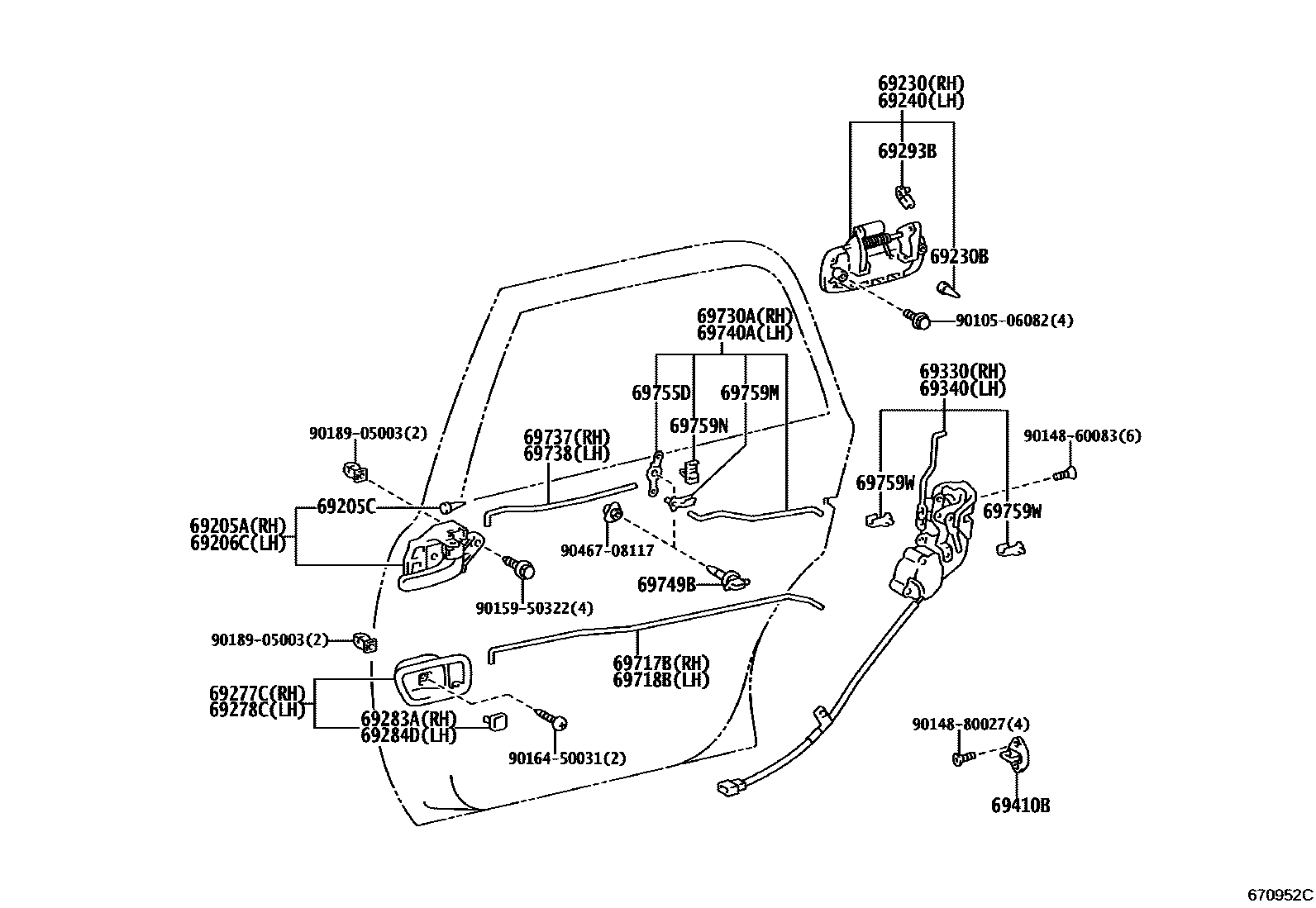

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-22080-B2iLXS11,YXS11..SG199701-200001

SHADOW GRAY,TRIM1#

sub69205-22080

main69205-22080-B2iLXS11,YXS11..SG199701-200001

sub69205-22080

main69205-30120-B1iYXS10..STD;LXS11,SXS11,YXS11199512-200001

SHADOW GRAY,TRIM1#

sub69205-30120

main69205-30150-B4iYXS10..STD;SXS11,YXS11200001-200108

SHADOW GRAY,TRIM1#

sub69205-30150

main69205-30150-B6iSXS13,YXS11..DLX,STD;YXS10..(4FC,4H)..STD200108-200808

DK.GRAY,TRIM1#

sub69205-30150

main69205-47010-B2iGXS10,YXS1#..(CRW,TAX)..(DLX,SDX,SG)200001-200108

sub69205-47010

main69205-47010-B4iTSS10,11..(CRW,SED,TAX)..(DLX,SAL,SDX,SG)200108-200808

DK.GRAY,TRIM1#

sub69205-47010

main69205-47010-B4iYXS10..4HC..DLX200108-200808

sub69205-47010

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iGBS12,YXS1#..4FC,5F199512-200708

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-22080-B2iLXS11,YXS11..SG199701-200001

sub69206-22080

sub69206-30120

main69206-22080-B2iGXS10,YXS10..DLX,SDX199701-200001

SHADOW GRAY,TRIM1#

sub69206-22080

sub69206-30120

main69206-30120-B1iGXS10,LXS11,SXS11,YXS1#199512-200001

SHADOW GRAY,TRIM1#

sub69206-30120

main69206-30150-B4iYXS10..STD;SXS11,YXS11200001-200108

SHADOW GRAY,TRIM1#

sub69206-30150

main69206-30150-B6iYXS10..4HC..STD200108-200808

DK.GRAY,TRIM1#

sub69206-30150

main69206-47010-B2iGXS10,YXS1#..(CRW,TAX)..(DLX,SDX,SG)200001-200108

sub69206-47010

main69206-47010-B4iTSS10,11..(CRW,SED,TAX)..(DLX,SAL,SDX,SG)200108-200808

DK.GRAY,TRIM1#

sub69206-47010

main69206-47010-B4iYXS10..4HC..DLX200108-200808

sub69206-47010

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-30170iGXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG199512-200001

main69230-30200iGBS12,YXS1#..(4FC,5F)..(DLX,SAL,SDX,SG)200001-200807

sub69230-30201

main69230-30201iTSS1#..DLX,SAL,SDX,SG200808

main69230-43010iLXS11,YXS1#..STD199512-200001

main69230-43020iYXS1#..(4FC,5F)..STD200001-200706

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018iGXS10,LXS11,SXS11,YXS1#199512-200708

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-30170iGXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG199512-200001

main69240-30200iYXS10..4HC..DLX200001-200807

sub69240-30201

main69240-30201iTSS1#..DLX,SAL,SDX,SG200808

main69240-43010iLXS11,YXS1#..STD199512-200001

main69240-43020iYXS10..4H..STD200001-200706

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-22090-B1iGXS10,LXS11,SXS11,YXS1#199701-200108

SHADOW GRAY,TRIM1#

sub69277-22090

main69277-22090-B6iYXS10..CRW..4HC200108-200808

DK.GRAY,TRIM1#

sub69277-22090

main69277-30150-B1iGXS10,LXS11,SXS11,YXS1#199512-199701

SHADOW GRAY,TRIM1#

sub69277-30150

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-22050-B1iGXS10,LXS11,SXS11,YXS1#199701-200108

SHADOW GRAY,TRIM1#

sub69278-22050

main69278-22050-B6iTSS1#200108-200808

DK.GRAY,TRIM1#

sub69278-22050

main69278-30080-B1iGXS10,LXS11,SXS11,YXS1#199512-199701

SHADOW GRAY,TRIM1#

sub69278-30080

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B1iGXS10,LXS11,SXS11,YXS1#199512-200108

SHADOW GRAY,TRIM1#

sub69283-30040

main69283-30040-P0iYXS10..CRW..4HC200108-200808

DK.GRAY,TRIM1#

sub69283-30040

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B1iGXS10,LXS11,SXS11,YXS1#199512-200108

SHADOW GRAY,TRIM1#

sub69284-30040

main69284-30040-P0iYXS10..4HC200108-200808

DK.GRAY,TRIM1#

sub69284-30040

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iTSS10,11..STD199512-200706

main69293-12040iYXS10..4H..STD199512-200706

main69293-12050iYXS10..4HC..DLX199512-200708

main69293-12060iGBS12,YXS1#..(4FC,5F)..(DLX,SAL,SDX,SG)199512-200708

69330LOCK ASSY, REAR DOOR, RH

main69050-43010iLXS11,SXS11,YXS1#..DLX199512-200001

main69050-43010iGXS10,LXS11,YXS11..SDX,SG199512-200001

main69050-43020iYXS1#..STD199512-200001

main69050-43030iYXS10..4HC..DLX200001-200708

main69050-43040iYXS10..4H..STD200001-200706

main69330-43010iLXS11,YXS1#..STD199512-200001

main69330-43020iLXS11,SXS11,YXS1#..DLX199512-200001

main69330-43030iSXS11,YXS1#..DLX200001-200707

main69330-43040iYXS10..4H..STD200001-200706

69340LOCK ASSY, REAR DOOR, LH

main69060-43010iSXS11,YXS11..DLX199604-200001

main69060-43020iGXS10,LXS11,YXS11..SDX,SG199512-200001

main69060-43030iLXS11,YXS1#..STD199512-200001

main69060-43040iTSS11,13..DLX200001-200708

main69060-43050iYXS10..4HC..DLX200001-200706

main69060-43060iYXS10..4HC..STD200001-200706

main69340-43010iYXS10..DLX199512-200001

main69340-43020iLXS11,YXS1#..STD199512-200001

main69340-43030iLXS11,SXS11,YXS11..DLX199604-200001

main69340-43040iYXS11..DLX200001-200707

main69340-43050iYXS10..4H..DLX200001-200706

main69340-43060iYXS10..4HC..STD200001-200706

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-50010iGBS12,YXS10..SED..4FC200108-200708

main69410-87001iYXS10..4H199512-200707

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-30110iGXS10,LXS11,SXS11,YXS1#199512-200001

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-30110iGXS10,LXS11,SXS11,YXS1#199512-200001

69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH

main69730-43010iGXS10,SXS11,YXS1#199512-200001

69737LINK, REAR DOOR INSIDE LOCKING, RH

main69737-30100iGXS10,LXS11,SXS11,YXS1#199512-200001

69738LINK, REAR DOOR INSIDE LOCKING, LH

main69738-30080iGXS10,LXS11,SXS11,YXS1#199512-200001

69740ALINK ASSY, REAR DOOR LOCK CONTROL, LH

main69740-43010iGXS10,LXS11,SXS11,YXS1#199512-200001

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30050iTSS1#200001-200708

main69749-32030iGXS10,LXS11,SXS11,YXS1#199512-200001

69755DBELLCRANK, REAR DOOR LOCKING CONTROL, FRONT

main69755-22050iGXS10,LXS11,SXS11,YXS1#199512-200001

69759MSNAP, DOOR LOCK CONTROL LINK

main69759-24010iGXS10,SXS11,YXS1#199512-200001

main69759-24020iGXS10,LXS11,SXS11,YXS1#199512-200001

69759NSNAP, DOOR LOCK CONTROL LINK

main69759-20410iGXS10,LXS11,SXS11,YXS1#199512-200001

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20040iGXS10,LXS11,SXS11,YXS1#199512-200001

main69759-20050iGXS10,LXS11,SXS11,YXS1#199512-200001

main69759-24010iGXS10,SXS11,YXS1#200001-200708

main69759-24020iGBS12,YXS1#..4FC,5F200001-200708

9010506082

main90105-06082

9014860083

main90148-60083

9014880027

main90148-80027

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

9046708117

main90467-08117

32 parts on this diagram · 2 diagrams in section
