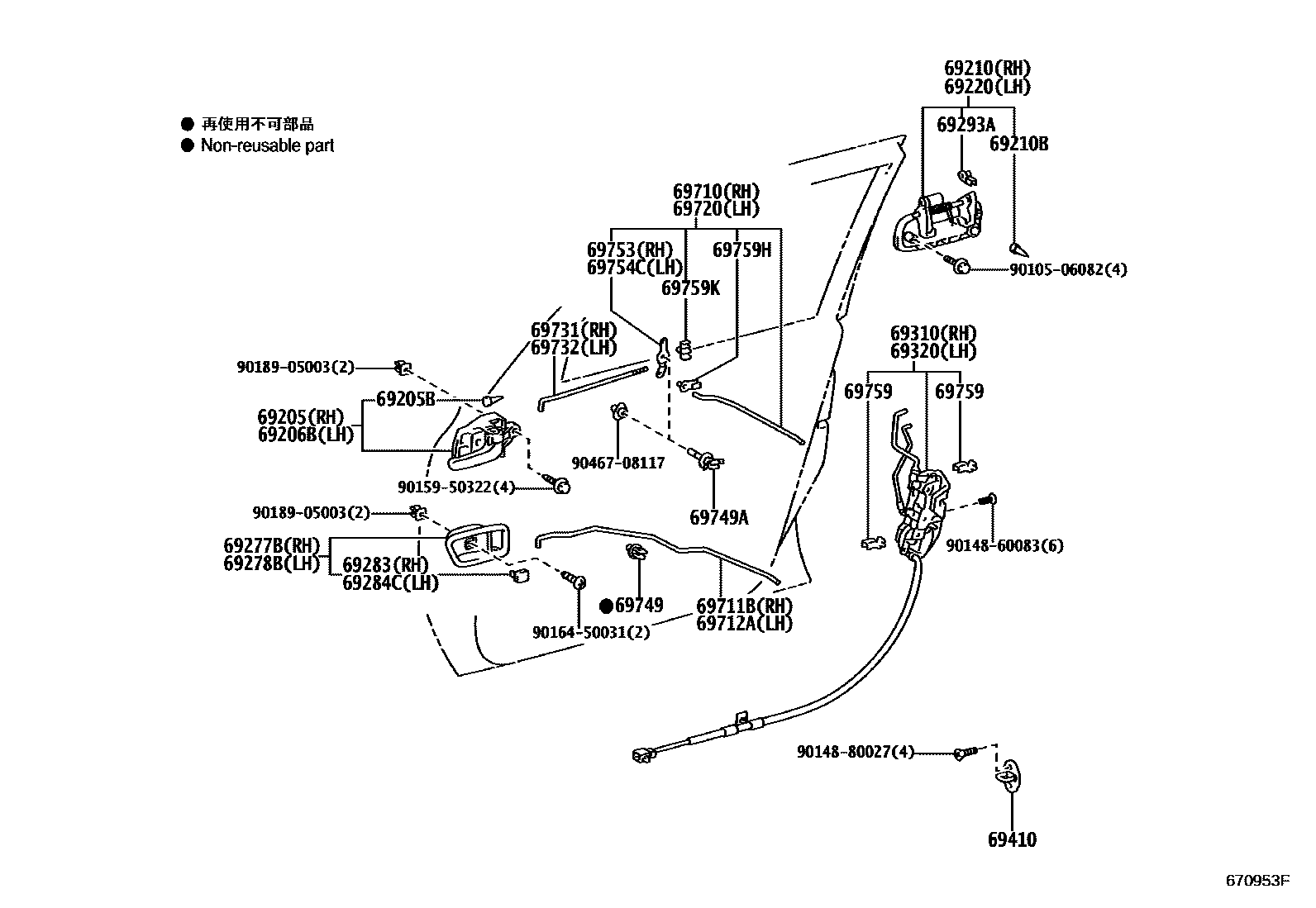

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22080-B2iGXS10,YXS10..DLX,SDX199701-200001

sub69205-22080

main69205-22080-B2iGXS10,YXS10..DLX,SDX199701-200001

SHADOW GRAY,TRIM1#

sub69205-22080

main69205-30120-B1iYXS10..STD;LXS11,SXS11,YXS11199512-200001

SHADOW GRAY,TRIM1#

sub69205-30120

main69205-30150-B4iYXS10..STD;SXS11,YXS11200001-200108

SHADOW GRAY,TRIM1#

sub69205-30150

main69205-30150-B6iYXS10..4HC..STD200108-200808

DK.GRAY,TRIM1#

sub69205-30150

main69205-47010-B2iGXS10,YXS1#..(CRW,TAX)..(DLX,SDX,SG)200001-200108

sub69205-47010

main69205-47010-B4iYXS1#..(CRW,TAX)..(4FC,4H)..(DLX,SG)200108-200808

DK.GRAY,TRIM1#

sub69205-47010

main69205-47010-B4iYXS10..4HC..DLX200108-200808

sub69205-47010

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iGXS10,LXS11,SXS11,YXS1#199512-200708

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22080-B2iLXS11,YXS11..SG199701-200001

sub69206-22080

sub69206-30120

main69206-22080-B2iGXS10,YXS10..DLX,SDX199701-200001

SHADOW GRAY,TRIM1#

sub69206-22080

sub69206-30120

main69206-30120-B1iYXS10..STD;LXS11,SXS11,YXS11199512-200001

SHADOW GRAY,TRIM1#

sub69206-30120

main69206-30150-B4iYXS10..STD;SXS11,YXS11200001-200108

SHADOW GRAY,TRIM1#

sub69206-30150

main69206-30150-B6iYXS10..4HC..STD200108-200808

DK.GRAY,TRIM1#

sub69206-30150

main69206-47010-B2iGXS10,YXS1#..(CRW,TAX)..(DLX,SDX,SG)200001-200108

sub69206-47010

main69206-47010-B4iYXS10..(4FC,4H)..DLX;GBS12,GXS1#,YXS1#..SAL,SDX,SG200108-200808

sub69206-47010

main69206-47010-B4iTSS10,11..(CRW,SED,TAX)..(DLX,SAL,SDX,SG)200808

DK.GRAY,TRIM1#

sub69206-47010

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30240iGXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG199512-199701

main69210-30260iYXS10..4H..DLX;YXS10..SED..4HC199701-200807

sub69210-30261

main69210-30261iTSS1#..DLX,SAL,SDX,SG200808

main69210-43010iYXS10..4HC..STD199512-200706

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018iGXS10,LXS11,SXS11,YXS1#199512-200708

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-30220iGXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG199512-199701

main69220-30240iYXS10..4H..DLX;YXS10..SED..4HC199701-200807

sub69220-30241

main69220-30241iTSS1#..DLX,SAL,SDX,SG200808

main69220-43010iYXS10..4H..STD199512-200706

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22090-B1iGXS10,LXS11,SXS11,YXS1#199701-200108

SHADOW GRAY,TRIM1#

sub69277-22090

main69277-22090-B6iYXS10..CRW..4HC200108-200808

DK.GRAY,TRIM1#

sub69277-22090

main69277-30150-B1iGXS10,LXS11,SXS11,YXS1#199512-199701

SHADOW GRAY,TRIM1#

sub69277-30150

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22050-B1iGXS10,LXS11,SXS11,YXS1#199701-200108

SHADOW GRAY,TRIM1#

sub69278-22050

main69278-22050-B6iYXS10..4HC200108-200808

DK.GRAY,TRIM1#

sub69278-22050

main69278-30080-B1iGXS10,LXS11,SXS11,YXS1#199512-199701

SHADOW GRAY,TRIM1#

sub69278-30080

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B1iGXS10,LXS11,SXS11,YXS1#199512-200108

SHADOW GRAY,TRIM1#

sub69283-30040

main69283-30040-P0iYXS10..CRW..4HC200108-200808

DK.GRAY,TRIM1#

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B1iGXS10,LXS11,SXS11,YXS1#199512-200108

SHADOW GRAY,TRIM1#

sub69284-30040

main69284-30040-P0iTSS1#200108-200808

DK.GRAY,TRIM1#

sub69284-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iTSS10,11..STD199512-200706

main69293-12040iYXS10..4H..STD199512-200706

main69293-12050iTSS1#..DLX,SAL,SDX,SG199512-200708

main69293-12060iYXS10..4H..DLX;YXS10..SED..4HC199512-200708

69310LOCK ASSY, FRONT DOOR, RH

main69030-43010iYXS10..DLX199512-199701

main69030-43011iYXS10..DLX199701-200001

main69030-43020iLXS11,SXS11,YXS11..DLX199604-200001

main69030-43020iGXS10,LXS11,YXS11..SDX,SG199512-200001

main69030-43030iLXS11,YXS1#..STD199512-199701

main69030-43031iLXS11,YXS1#..STD199701-200001

main69030-43040iLXS11,YXS1#..STD199701-200001

main69030-43050iYXS10..4H..DLX200001-200706

main69030-43050iTSS10..DLX200808

main69030-43060iYXS10..4HC..DLX200001-200708

main69030-43070iYXS10..4H..STD200001-200706

main69030-43070iTSS10..STD200808

main69030-43080iYXS10..4HC..STD200001-200706

main69030-43100iSXS13200108-200707

main69030-43100iYXS11..DLX,SG200001-200108

main69030-43110iYXS11..STD200001-200108

main69310-43010iLXS11,YXS1#..STD199512-200001

main69310-43020iLXS11,SXS11,YXS1#..DLX199512-200001

main69310-43030iTSS10..DLX200001-200706

main69310-43040iYXS10..STD200001-200706

main69310-43050iSXS11,YXS11..DLX200001-200707

main69310-43060iTSS11..STD200001-200108

69320LOCK ASSY, FRONT DOOR, LH

main69040-43010iSXS11,YXS1#..DLX199512-200001

main69040-43010iGXS10,LXS11,YXS11..SDX,SG199512-200001

main69040-43020iYXS1#..STD199512-200001

main69040-43030iYXS10..4HC..DLX200001-200708

main69040-43040iYXS10..4H..STD200001-200706

main69040-43050iYXS11..DLX,SG200001-200108

main69040-43050iSXS11,YXS11..DLX,SG200001-200706

main69040-43050iSXS13200108-200707

main69040-43060iYXS11..STD200001-200108

main69040-43060iYXS11..STD200001-200706

main69040-43060iTSS11..STD200808

main69040-43060iTSS11..STD200808

main69320-43010iLXS11,YXS1#..STD199512-200001

main69320-43020iLXS11,SXS11,YXS1#..DLX199512-200001

main69320-43030iYXS10..4HC..DLX200001-200706

main69320-43040iYXS10..4HC..STD200001-200706

main69320-43050iYXS11..DLX200108-200707

main69320-43050iYXS10..4H..DLX200001-200706

main69320-43050iTSS10..DLX200808

main69320-43060iYXS10..4H..STD200001-200706

main69320-43060iYXS11..STD200108

main69320-43060iTSS11..STD200808

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-50010iGXS12200108-200708

main69410-87001iYXS10..CRW..4HC199512-200707

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69710-43010iLXS11,SXS11,YXS11199512-200001

main69710-43020iGXS10,YXS10199512-200001

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-30130iGXS10,YXS10199512-200001

main69711-43010iSXS11,YXS11199512-200001

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-30140iGXS10,YXS10199512-200001

main69712-43010iLXS11,SXS11,YXS11199512-200001

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69720-43010iLXS11,SXS11,YXS11199512-200001

main69720-43020iGXS10,YXS10199512-200001

69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-30030iGXS10,SXS11,YXS1#199512-200001

69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-30030iGXS10,LXS11,SXS11,YXS1#199512-200001

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30050iGBS12,YXS1#..4FC,5F200001-200708

main69749-50010iGXS10,LXS11,SXS11,YXS1#199512-200001

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-32030iGXS10,LXS11,SXS11,YXS1#199512-200001

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-30050iGXS10,LXS11,SXS11,YXS1#199512-200001

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69754-30060iGXS10,LXS11,SXS11,YXS1#199512-200001

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24010iGXS10,LXS11,SXS11,YXS1#199512-200108

WHITE

main69759-24010iYXS10..4HC200108-200708

main69759-24020iTSS1#199512-200708

main69759-24050iGXS10,LXS11,SXS11,YXS1#199512-200001

GREEN

main69759-24060iGXS10,LXS11,SXS11,YXS1#199512-200001

GRAY

main69759-24070iGXS10,LXS11,SXS11,YXS1#199512-200001

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-24010iGXS10,YXS10199512-200001

main69759-24020iGXS10,YXS10199512-200001

main69759-24050iSXS11,YXS11199512-200001

main69759-24060iSXS11,YXS11199512-200001

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-20410iGXS10,SXS11,YXS1#199512-200001

9010506082

main90105-06082

9014860083

main90148-60083

9014880027

main90148-80027

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

9046708117

main90467-08117

34 parts on this diagram · 2 diagrams in section
