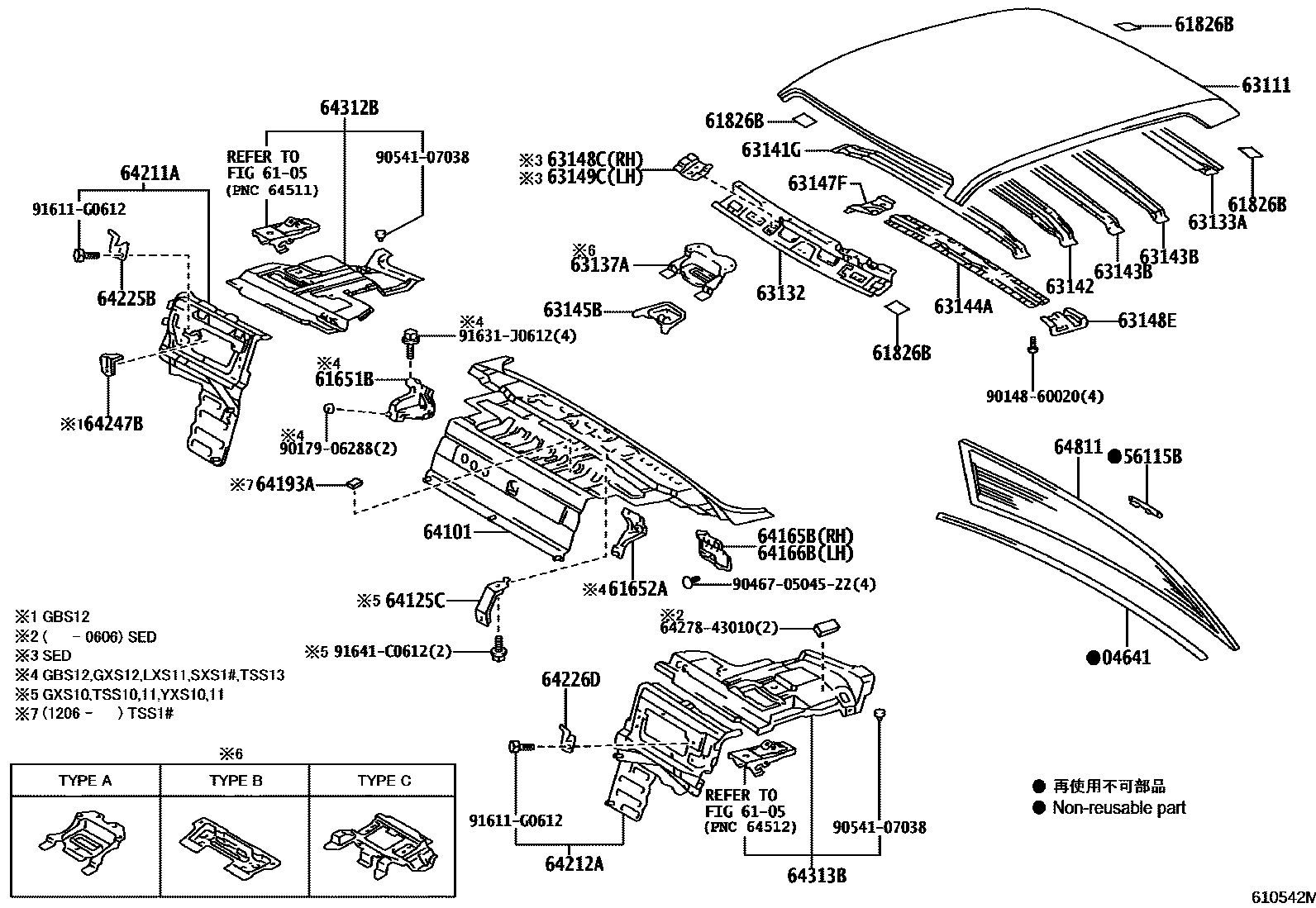

ROOF PANEL & BACK WINDOW GLASS

04641DAM KIT, BACK WINDOW GLASS

main56117-50140iTSS1#201009

main75571-13060iYXS10..4H;YXS10..SED..4HC200108-200706

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56116-16050×2iYXS10..4HC200709

6105

61651BBRACKET, FUEL TANK, RH

main61651-43010iLXS11,SXS11199512-200108

61652ABRACKET, FUEL TANK, LH

main61652-43010iLXS11,SXS11199512-200108

61826BPLATE, NOISE CONTROL, NO.3

main61826-22020×4iSXS13200108-200707

63111PANEL, ROOF

main63111-43010iGXS10,YXS10199512-200001

main63111-43011iGXS10,YXS10200001-200105

main63111-43012iYXS10200105-200108

main63111-43020iLXS11,SXS11,YXS11199512-200001

main63111-43021iSXS11,YXS11200001-200108

63132PANEL, WINDSHIELD HEADER, INNER

main63132-43010iGXS10,LXS11,SXS11,YXS1#199512-200103

main63132-43011iYXS10..4HC200709

main63132-43020iGXS12200108-200708

63133AFRAME, BACK WINDOW, UPPER

main63133-43010iGXS10,LXS11,SXS11,YXS1#199512-200103

main63133-43011iYXS10..4HC200709

63137ABRACKET, DOME LAMP, NO.1

main63137-30150iYXS11..DLX200108

main63137-43010iGXS10200108-200210

main63139-30060iYXS1#..CRW,TAX200108-200403

main63139-43010iTSS10,11..CRW,TAX200808

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-43010iSXS13200108-200707

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-43010iGXS10,LXS11,SXS11,YXS1#199512-200001

main63142-43020iSXS13200108-200707

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-43010×2iGXS10,LXS11,SXS11,YXS1#199512-200108

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-43010iGXS10,LXS11,SXS11,YXS1#199512-200001

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-30080iGXS10,LXS11,SXS11,YXS1#199512-200108

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-43010iGXS10,SXS11,YXS1#200001-200108

main63147-43020iYXS10..CRW..4HC200108-200706

63148CREINFORCEMENT, ROOF PANEL SIDE, RH

main63148-43010iGXS10200108-200210

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-43010iGXS10,LXS11,SXS11,YXS1#199512-200001

main63147-43020iTSS10200808

63149CREINFORCEMENT, ROOF PANEL SIDE, LH

main63149-43010iYXS10..SED..4HC200108-200706

64101PANEL SUB-ASSY, UPPER BACK

main64101-43010iGXS10,LXS11,SXS11,YXS1#199512-200105

main64101-43011iYXS10..CRW..4HC200108-200706

sub64101-43012

main64101-43021iTSS10..SED200808-201205

sub64101-43022

main64101-43060iTSS1#..DLX,SG,STD201206

main64101-43070iTSS10..SED201206

64125CBRACKET, UPPER BACK PANEL, RH

main64125-43010iYXS10..4H;YXS10..SED..4HC200108-200706

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

64193ACLIP(FOR BACK PANEL SILENCER PAD)

main64193-43020iTSS1#201206

64211ASTRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-43900iGXS10,LXS11,SXS11,YXS1#199512-200108

main64211-43901iGXS10200108-200210

64212ASTRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-43900iGXS10,LXS11,SXS11,YXS1#199512-200108

main64212-43901iGXS10200108-200206

64225BHANGER, REAR SEAT CUSHION SUPPORT

main64225-20020iGXS10,LXS11,SXS11,YXS1#199512-200108

64226DHANGER, REAR SEAT CUSHION SUPPORT, NO.2

main64226-20050iGXS10,LXS11,SXS11,YXS1#199512-200108

64247BBRACKET, ROOM PARTITION, RH

main64247-43010iGBS12200210

64312BBRACKET, PACKAGE TRAY, RH

main64312-43900iGXS10,LXS11,SXS11,YXS1#199512-200108

main64312-43901iGXS10200108-200210

64313BBRACKET, PACKAGE TRAY, LH

main64313-43900iGXS10,LXS11,SXS11,YXS1#199512-200105

main64313-43901iYXS10..4H;YXS10..SED..4HC200108-200706

64811GLASS, BACK WINDOW

main64811-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main64811-43040iGXS12,YXS10..SDX200108-200402

main64811-43050iGXS10200108-200210

main64811-43051iTSS10..SED200910-200912

main64811-43052iTSS10..SED201002-201205

main64811-43053iTSS10..SED201206

main64811-43070iYXS10..4H200406-200706

main64811-43071iTSS1#..DLX,SG,STD200910-201205

main64811-43072iTSS1#..DLX,SG,STD201206

6427843010SPRING, TORSION(FOR ROOM PARTITION BOARD)

main64278-43010

9014860020

main90148-60020

9017906288

main90179-06288

904670504522

main90467-0504522

9054107038

main90541-07038

91611G0612

main91611-G0612

91631J0612

main91631-J0612

91641C0612

main91641-C0612

40 parts on this diagram · 1 diagram in section
