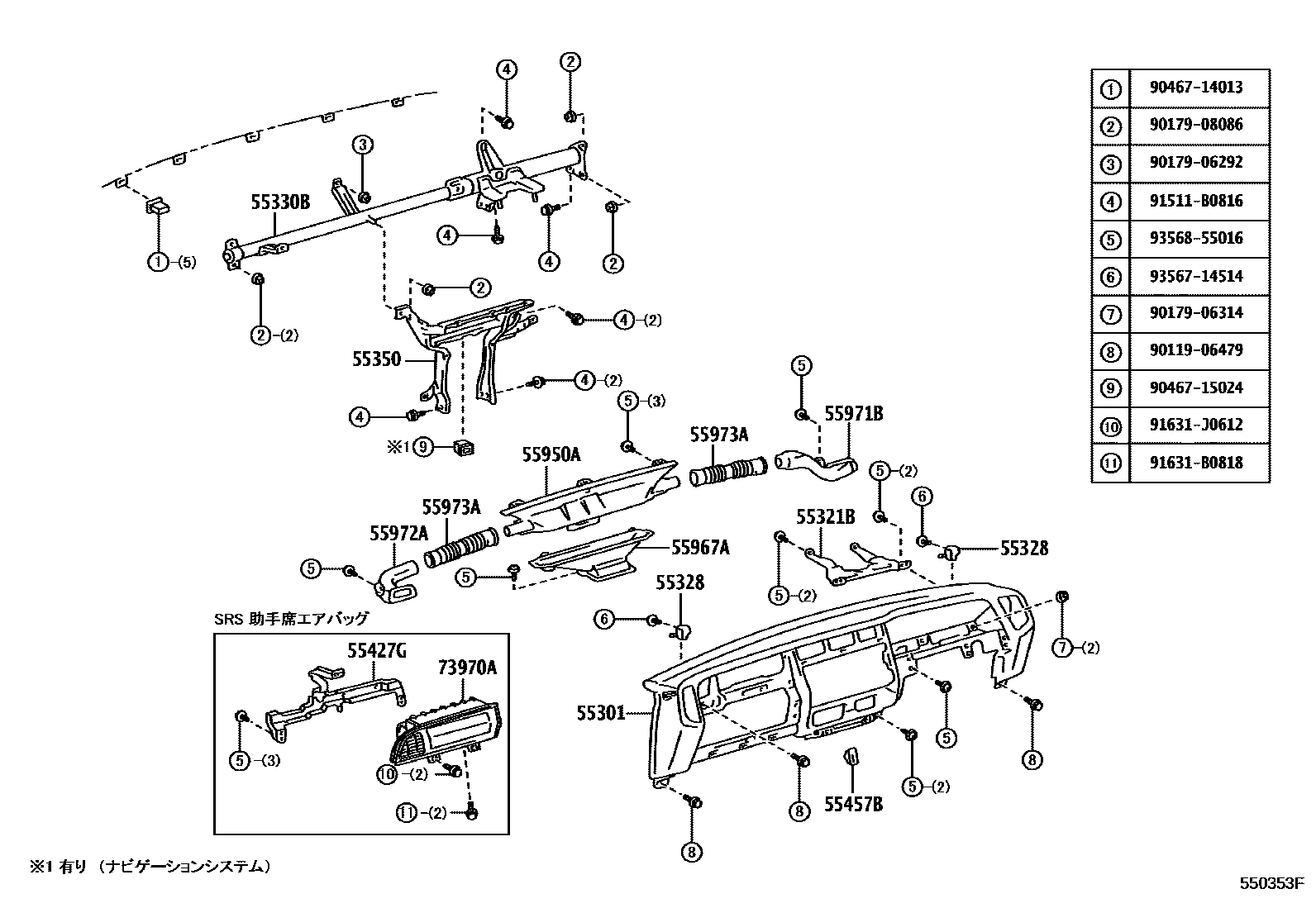

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-43010-B0iGXS10,LXS11,SXS11,YXS1#199512-200105

SHADOW GRAY,TRIM1#

sub55311-43012

main55311-43020-B1iGXS10,LXS11,SXS11,YXS11..DLX,SDX,SG199701-200105

SHADOW GRAY,TRIM1#

sub55311-43022

main55311-43040-B0iLXS11,SXS11,YXS11..DLX199701-200108

main55311-43041-B1iSXS13,YXS11..DLX200108-200406

sub55311-43042

main55311-43050-B0iGBS12,GXS1#,YXS10..SED200108-200406

DK.GRAY,TRIM1#

sub55311-43051

main55311-43060-B0iYXS1#..(CRW,TAX)..(DLX,STD)200105-200108

SHADOW GRAY,TRIM1#

main55311-43061-B1iYXS1#..(CRW,TAX)..(DLX,STD)200108-200406

DK.GRAY,TRIM1#

sub55311-43062

main55311-43070-B0iSXS11,YXS11..DLX,SG200105-200108

SHADOW GRAY,TRIM1#

main55311-43071-B1iSXS13,YXS11..DLX,SG200108-200406

DK.GRAY,TRIM1#

main55311-43080-B0iYXS10..4HC200406-200808

DK.GRAY,TRIM1#

sub55311-43081

main55311-43090-B0iSXS13;YXS11..SG200406-200808

main55311-43090-B0iTSS10,11..CRW,TAX200808-201305

DK.GRAY,TRIM1#

main55311-43091-B0iTSS10,11..CRW,TAX201305

DK.GRAY,TRIM1#

main55311-43100-B0iTSS11,13..DLX200406-201305

DK.GRAY,TRIM1#

sub55311-43101

main55311-43101-B0iTSS11,13..DLX201305

DK.GRAY,TRIM1#

main55311-43110-B0iGBS12,GXS12,YXS10..SED200406-201305

DK.GRAY,TRIM1#

sub55311-43111

main55311-43111-B0iTSS10..SED201305

DK.GRAY,TRIM1#

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-43010iGXS10,LXS11,SXS11,YXS1#199512-200808

55328PIN, INSTRUMENT PANEL, NO.1

main55328-14030iGXS10,LXS11,SXS11,YXS1#199512-200808

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

sub55330-43011

main55330-43011iYXS10..4H;YXS10..SED..4HC200108-200709

main55330-43020iLXS11,SXS11,YXS11..DLX199701-200108

sub55330-43021

main55330-43021iGBS12,YXS11..DLX,SDX200108-200708

main55330-43021iTSS13200709-200808

main55330-43030iTSS10,11..CRW,SED,TAX200808-201310

main55330-43031iTSS10,11..CRW,SED,TAX201310

main55330-43040iTSS11,13..DLX200808-201310

main55330-43041iTSS11,13..DLX201310

55350BRACE ASSY, INSTRUMENT PANEL

main55350-43010iLXS11,YXS1#..(CRW,TAX)..(DLX,STD)199512-200706

main55350-43020iSXS13199701-200707

main55350-43030iTSS10..SED200108-200708

55427GBRACKET, AIRBAG PASSENGER MOUNTING, NO.1

main55041-43010iLXS11,SXS11,YXS11..DLX199701-200808

main55041-43020iGBS12,GXS1#,YXS10..SED200108-200808

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-30070iTSS1#..DLX,SG,STD199604-200808

55950ANOZZLE ASSY, DEFROSTER

main55950-43010iTSS1#199512-200708

55967ANOZZLE, DEFROSTER, LOWER

main55967-43010iGXS10199512-200908

sub55967-43011

main55967-43011iTSS1#200909

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-43010iGXS10,LXS11,SXS11,YXS1#199512-200708

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-43010iGBS12,YXS1#..4FC,5F199512-200708

55973ADUCT, SIDE DEFROSTER NOZZLE, NO.3

main55973-43010iGXS10,LXS11,SXS11,YXS1#199512-200708

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-43010iLXS11,SXS11,YXS11..DLX199701-200108

main73970-43011iSXS13,YXS11..DLX200108-200808

main73970-43020-B0iGBS12,GXS12200108-200808

DK.GRAY,TRIM1#

9011906479

main90119-06479

9017906292

main90179-06292

9017906314

main90179-06314

9017908086

main90179-08086

9046714013

main90467-14013

9046715024

main90467-15024

91511B0816

main91511-B0816

91631B0818

main91631-B0818

91631J0612

main91631-J0612

9356714514

main93567-14514

9356855016

main93568-55016

24 parts on this diagram · 4 diagrams in section
