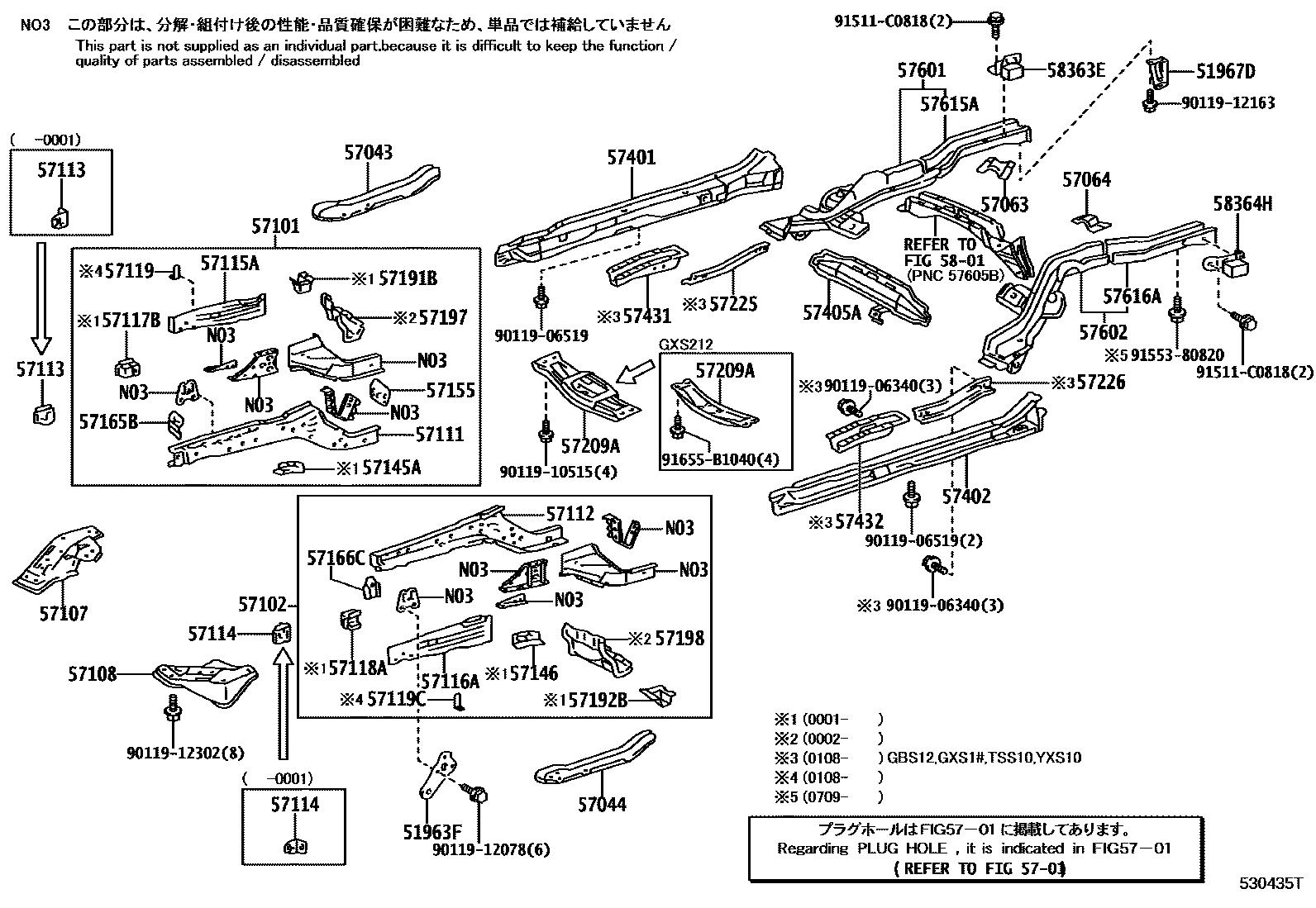

FLOOR SIDE MEMBER

51963FHOOK, TRANSPORT

main51963-22090×2iTSS1#200709

51967DHOOK SUB-ASSY,REAR

main51967-43010iYXS10..4HC200709-200808

5701

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main57043-43011iYXS10..4HC200709

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-22020iGXS10,LXS11,SXS11,YXS1#199512-200108

main57044-43010iGXS10200108-200210

57063BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR RH

main57063-43010iYXS10..4H;YXS10..SED..4HC200108-200706

main57063-43020iGBS12200210

57064BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR LH

main57064-43010iGXS10200108-200210

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-43901iGXS10,LXS11,SXS11,YXS1#..4FC,5F199512-200001

sub57101-43919

main57101-43902iGXS10,YXS10..4H,4HC199512-200001

sub57101-43920

main57101-43903iGXS10,SXS11,YXS1#..4FC,5F200001-200009

sub90119-06699

main57101-43904iGXS10,YXS10..4H,4HC200001-200009

sub90119-06699

main57101-43907iGXS10,YXS10..4H,4HC200009-200103

main57101-43908iGXS10,SXS11,YXS1#..4FC,5F200009-200103

main57101-43911iYXS10..4H,4HC200103-200108

main57101-43912iSXS11,YXS1#..4FC,5F200103-200108

main57101-43913iGXS10,YXS10..4H,4HC200108-200205

main57101-43914iGXS1#,YXS1#..(CRW,SED,TAX)..(4FC,5F)200108-200205

main57101-43915iSXS13,YXS11..DLX200108-200205

main57101-43916iYXS10..4H;YXS10..SED..4HC200205-200706

main57101-43917iGXS10..4FC200205-200210

main57101-43918iSXS13200205-200707

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-43900iGXS10,LXS11,SXS11,YXS1#199512-200001

sub57102-43907

main57102-43901iGXS10,SXS11,YXS1#200001-200009

sub90119-06699

main57102-43903iGXS10,SXS11,YXS1#200009-200108

main57102-43904iGXS1#,SXS13,YXS1#200108-200205

main57102-43905iGBS12200210-200808

main57102-43906iGXS1#,SXS13,YXS1#..(KYO,SED,TAX)..(DLX,SDX,SG,STD)200205-200808

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-43010iGXS10,LXS11,SXS11,YXS1#199512-200001

sub48824-43011

main57107-43020iGXS10,SXS11,YXS1#200001-200108

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-43010iGXS10,LXS11,SXS11,YXS1#199512-200001

sub48824-43011

main57108-43020iGXS10,SXS11,YXS1#200001-200108

57111MEMBER, FRONT SIDE, RH

main57111-43010iGXS10,LXS11,SXS11,YXS1#199512-200001

main57111-43011iGXS10,SXS11,YXS1#200001-200103

main57111-43012iSXS11,YXS1#200103-200108

main57111-43013iYXS10..4H;YXS10..SED..4HC200108-200706

main57111-43030iSXS13200108-200707

57112MEMBER, FRONT SIDE, LH

main57112-43010iGXS10,LXS11,SXS11,YXS1#199512-200001

main57112-43011iGXS10,SXS11,YXS1#200001-200108

main57112-43012iTSS1#200709

main57112-43020iGBS12200210

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-43010iGXS10,LXS11,SXS11,YXS1#199512-200001

main57113-43020iGXS10,SXS11,YXS1#200001-200108

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-43010iGXS10,LXS11,SXS11,YXS1#199512-200001

main57114-43020iYXS10..4H;YXS10..SED..4HC200108-200706

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-22120iGXS10,LXS11,SXS11,YXS1#199512-200108

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-22120iGXS10,LXS11,SXS11,YXS1#199512-200108

main57116-43010iGBS12200210

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-43020iGXS10,SXS11,YXS1#200001-200108

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-43020iYXS10..4HC200709

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-22040iGXS10200108-200210

57119CPLATE, FRONT SIDE MEMBER, FRONT

main57119-22040iGXS10200108-200210

57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main57145-43010iGXS10,SXS11,YXS1#200001-200108

main57145-43020iYXS10..4H;YXS10..SED..4HC200108-200706

57146PLATE, FRONT SIDE MEMBER, CENTER LH

main57146-43010iGXS10,SXS11,YXS1#200001-200108

main57146-43020iGXS10200108-200210

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-43010iGXS10,YXS10..4H,4HC199512-200108

57165BREINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH

main57165-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

57166CREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH

main57166-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

57191BREINFORCEMENT, FRONT SIDE MEMBER, OUTER RH

main57191-43010iGXS10,SXS11,YXS1#200001-200108

57192BREINFORCEMENT, FRONT SIDE MEMBER, OUTER LH

main57192-43010iYXS10..4HC200709

57197BOX, TORQUE, FRONT RH

main57197-43011iGXS10,SXS11,YXS1#200002-200009

sub90119-06699

main57197-43012iSXS13200108-200707

57198BOX, TORQUE, FRONT LH

main57198-43011iGXS10,SXS11,YXS1#200002-200009

sub90119-06699

main57198-43012iGXS10200108-200210

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-22130iYXS1#..4FC200108

main57209-22160iGXS10200110-200210

main57209-43010iTSS11,13..5F200709

main57209-43020iYXS10..4H199512-200108

main57255-22190iSXS11;LXS11..4FC199512-200108

main57255-22240iLXS11..5F199604-199908

main57255-43020iGXS12200108-200708

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-43010iYXS10..SED..4HC200108-200706

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-43010iTSS10..SED200808

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-43010iGXS10,YXS10199512-200001

main57401-43020iLXS11,SXS11,YXS11199512-199905

main57401-43030iGXS10,YXS10199701-200001

main57401-43040iLXS11,SXS11,YXS11199701-199905

main57401-43051iGXS10,YXS10200001-200104

main57401-43052iYXS10200104-200108

main57401-43054iYXS10..CRW..4HC200108-200706

main57401-43060iLXS11199905-199908

main57401-43061iSXS11,YXS11200001-200104

main57401-43062iSXS11,YXS11200104-200108

main57401-43064iYXS11..DLX200108-200709

main57401-43071iGXS10,YXS10200001-200104

main57401-43072iYXS10200104-200108

main57401-43074iYXS10..4H;YXS10..4HC..SDX200108-200706

main57401-43080iLXS11199905-199908

main57401-43081iSXS11,YXS11200001-200104

main57401-43082iSXS11,YXS11200104-200108

main57401-43084iYXS11..DLX200108

main57401-43100iTSS10201009

main57401-43110iTSS11,13201009

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-43010iGXS10,YXS10199512-199701

main57402-43011iGXS10,YXS10199701-200001

main57402-43020iLXS11,SXS11,YXS11199512-199701

main57402-43021iLXS11,SXS11,YXS11199701-199905

main57402-43030iSXS11,YXS11..DLX199905-200001

main57402-43041iGXS10,YXS10200001-200104

main57402-43042iYXS10200104-200108

main57402-43044iYXS10..CRW..4FC200108

main57402-43050iLXS11199905-199908

main57402-43051iSXS11,YXS11200001-200104

main57402-43052iSXS11,YXS11200104-200108

main57402-43054iYXS11..DLX200108-200709

main57402-43060iLXS11..DLX199905-199908

main57402-43061iSXS11,YXS11..DLX200001-200104

main57402-43062iSXS11,YXS11..DLX200104-200108

main57402-43064iYXS11..DLX200108

main57402-43070iYXS10..4H,4HC200001-200104

main57402-43071iYXS10..4H,4HC200104-200108

main57402-43073iYXS10..CRW..4HC200108-200706

main57402-43081iTSS10200808-201006

main57402-43091iYXS10..CRW..4HC200108-200706

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-43010iSXS13,YXS1#..DLX,SG,STD200108-200205

main57405-43011iYXS10..CRW;GBS12,SXS13,YXS11200205-200703

main57405-43020iGXS1#,YXS10..SDX200108-200205

main57405-43021iGXS1#,YXS10..SED200205-200703

main57405-43030iYXS10..4HC200709-200808

main57405-43040iGXS12,YXS10..SED200704-200808

main57405-43070iTSS1#201206

main57405-43080iTSS10,11..(CRW,TAX)..(DLX,STD)201206

57431REINFORCEMENT, CENTER FLOOR, NO.1 RH

main57406-43010iGXS10200108-200210

57432PATCH, STEP PANEL UNDER, LH

main57409-43010iGXS10200108-200210

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-43010iGXS10,LXS11,SXS11,YXS1#199512-199701

main57601-43011iGXS10,LXS11,SXS11,YXS1#199701-200001

main57601-43012iGXS10,SXS11,YXS1#200001-200108

main57601-43013iSXS13,YXS1#..DLX,SG,STD200203-200208

main57601-43014iSXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD)200208-200804

main57601-43015iYXS1#..DLX,SG,STD200805-200808

main57601-43020iGXS1#,YXS10..SDX200108-200203

main57601-43021iGXS1#,YXS10..SDX200203-200208

main57601-43022iGBS12,GXS1#,YXS10..SED200208-200804

main57601-43023iGBS12,YXS10..SED200805-200808

main57601-43030iTSS1#..DLX,SG,STD200805-201310

main57601-43031iTSS1#..DLX,SG,STD201310

main57601-43040iTSS10..SED200808-201310

main57601-43041iTSS10..SED201310

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-43010iGXS10,LXS11,SXS11,YXS1#199512-200001

main57602-43011iSXS13,YXS1#..DLX,SG,STD200108-200208

main57602-43012iSXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD)200208-200804

main57602-43013iYXS1#..DLX,SG,STD200805-200808

main57602-43020iGXS1#,YXS10..SDX200108-200208

main57602-43021iGBS12,GXS1#,YXS10..SED200208-200804

main57602-43022iGBS12,YXS10..SED200805-200808

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-43900iGXS10,LXS11,SXS11,YXS1#199512-200001

main57615-43901iGXS10,SXS11,YXS1#200001-200108

main57615-43902iGXS10200203-200210

main57615-43903iTSS1#200805

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-43900iGXS10,LXS11,SXS11,YXS1#199512-200001

main57616-43901iGXS10,SXS11,YXS1#200001-200108

5801

58363EBALANCER, REAR FLOOR, NO.1

main58363-43010iSXS11,YXS1#..ATM200001-200108

58364HBALANCER, REAR FLOOR, NO.2

main58364-43010iSXS11,YXS1#..ATM200001-200108

9011906340

main90119-06340

9011906519

main90119-06519

9011910515

main90119-10515

9011912078

main90119-12078

9011912163

main90119-12163

9011912302

main90119-12302

91511C0818

main91511-C0818

9155380820

main91553-80820

91655B1040

main91655-B1040

54 parts on this diagram · 1 diagram in section
