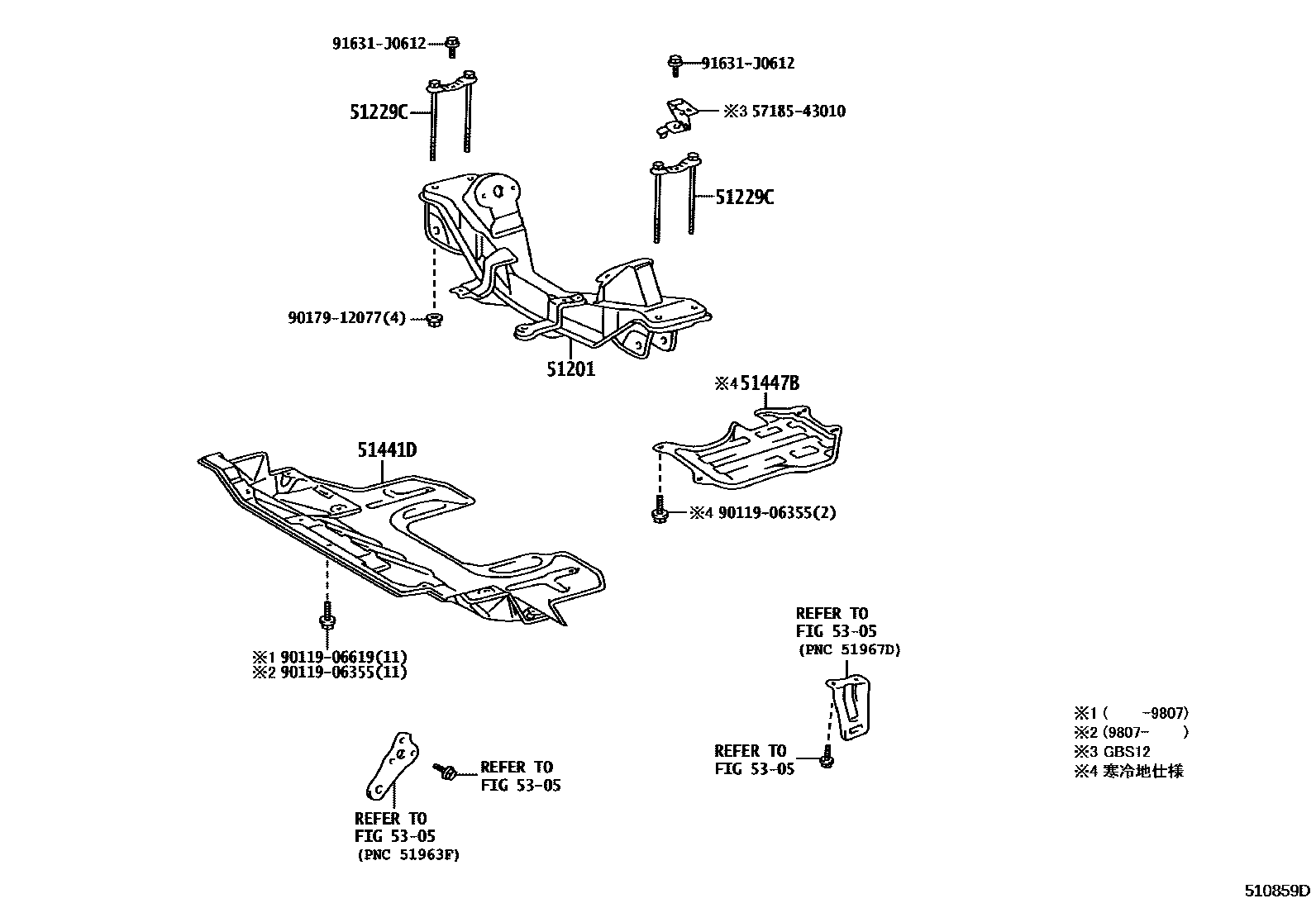

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-43010iYXS1#199512-200610

sub51201-43011

main51201-43011iYXS1#200611-200703

sub51201-43012

main51201-43012iYXS1#..4FC,5F;YXS10..CRW..4HC200704-200808

main51201-43013iTSS1#200808-201310

main51201-43020iGXS10199512-200210

main51201-43030iLXS11199512-199908

main51201-43040iSXS13199604-200707

main51201-43050iGXS12200108-200210

main51201-43060iGBS12200210-200708

main51201-43070iTSS1#201310

51229CPLATE, SUSPENSION MEMBER SET

main51229-22050iGXS10,LXS11,SXS11,YXS1#199512-200708

51441DCOVER, ENGINE UNDER

main51441-43010iGXS12199512-200708

main51441-43020iLXS11199512-199908

main51441-43030iGBS12200210

main51441-43040iTSS1#200709

51447BPROTECTOR, OIL PAN

main51447-22040iGXS10199512-200708

main51447-22050iLXS11199512-199908

5305

5718543010REINFORSEMENT, FRONT SIDE MEMBER, REAR NO.1 INNER RH

main57185-43010

9011906355

main90119-06355

9011906619

main90119-06619

9017912077

main90179-12077

91631J0612

main91631-J0612

10 parts on this diagram · 1 diagram in section
