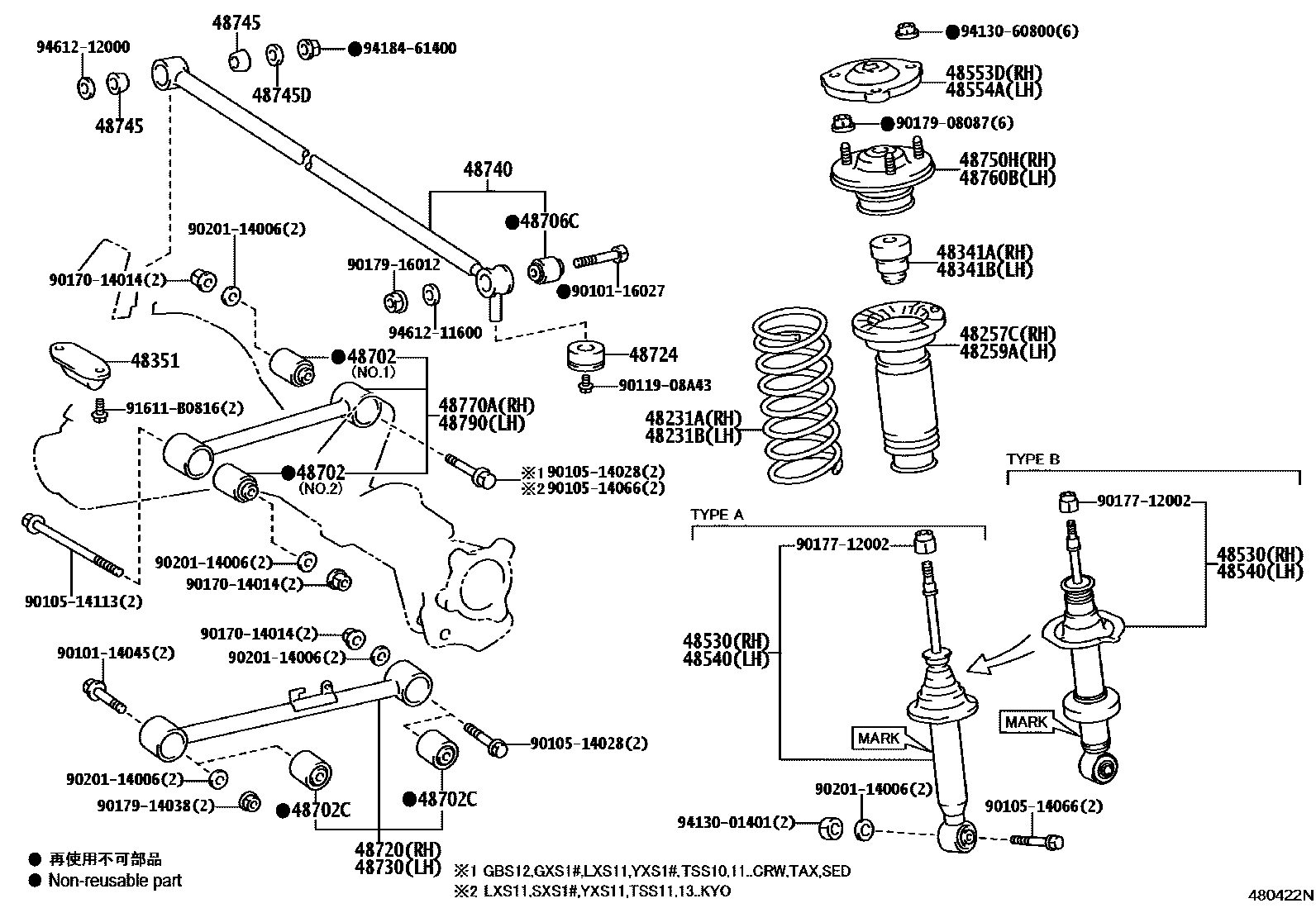

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48231ASPRING, COIL, REAR RH

main48231-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-200001

sub48231-43011

main48231-43011iYXS10..CRW..4HC200001-200706

main48231-43020iYXS11..DLX199604-200707

main48231-43030iGXS12200108-200708

main48231-43040iGBS12200210

main48231-43060iTSS10,11..CRW,TAX200808

main48231-43070iTSS11,13..DLX200709

main48231-43080iTSS10..SED200808

48231BSPRING, COIL, REAR LH

main48231-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-200001

sub48231-43011

main48231-43011iYXS10..4HC200001-200706

main48231-43020iLXS11,SXS11,YXS11..DLX199604-200707

main48231-43030iGXS12200108-200708

main48231-43040iGBS12200210

main48231-43060iTSS10,11..CRW,TAX200808

main48231-43070iTSS11,13..DLX200709

main48231-43080iTSS10..SED200808

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-22060iYXS10..4H;YXS10..SED..4HC199512-200708

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-22060iGXS10,LXS11,SXS11,YXS1#199512-200708

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-22130iGXS10,LXS11,SXS11,YXS1#199512-200704

sub48341-22131

main48341-22131iYXS10..CRW..4HC200705-200904

main48341-43020iTSS1#200904

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-22130iGXS10,LXS11,SXS11,YXS1#199512-200704

sub48341-22131

main48341-22131iYXS10..CRW..4HC200705-200904

main48341-43020iTSS1#200904

48351BUMPER, DIFFERENTIAL CARRIER

main48351-20020iGXS10,LXS11,SXS11,YXS1#199512-200708

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-49075iGXS10,LXS11,SXS11,YXS1#199512-199701

sub48530-29118

main48530-49076iGXS10,LXS11,SXS11,YXS1#199701-199801

main48530-49077iYXS10..4HC199801-201801

main48530-49255iGXS1#,YXS10..SED200108-200303

main48530-49265iGBS12200210-200303

main48530-49345iTSS10..SED200303-201003

main48530-49346iTSS10..SED201003-201801

main48530-49515iGBS12200303-200808

main48530-49885iTSS1#..DLX,SG,STD200801-201801

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-49075iGXS10,LXS11,SXS11,YXS1#199512-199701

sub48530-29118

main48530-49076iGXS10,LXS11,SXS11,YXS1#199701-199801

main48530-49077iTSS13199801-201801

main48530-49255iGXS1#,YXS10..SED200108-200303

main48530-49265iGBS12200210-200303

main48530-49345iTSS10..SED200303-201003

main48530-49346iTSS10..SED201003-201801

main48530-49515iGBS12200303-200808

main48530-49885iYXS1#..DLX,SG,STD200801-201801

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-22030iGBS12,YXS1#..4FC,5F199512-201001

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-22030iGXS10,LXS11,SXS11,YXS1#199512-201001

48702BUSH SUB-ASSY, UPPER CONTROL ARM

main48702-22330iLXS11,SXS11,YXS11..DLX199604-200807

sub48702-22390

main48702-22390iTSS11,13..DLX200808

main48702-43010iYXS10..4H;YXS10..SED..4HC200108-200708

main48702-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-200108

main48702-43010iLXS11,SXS11,YXS11..DLX199604-200707

48702CBUSH SUB-ASSY, LOWER CONTROL ARM

main48702-22370iYXS10..CRW..4HC199512-200708

48706CBUSH SUB-ASSY, LATERAL CONTROL ROD

main48706-22040iGXS10,LXS11,SXS11,YXS1#199512-200708

48720ARM ASSY, LOWER CONTROL, RH

main48720-22210iSXS13199604-200707

main48720-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-200708

48724DAMPER, LWR CONTROL ARM DYNAMIC

main48724-43010iGXS10,LXS11,SXS11,YXS1#199601-200708

48730ARM ASSY, LOWER CONTROL, LH

main48720-22210iLXS11,SXS11,YXS11..DLX199604-200707

main48720-43010iYXS10..CRW..4HC199512-200708

48740ROD ASSY, REAR LATERAL CONTROL

main48740-22070iGXS10,LXS11,YXS1#199512-199601

main48740-43010iTSS1#199601-200708

48745BUSH, LATERAL CONTROL ROD

main90385-20006iYXS10..4H;YXS10..SED..4HC199512-200708

48745DRETAINER, CUSHION(FOR LATERAL CONTROL ROD)

main90948-02053iTSS10..SED200108-201801

main94614-11400iYXS10..4HC200108-201801

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-22030iGXS10,LXS11,SXS11,YXS1#199512-199608

sub48750-22031

main48750-22031iGXS10,LXS11,SXS11,YXS1#199608-200904

main48750-43030iTSS1#200904

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-22040iGXS10,LXS11,SXS11,YXS1#199512-199608

sub48750-22041

main48750-22041iYXS10..CRW..4HC199608-200904

main48760-43010iTSS1#200904

48770AARM ASSY, UPPER CONTROL, REAR RH

main48710-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-200708

main48710-43020iYXS11..DLX199604-200707

main48710-43040iTSS11..5F..STD200808

48790ARM ASSY, UPPER CONTROL, REAR LH

main48710-43010iGXS10199512-200708

main48710-43020iSXS13199604-200707

main48710-43040iTSS11..5F..STD200808

9010114045

main90101-14045

9010116027

main90101-16027

9010514028

main90105-14028

9010514066

main90105-14066

9010514113

main90105-14113

9011908A43

main90119-08A43

9017014014

main90170-14014

9017712002

main90177-12002

9017908087

main90179-08087

9017914038

main90179-14038

9017916012

main90179-16012

9020114006

main90201-14006

91611B0816

main91611-B0816

9413001401

main94130-01401

9413060800

main94130-60800

9418461400

main94184-61400

9461211600

main94612-11600

9461212000

main94612-12000

42 parts on this diagram · 2 diagrams in section
