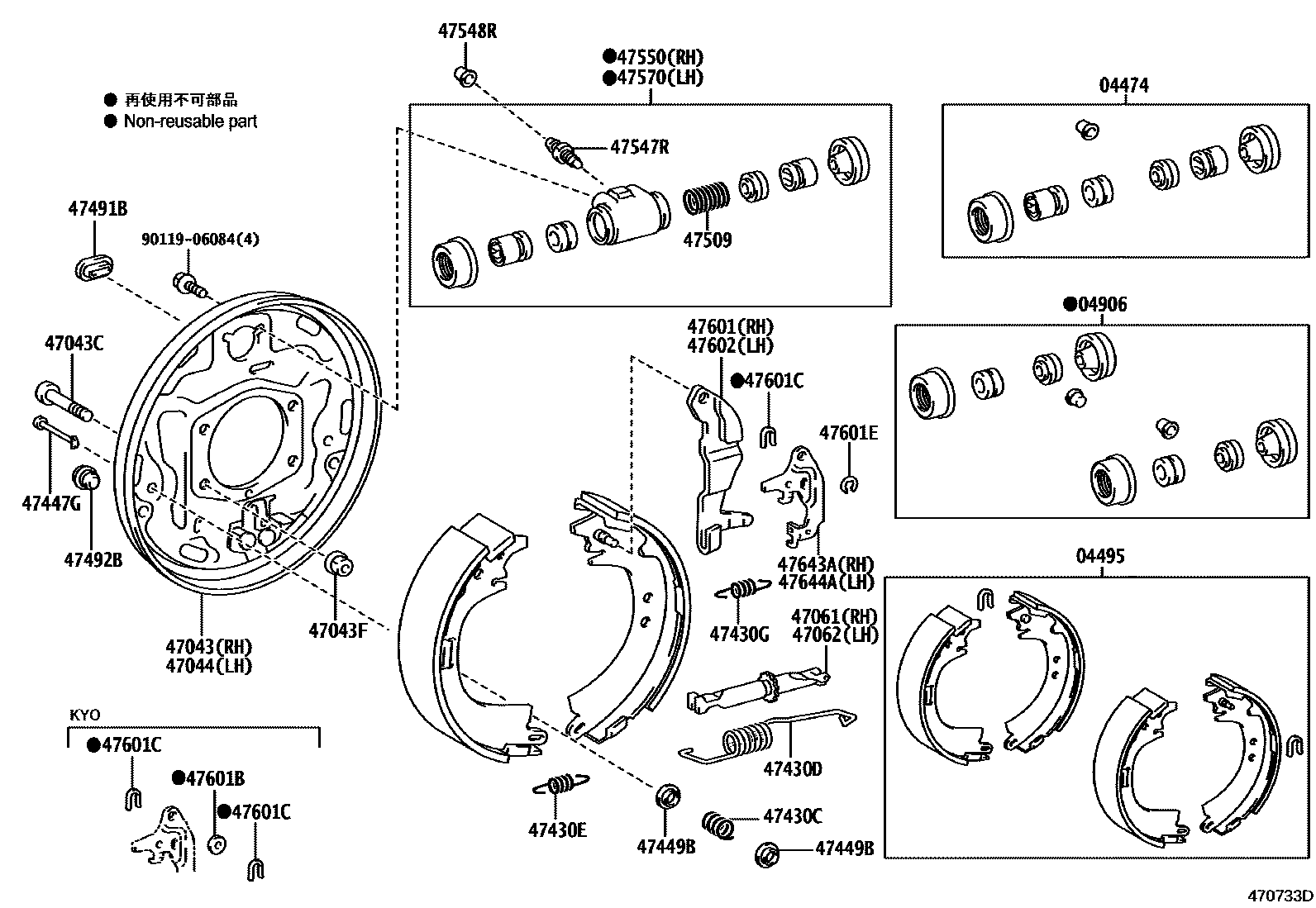

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0003 1 0004 1 0005 1 0006 1

04474CYLINDER KIT, REAR WHEEL

main04474-30060×2iGXS10,LXS11,YXS1#..CRW,TAX199805-200108

main04474-35070×2iGXS10,LXS11,YXS1#..CRW,TAX199701-199805

main04474-43010×2iLXS11,SXS11,YXS11..DLX199701-200108

main04474-43020×2iYXS10..4HC200709

04495SHOE KIT, REAR BRAKE

main04495-30090iGXS10,LXS11,YXS1#..CRW,TAX199701-199708

main04495-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-199607

main04495-43020iLXS11,SXS11,YXS11..DLX199604-200108

main04495-43040iGXS10,LXS11,YXS1#..CRW,TAX199607-199701

main04495-43060iGXS10,LXS11,YXS1#..CRW,TAX199708-200108

main04495-43070iGBS12,YXS1#..(CRW,SED,TAX)..(4FC,5F)200108

main04495-43100iYXS11..DLX200108

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30060iGXS10,LXS11,YXS1#..CRW,TAX199805-200108

main04906-35140iGXS10,LXS11,YXS1#..CRW,TAX199701-199805

main04906-43010iTSS13200709-200808

main04906-43040iYXS10..CRW..4HC200108-200706

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-22070iLXS11,SXS11,YXS11..DLX199604-200108

main47043-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

main47043-43020iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

main47043-43030iGXS10200108-200210

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-12020×8iSXS13,YXS11..DLX200108-200808

main42184-22011×8iLXS11,SXS11,YXS11..DLX199604-200108

main42184-28010×8iYXS10..CRW..(4FC,4H);GBS12,GXS1#,YXS1#..SED,TAX200108-200808

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10150×8iTSS1#200808

main94181-11000×8iLXS11,SXS11,YXS11..DLX199604-200108

main94184-01001×8iTSS13200709-200808

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-22070iYXS11..DLX200108

main47044-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

main47044-43020iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

main47044-43030iYXS10..CRW..4HC200108-200706

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-43010iLXS11,SXS11,YXS11..DLX199604-200108

main47061-43020iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

main47062-30030iGXS10,LXS11,YXS1#..CRW,TAX199701-199901

main47062-30040iGXS10,LXS11,YXS1#..CRW,TAX199901-200108

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-30030iGXS10,LXS11,YXS1#..CRW,TAX199701-199901

main47061-30040iGXS10,LXS11,YXS1#..CRW,TAX199901-200108

main47062-43010iLXS11,SXS11,YXS11..DLX199604-200108

main47062-43020iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iLXS11,SXS11,YXS11..DLX199604-200108

main90501-20604×4iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

main90501-20756×4iGXS10,LXS11,YXS1#..CRW,TAX199701-199707

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23003×2iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

main90506-23375×2iLXS11,SXS11,YXS11..DLX199604-200108

main90905-06039iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

main90905-06040iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-20005×2iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

main90506-23346×2iLXS11,SXS11,YXS11..DLX199607-200108

main90506-26026×2iGXS10,LXS11,YXS1#..CRW,TAX199607-199701

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iLXS11,SXS11,YXS11..DLX199701-200108

main90506-12480×2iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iGXS10,LXS11,SXS11,YXS1#199512-199701

main47447-30020×4iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iGXS10,LXS11,SXS11,YXS1#199512-200108

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iGXS10,LXS11,SXS11,YXS1#199512-200108

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×4iGXS10,LXS11,SXS11,YXS1#199512-200108

47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON

main47509-35020×2iGXS10,LXS11,YXS1#..CRW,TAX199805-200108

main90029-60009×2iGXS10,LXS11,YXS1#..CRW,TAX199701-199805

main90029-60012×2iGXS10,LXS11,SXS11,YXS1#199512-199701

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

main47547-26010×2iLXS11,SXS11,YXS11..DLX199701-200108

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iYXS10..CRW..4HC200108-200706

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-30100iGXS10,LXS11,YXS1#..CRW,TAX199805-200108

main47550-35180iGXS10,LXS11,YXS1#..CRW,TAX199701-199805

main47550-43010iLXS11,SXS11,YXS11..DLX199701-200108

main47550-43090iGXS12200108-200708

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-30100iGXS10,LXS11,YXS1#..CRW,TAX199805-200108

main47550-35180iGXS10,LXS11,YXS1#..CRW,TAX199701-199805

main47550-43010iYXS11..DLX200108

main47550-43090iYXS10..4HC200709

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iYXS11..DLX200108

main47601-28010iGXS10200108-200210

main47611-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iTSS13200709-200808

main90564-08151iSXS13200108-200707

main90564-08152iTSS13200709-200808

main90564-08172iYXS11..DLX200108

main90564-08173iLXS11,SXS11,YXS11..DLX199604-200108

main90564-08174iSXS13200108-200707

main90564-09001iYXS10..CRW..4HC200108-200706

main90564-09002iYXS10..CRW..4HC200108-200706

main90564-09003iTSS1#200808

main90564-09184iYXS10..CRW..4HC200108-200706

main90564-09185iYXS10..4HC200709

main90564-09186iYXS10..CRW..4HC200108-200706

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iYXS11..DLX200108

main90213-07010×2iYXS10..CRW..4HC200108-200706

47601ERING, E(FOR REAR BRAKE)

main90213-06013×2iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

main96160-00500×2iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iLXS11,SXS11,YXS11..DLX199604-200108

main47602-28010iYXS10..CRW..4HC200108-200706

main47612-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-20020iSXS13200108-200707

main47643-33010iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

main47643-43010iYXS10..4HC200709

main47644-30010iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-30010iGXS10,LXS11,YXS1#..CRW,TAX199701-200108

main47644-20020iTSS13200709-200808

main47644-33010iGXS10,LXS11,YXS1#..CRW,TAX199512-199701

main47644-43010iYXS10..CRW..4HC200108-200706

9011906084

main90119-06084

30 parts on this diagram · 5 diagrams in section
