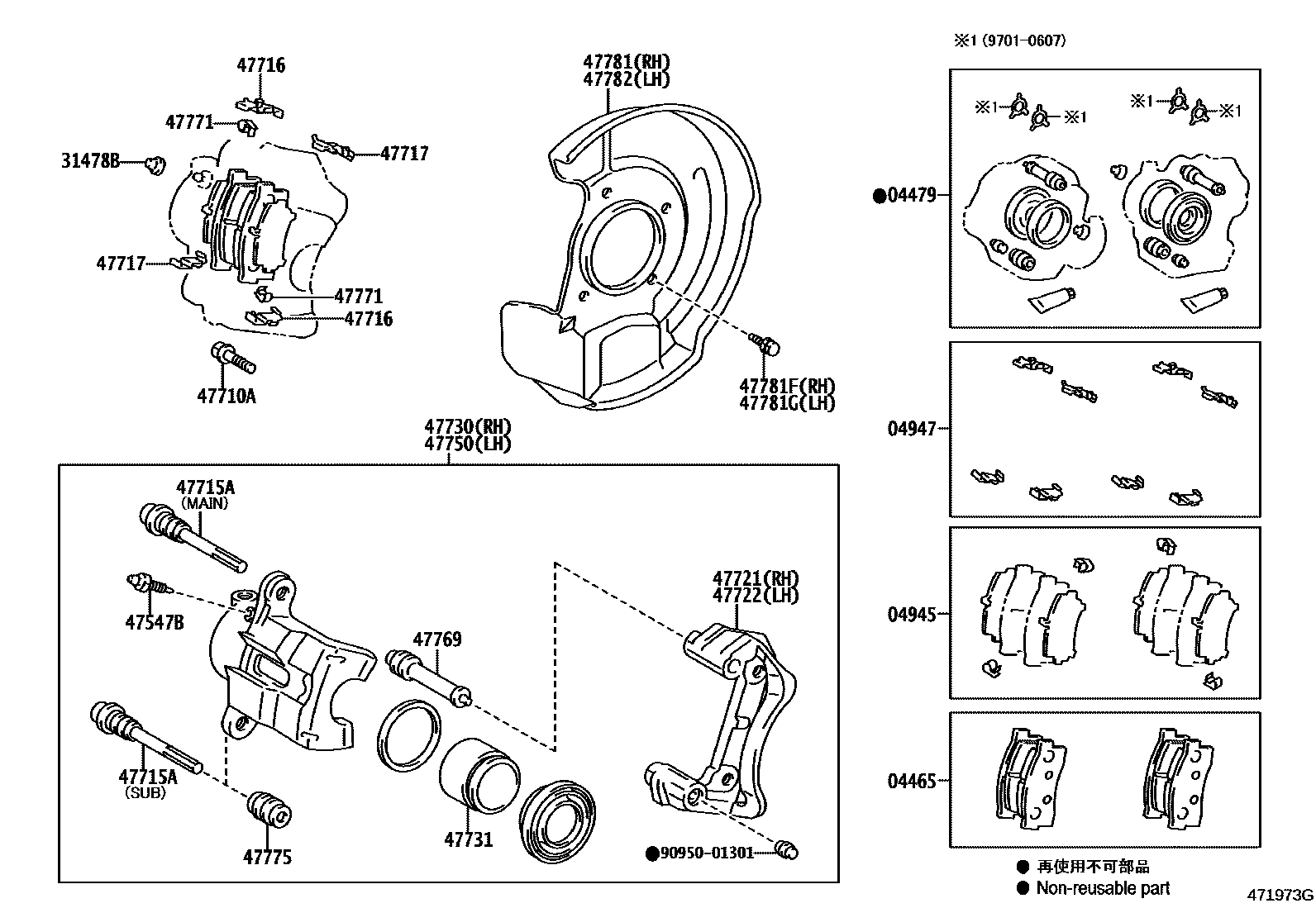

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-43010iGXS10,LXS11,SXS11,YXS1#199512-199701

main04465-43020iGXS10200108-200210

sub04465-43040

main04465-43030iGXS12200108-200708

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-43010iYXS10..4HC200709

main04479-22021iGXS10,LXS11,SXS11,YXS1#199512-199701

main04479-35031iGXS10,LXS11,SXS11,YXS1#199701-200108

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main04945-43020iGXS12200108-200708

04947FITTING KIT, DISC BRAKE, FRONT

main04947-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iYXS10..4HC200709

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020×2iGXS10200108-200210

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058×4iGXS10,LXS11,SXS11,YXS1#199512-200108

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-43010×2iYXS10..4H;YXS10..SED..4HC200108-200706

main47715-43020×2iYXS10..4HC200709

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-43010×4iYXS10..4H;YXS10..SED..4HC200108-200706

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-43010×4iGXS10200108-200210

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22090iGXS10,LXS11,SXS11,YXS1#199512-200108

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22070iGXS10,LXS11,SXS11,YXS1#199512-200108

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-43010iGXS10,LXS11,SXS11,YXS1#199512-199701

main47730-43020iGXS12200108-200708

47731PISTON, FRONT DISC BRAKE

main47731-04030×2iYXS10..4HC200709

main47731-35020×2iGXS10,LXS11,SXS11,YXS1#199512-199701

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-43010iGXS10,LXS11,SXS11,YXS1#199512-199701

main47750-43020iGXS10,LXS11,SXS11,YXS1#199701-200108

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-22010×2iGXS10,LXS11,SXS11,YXS1#199512-199701

main47769-35010×2iGXS10200108-200210

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22030×4iGXS10200108-200210

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-22010×2iGXS10,LXS11,SXS11,YXS1#199512-199701

main47775-35010×2iGXS10,LXS11,SXS11,YXS1#199701-200108

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-22030iGBS12;YXS10..SAL200210-200808

main47781-22130iSXS13,YXS1#..DLX,SG,STD200108-200402

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main91611-60814×3iTSS1#200709

main91612-60814×3iGXS10,LXS11,SXS11,YXS1#199701-200108

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main91611-60814×3iYXS10..CRW..(4FC,4H);GXS1#,SXS13,YXS1#..(KYO,SED,TAX)..(DLX,SDX,SG,STD)200108-200808

main91612-60814×4iGXS10,LXS11,SXS11,YXS1#199512-200108

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-22030iGXS10,LXS11,SXS11,YXS1#199701-200108

main47782-22130iSXS13,YXS1#..DLX,SG,STD200108-200402

9095001301

main90950-01301

23 parts on this diagram · 1 diagram in section
