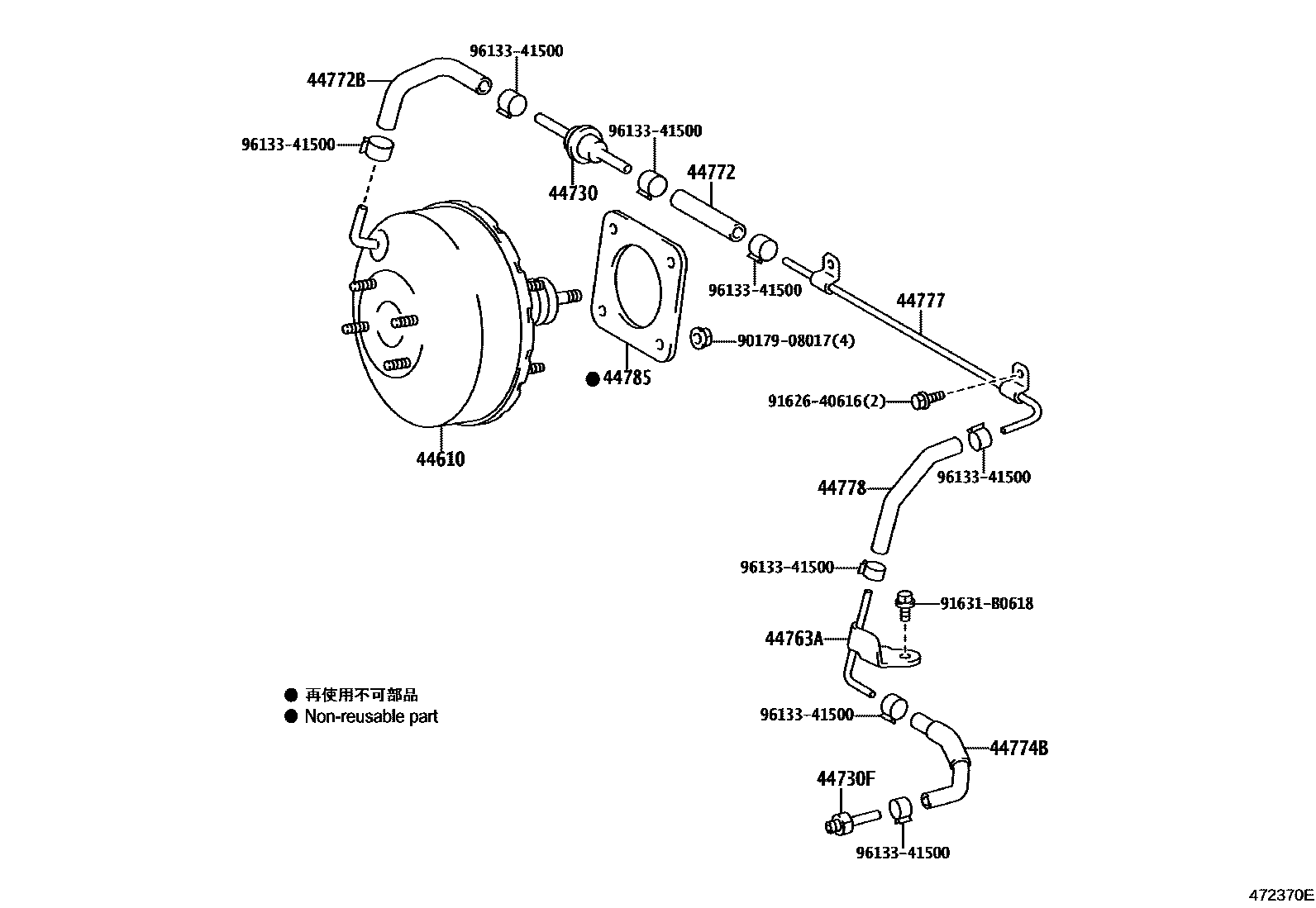

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

44610BOOSTER ASSY, BRAKE

main44610-22610iLXS11,SXS11,YXS11..DLX199604-199701

*42

main44610-22611iSXS13200206-200707

*42

main44610-43010iSXS11,YXS11..DLX199604-199801

main44610-43011iSXS11,YXS11..DLX199801-200108

main44610-43020iLXS11..DLX199604-199701

main44610-43021iLXS11..DLX199701-199801

main44610-43022iLXS11..DLX199801-199908

main44610-43030iGXS10,YXS1#..CRW,TAX199701-199801

main44610-43031iGXS10,YXS1#..CRW,TAX199801-200108

main44610-43040iLXS11..TAX199701-199801

main44610-43041iLXS11..TAX199801-199908

main44610-43050iSXS11,YXS11..DLX199701-199801

main44610-43051iSXS11,YXS11..DLX199801-200108

main44610-43060iLXS11..DLX199701-199801

main44610-43061iLXS11..DLX199801-199908

main44610-43090iGXS12200108-200708

main44610-43100iYXS10..SED..4HC200108-200706

main44610-43110iYXS10..SED..4HC200402-200706

*355

main44610-43120iYXS1#..CRW,TAX200108-200402

main44610-43130iYXS1#..(CRW,TAX)..ATM..(DLX,STD)200108-200401

*355

main44610-43140iGBS12200210

main44610-43150iTSS11..5F..STD200808-201310

main44610-43160iTSS10,11..(CRW,SED,TAX)..4FC200808-201310

main44610-43170iTSS11,13..DLX200709-201310

main44610-43180iTSS11,13..DLX201310

main44610-43190iTSS10,11..(CRW,SED,TAX)..4FC201310

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iGXS10,YXS1#..CRW,TAX199512-200108

main44730-22130iLXS11,SXS11,YXS11..DLX199604-200108

main44730-60050iLXS11..TAX199512-199908

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51237iYXS10..4HC200709

main90404-51319iSXS13200108-200707

main90405-09174iSXS11199604-200108

44763TUBE, BOOSTER VACUUM

main44763-43010iYXS11..DLX199604-200108

main44763-43020iSXS11199604-200108

main44763-43060iSXS13200108-200707

main44763-43070iYXS10..4H;YXS10..SED..4HC200108-200706

main44763-43080iTSS10,11..CRW,SED,TAX200808

main44763-43100iTSS11..DLX200808

main44763-43110iTSS13200709

44763ATUBE, HOSE TO HOSE, NO.1

main44763-22230iLXS11..DLX199604-199701

main44763-43030iYXS11..DLX200108

main44763-43040iLXS11..DLX199701-199908

main44763-43050iGXS10200110-200210

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-22300iGXS10,SXS11,YXS1#199512-200108

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-43010iGXS10,YXS1#..CRW,TAX199512-200108

main44772-43020iSXS11,YXS11..DLX199604-200108

main44772-43040iSXS11,YXS11..DLX199701-200108

44774HOSE, UNION TO CONNECTOR TUBE

main44774-43030iSXS11199604-200108

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-43040iGXS10200110-200210

main44774-43050iYXS10..4H;YXS10..SED..4HC200108-200706

main44774-43070iGBS12200108

main44774-43080iSXS13200108-200707

main44774-43090iTSS10,11200808

main44774-43100iTSS13200709

44777CONNECTOR, VACUUM HOSE, NO.1

main44770-43010iYXS10..4H;YXS10..SED..4HC200108-200706

main44770-43020iGBS12200108

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-43010iGXS10200110-200210

main44778-43020iYXS10..4H;YXS10..SED..4HC200108-200706

44785GASKET, BRAKE BOOSTER

main44785-32010iYXS10..4HC200709

9017908017

main90179-08017

9162640616

main91626-40616

91631B0618

main91631-B0618

9613341500

main96133-41500

16 parts on this diagram · 11 diagrams in section
