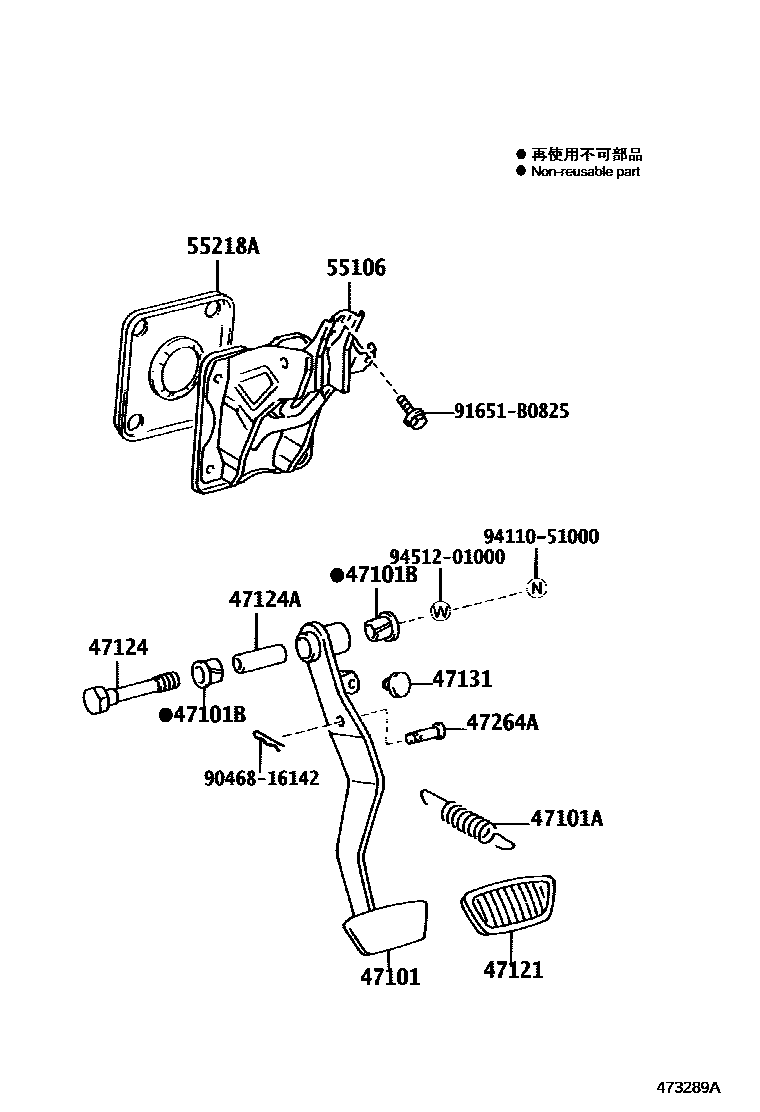

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47101-43010iLXS11,SXS11,YXS11..5F..DLX199604-200707

main47101-43010iTSS11..5F..STD199512-200706

main47101-43020iGBS12,YXS1#..(CRW,SED,TAX)..4FC199604-200707

main47101-43020iGXS10,LXS11,YXS1#..(CRW,TAX)..ATM199512-200708

main47101-43030iYXS11..DLX200108-200707

main47101-43030iLXS11,SXS11,YXS11..DLX199604-200108

*42

main47101-43040iTSS11,13..DLX200709

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-09059iTSS11,13..DLX200108-200707

main90506-09059iLXS11,SXS11,YXS11..DLX199609-200108

*42

main90507-13004iTSS10,11..CRW,SED,TAX199512-200708

main90507-13004iSXS13199604-200707

main90507-14018iLXS11,SXS11,YXS11..DLX199604-199609

*42

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iTSS10,11..CRW,SED,TAX199512-200708

main90386-13015iLXS11,SXS11,YXS11..DLX199604-200707

47121PAD, BRAKE PEDAL

main31321-14020iYXS1#..(CRW,TAX)..MTM199512-200706

main31321-14020iSXS13..5F199604-200707

main47121-14010iSXS13..5F200108-200707

main47121-14010iGXS10,LXS11,YXS1#..(CRW,TAX)..ATM199512-200708

main47121-14010iLXS11,SXS11,YXS11..4FC..DLX199604-200108

*42

main47121-14010iTSS11,13..4FC..DLX200709

main47121-50020iTSS11,13..DLX200709

47124SHAFT, BRAKE PEDAL

main90101-10039iLXS11,SXS11,YXS11..DLX199604-200707

main90101-10039iGXS10199512-200708

main90101-10380iLXS11,SXS11,YXS11..DLX199604-200108

*42

main90101-10380iSXS13200108-200707

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iGXS10199512-200708

main90387-10003iSXS13199604-200707

main90387-10044iSXS13200108-200707

main90387-10044iLXS11,SXS11,YXS11..DLX199604-200108

*42

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGBS12,YXS1#..(CRW,SED,TAX)..(4FC,5F)199604-200707

main90541-06036iGXS10,LXS11,YXS1#..CRW,TAX199512-200708

47264APIN(FOR PUSH ROD)

main90249-10017iLXS11,SXS11,YXS11..DLX199604-200108

*42

main90249-10017iSXS13200108-200707

main90249-10064iGXS10199512-200708

main90249-10064iTSS11,13..DLX199604-200707

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-43010iGXS10,LXS11,SXS11,YXS1#199512-199910

sub55106-43020

main55106-43020iYXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS1#..KYO,SED,TAX199910-200808

55218ASEAL, DASH PANEL INSULATOR

main55218-22010iGXS10,LXS11,SXS11,YXS1#199512-200708

9046816142

main90468-16142

91651B0825

main91651-B0825

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 3 diagrams in section
