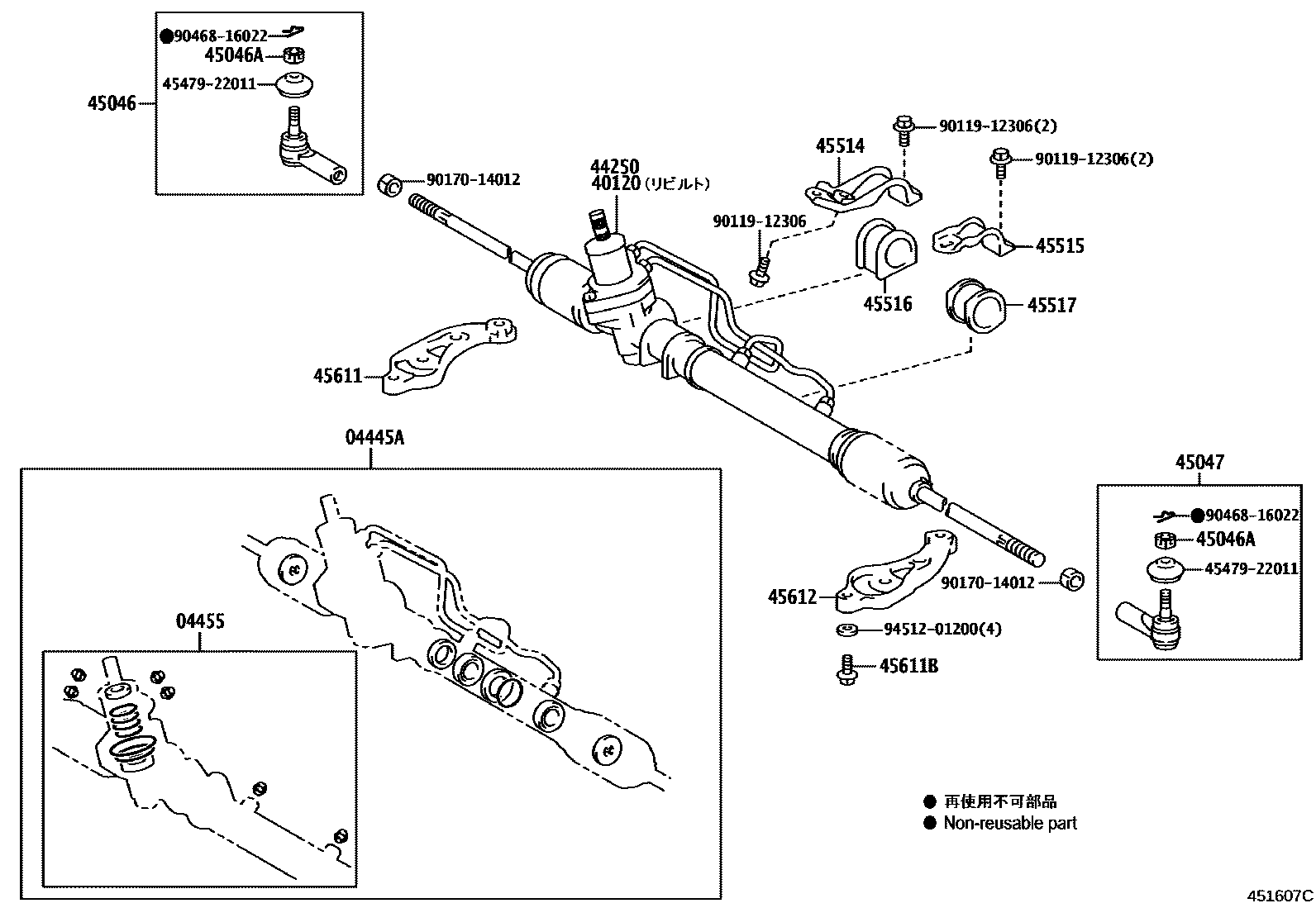

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main04445-43020iYXS10..4H;YXS10..SED..4HC200607-200706

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-43010iYXS10..4H;YXS10..SED..4HC200210-200706

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-43010iGXS10,LXS11,SXS11,YXS1#199512-199901

main40120-43011iGXS10,LXS11,SXS11,YXS1#199901-200002

main40120-43012iGXS10,SXS11,YXS1#200002-200108

main40120-43013iGBS12,YXS1#..4FC,5F200708-200808

main40120-43014iTSS1#201012-201310

main40120-43020iTSS1#201310

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-43010iGXS10,LXS11,SXS11,YXS1#199512-199901

main44250-43011iGXS10,LXS11,SXS11,YXS1#199901-200002

main44250-43012iGXS10,SXS11,YXS1#200002-200108

45046END SUB-ASSY, TIE ROD, RH

main45046-29205iGXS10,LXS11,SXS11,YXS1#199512-200108

main45046-29555iYXS10..4H;YXS10..SED..4HC200607-200706

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iGXS10,LXS11,SXS11,YXS1#199512-200108

45047END SUB-ASSY, TIE ROD, LH

main45046-29205iGXS10,LXS11,SXS11,YXS1#199512-200108

main45046-29555iYXS10..4H;YXS10..SED..4HC200607-200706

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-43010iLXS11199512-199908

main45514-43012iTSS1#200709-201310

main45514-43020iGXS10,SXS11,YXS1#199512-200002

main45514-43022iYXS10..4H;YXS10..SED..4HC200108-200706

main45514-43030iTSS1#201310

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22090iYXS10..4H;YXS10..SED..4HC200108-200706

main45515-22100iGBS12200210

main45515-43010iTSS1#201310

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-43010iGXS10,LXS11,SXS11,YXS1#199512-200002

sub45516-43011

main45516-43030iYXS10..CRW..4HC200108-200706

main45516-43040iTSS1#201310

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22031iGXS10,LXS11,SXS11,YXS1#199512-200108

main45517-43010iYXS10..4HC200709

45611ARM, STEERING KNUCKLE, RH

main45611-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90101-12111×4iGXS10,LXS11,SXS11,YXS1#199512-200108

45612ARM, STEERING KNUCKLE, LH

main45612-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

4547922011SEAL, STEERING LINK JOINT DUST

main45479-22011

9011912306

main90119-12306

9017014012

main90170-14012

9046816022

main90468-16022

9451201200

main94512-01200

19 parts on this diagram · 4 diagrams in section
