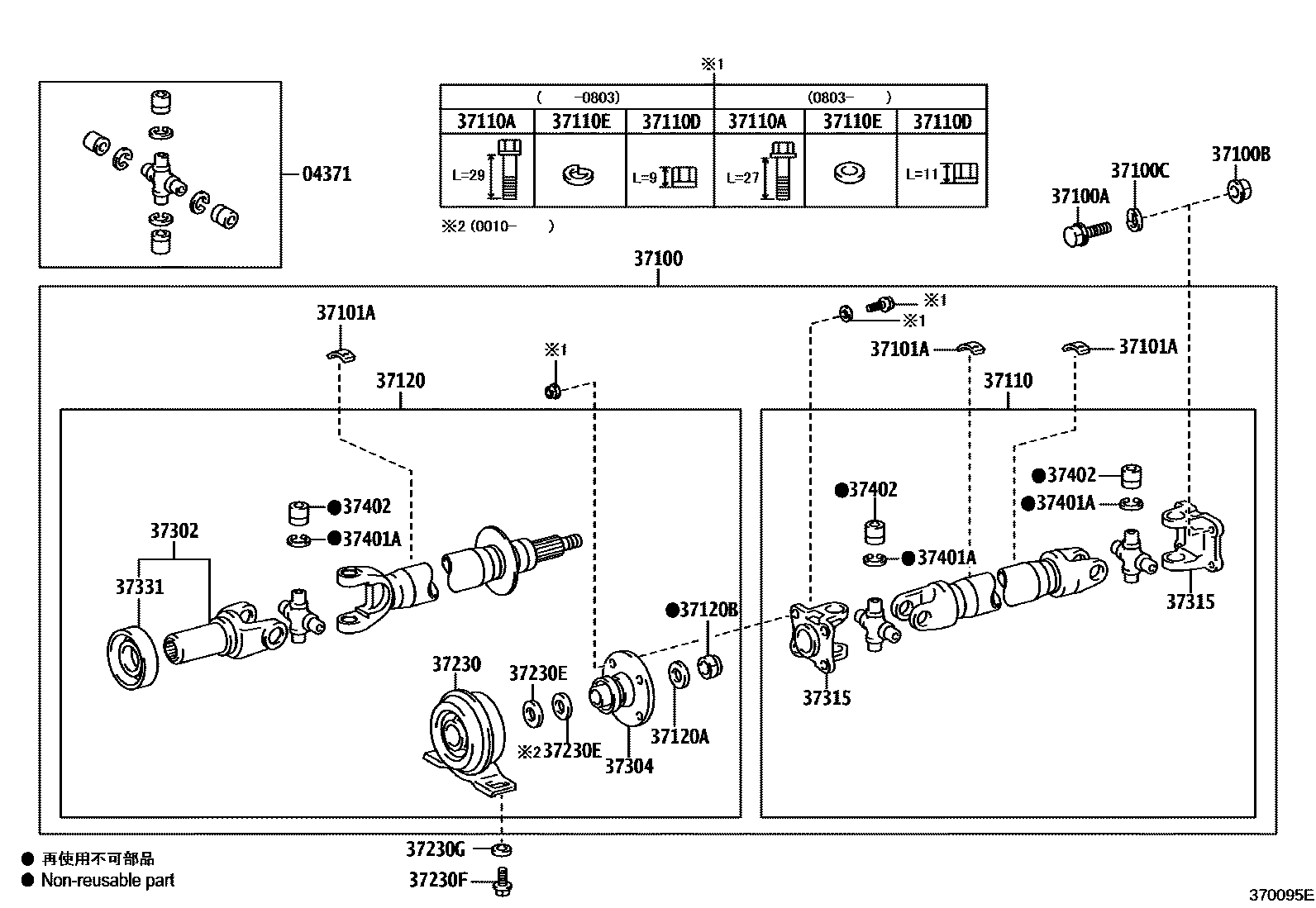

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0003 1 0004 1 0005 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-30040iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200008

sub04371-30041

main04371-30041iGXS10,YXS1#..CRW,TAX200008-200305

sub04371-60100

main04371-60100iYXS10..4HC200305-200706

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-43010iGXS10199512-200210

main37100-43020iYXS10..SED..4HC199512-200706

main37100-43030iYXS10..4H199512-200706

main37100-43040iYXS11..TAX..4FC199512-200108

main37100-43050iYXS11..5F..STD199512-200108

main37100-43060iYXS11..4FC..DLX199604-200108

main37100-43070iYXS11..5F..DLX199604-200707

main37100-43080iSXS11..5F199604-200707

main37100-43090iLXS11..5F199604-199908

main37100-43100iGXS12200108-200708

main37100-43110iGBS12200210

main37100-43130iTSS10200808

main37100-43140iTSS11,13..5F200709

main37100-43150iTSS11,13..4FC200709

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90101-08082iSXS13199604-200707

main90105-10085iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-199909

main90105-10466iYXS10..4H;YXS10..SED..4HC199909-200708

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90170-08015iYXS11..DLX199604-200707

main90178-10007iYXS10..4H;YXS10..SED..4HC199909-200708

main90179-10059iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-199909

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90204-10002iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-199909

sub90560-10H00

main90560-10102iGXS10199909-200708

main94512-00800iYXS11..DLX199604-200707

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iGXS10199512-201801

main90937-01136iSXS13199512-201801

main90937-01140iSXS13199512-201801

main90937-01147iGXS10,LXS11,SXS11,YXS1#199512-201801

main90937-01148iYXS10..4H;YXS10..SED..4HC199512-201801

main90937-01149iGXS12199512-201801

main90937-01150iGXS10,LXS11,SXS11,YXS1#199512-201801

main90937-01151iGXS12199512-201801

main90937-01152iYXS10..4H;YXS10..SED..4HC199512-201801

main90937-01153iGXS12199512-201801

main90937-01154iSXS13199512-201801

main90937-01155iYXS10..4H;YXS10..SED..4HC199512-201801

main90937-01156iGXS10199512-201801

main90937-01157iTSS11,13199512-201801

main90937-01158iGXS12199512-201801

main90937-01201iTSS11,13200709-201801

main90937-01202iTSS11,13200709-201801

main90937-01203iTSS11,13200709-201801

main90937-01204iTSS11,13200709-201801

main90937-01205iTSS11,13200709-201801

main90937-01206iTSS11,13200709-201801

main90937-01207iTSS11,13200709-201801

main90937-01208iTSS11,13200709-201801

main90937-01209iTSS11,13200709-201801

main90937-01210iTSS11,13200709-201801

main90937-01211iTSS11,13200709-201801

main90937-01311iSXS13199512-201801

main90937-01312iGXS10199512-201801

main90937-01313iGXS10,LXS11,SXS11,YXS1#199512-201801

main90937-01314iSXS13199512-201801

main90937-01399iTSS11,13200709-201801

main90937-01400iTSS11,13200709-201801

main90937-01401iTSS11,13200709-201801

main90937-01402iTSS11,13200709-201801

37110SHAFT ASSY, PROPELLER

main37110-22270iLXS11..5F199604-199908

main37110-22300iYXS11..DLX199604-200707

main37110-43010iYXS10..4FC;YXS10..CRW..4HC199512-200706

main37110-43020iLXS11,YXS11..TAX199512-200108

main37110-43030iGBS12200108-200708

main37110-43040iTSS10200808

main37110-43050iTSS11,13200709

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082iLXS11..4FC..DLX;SXS11,YXS11..DLX199604-200707

main90105-10085iYXS10..CRW..4HC199512-200803

main90105-10466iTSS1#200803

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015iYXS11..DLX199604-200707

main90178-10007iTSS1#200803

main90179-10059iYXS10..4HC199512-200803

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iYXS10..CRW..4HC199512-200803

sub90560-10H00

main90560-10102iTSS1#200803

main94512-00800iSXS13199604-200707

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-43010iGXS10199512-200210

main37120-43020iYXS10..CRW..4HC;YXS1#..(CRW,SED,TAX)..4FC199512-200706

main37120-43030iYXS11..5F..STD199512-200706

main37120-43040iLXS11,YXS11..4FC..DLX199604-200108

main37120-43050iSXS13..4FC199604-200707

main37120-43060iSXS11..5F199604-200707

main37120-43070iLXS11..5F199604-199908

main37120-43080iGXS12200108-200708

main37120-43090iGBS12200210

main37120-43110iTSS1#..4FC200709

main37120-43120iTSS11,13..5F200709

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iGXS12199512-200708

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18009iGXS12199512-200708

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-43010iGXS10,LXS11,SXS11,YXS1#199512-200708

37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)

main90201-25006iGXS12200010-200708

main90201-26005iYXS11..DLX199512-200707

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10046iYXS10..4H;YXS10..SED..4HC199512-200708

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008iGXS12199512-200708

main90201-10017iGXS12199512-200708

main90201-10033iGXS10199512-200708

main90201-10034iSXS13199512-200708

main90201-10106iGXS12199512-200708

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-24010iTSS1#..4FC200709

main37302-35030iGXS10199512-200706

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-22013iLXS11..4FC..DLX;SXS11,YXS11..DLX199604-200211

sub37304-28010

main37304-28010iYXS11..DLX200211-200707

main37304-35041iGXS10199512-200708

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35040iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200006

main37315-35070iGXS10,YXS1#..CRW,TAX200006-200706

37331COVER, SLIDING SHAFT DUST

main37331-24010iTSS1#..4FC200210

main37331-30010iGXS10199512-200708

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-25039iYXS10..CRW..4HC;YXS1#..(CRW,SED,TAX)..(4FC,5F)200006-200706

main90520-25040iGXS10,YXS1#..CRW,TAX200006-200706

main90520-25041iGXS10200006-200706

main90520-25042iGXS10200006-200706

main90520-25043iGXS10,YXS1#..CRW,TAX200006-200706

main90520-25044iYXS10..CRW..4HC;YXS1#..(CRW,SED,TAX)..(4FC,5F)200006-200706

main90520-25045iYXS10..CRW..4HC;YXS1#..(CRW,SED,TAX)..(4FC,5F)200006-200706

main90520-25046iYXS10..CRW..4HC;YXS1#..(CRW,SED,TAX)..(4FC,5F)200006-200706

main90520-25047iYXS10..CRW..4HC;YXS1#..(CRW,SED,TAX)..(4FC,5F)200006-200706

main90520-25048iYXS10..4H;YXS10..SED..4HC200006-200706

main90520-25049iTSS1#200006-200706

main90520-25050iYXS10..CRW..4HC;YXS1#..(CRW,SED,TAX)..(4FC,5F)200006-200706

main90520-25051iTSS1#200006-200706

main90520-25052iTSS1#200006-200706

main90520-25053iGXS10200006-200706

main90520-25054iYXS10..CRW..4HC;YXS1#..(CRW,SED,TAX)..(4FC,5F)200006-200706

main90520-25055iTSS1#200006-200706

main90520-25056iYXS10..4H;YXS10..SED..4HC200006-200706

main90520-25057iGXS10200006-200706

main90520-25058iYXS10..4H;YXS10..SED..4HC200006-200706

main90520-26050iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200006

sub90520-25039

main90520-26051iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200006

sub90520-25040

main90520-26052iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200006

sub90520-25041

main90520-26053iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200006

sub90520-25042

main90520-26054iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200006

sub90520-25043

main90520-26055iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200006

sub90520-25044

main90520-26056iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200006

sub90520-25045

main90520-26057iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200006

sub90520-25046

main90520-26058iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200006

sub90520-25047

main90520-26059iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200006

sub90520-25048

main90520-26062iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199806-200006

sub90520-25049

main90520-26063iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199806-200006

sub90520-25050

main90520-26064iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199806-200006

sub90520-25051

main90520-26065iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199806-200006

sub90520-25052

main90520-26066iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199806-200006

sub90520-25053

main90520-26067iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199806-200006

sub90520-25054

main90520-26068iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199806-200006

sub90520-25055

main90520-26069iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199806-200006

sub90520-25056

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-30011iYXS1#..CRW,SED,TAX200108-200305

sub04371-60070

sub04371-60100

main37402-30011iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200108

sub04371-60070

sub04371-60100

main37402-30021iLXS11..5F;GXS10,LXS11,YXS1#..CRW,TAX199512-200305

sub04371-60070

sub04371-60100

23 parts on this diagram · 4 diagrams in section
