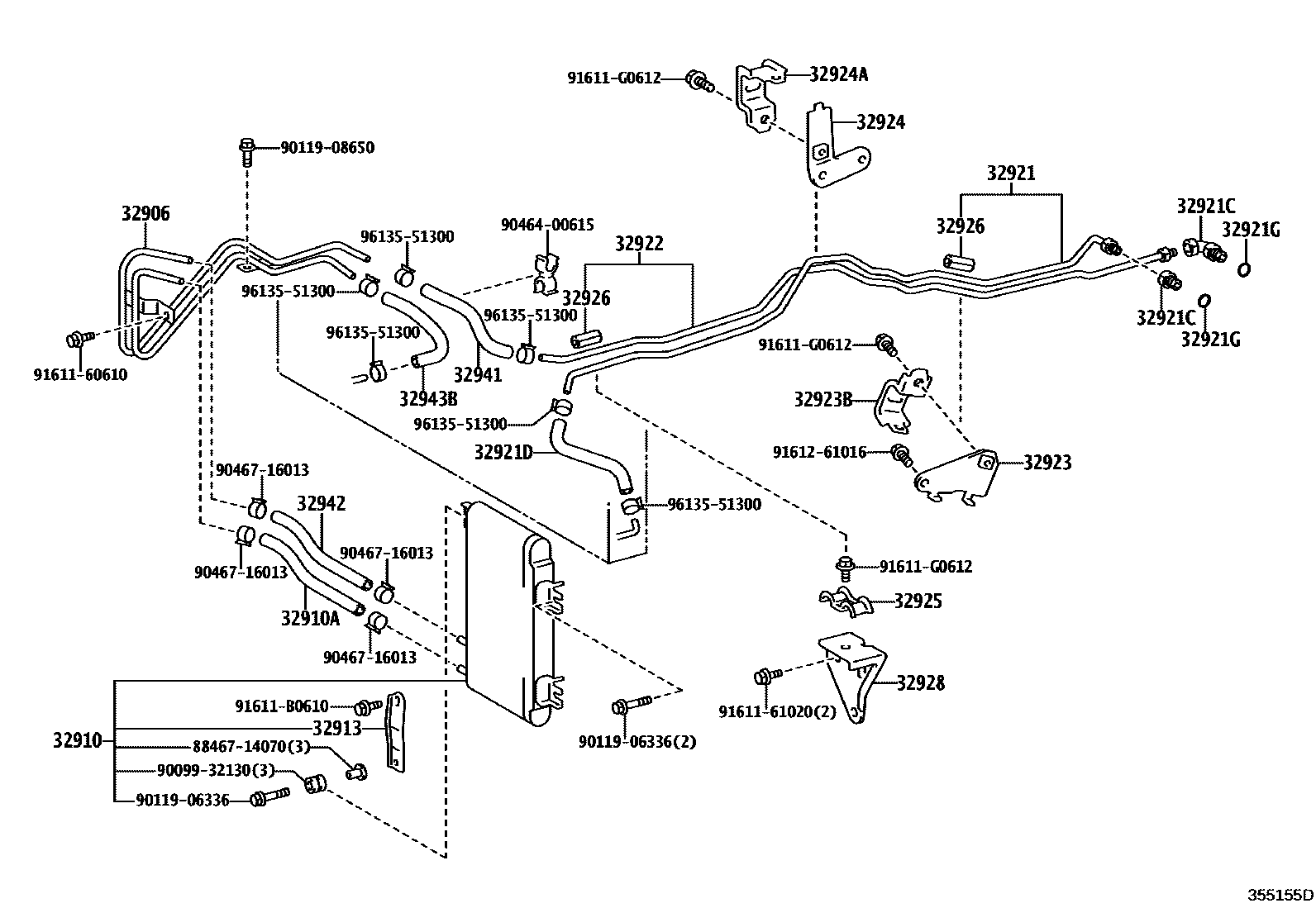

OIL COOLER & TUBE (ATM)

0001 1A43D 0002 1A43D 0003 1A43D 0004 1A43D 0005 1A42D 0006 1A43D 0007 1A42DE 0008 1A340E 0009 1A340E 0010 1A340E

32906TUBE SUB-ASSY, OIL COOLER

main32907-43010iGXS10,YXS1#..(CRW,TAX)..ATM199512-200108

main32907-43020iLXS11..TAX199512-199908

main32907-43040iGXS10200110-200210

32910COOLER ASSY, OIL

main32910-43010iYXS10..SED..4HC200108-200706

32910AHOSE, OIL COOLER WATER OUTLET

main32942-28190iGXS10,LXS11,YXS1#..(CRW,TAX)..ATM199512-200108

32913BRACKET, OIL COOLER

main32913-43010iYXS10..SED..4HC200108-200706

32921TUBE, OIL COOLER INLET, NO.1

main32921-43010iGXS10200110-200210

main32921-43020iLXS11..4FC199512-199908

main32921-43030iYXS1#..ATM199512-200108

main32921-43040iSXS11..4FC199604-200108

main32921-43050iGXS12200108-200708

main32921-43060iGBS12200210

main32921-43070iYXS10..SED..4HC200210-200706

main32921-43080iTSS1#..4FC200709-201310

main32921-43081iTSS1#..4FC201310

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iSXS11..4FC199604-199610

main90404-14021iSXS13..4FC200108-200707

main90404-16021iYXS10..CRW..4HC200108-200706

main90404-16029iTSS1#..4FC200709

main90407-14003iSXS11..4FC199604-200108

main90407-16009iGBS12200210

main90407-16010iYXS10..CRW..4HC200108-200706

main90407-16012iGBS12200210

32921DHOSE(FOR OIL COOLER INLET)

main32941-22310iSXS13..4FC200108-200707

main32941-43010iYXS10..SED..4HC200108-200706

main90445-15047iGXS10200110-200210

main90445-15052iYXS1#..ATM199512-199612

main90445-15057iTSS1#..4FC200709

main90445-15058iLXS11..4FC199512-199908

main90445-17124iGBS12200210

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iGXS10200108-200210

main90301-11030×2iTSS1#..4FC200709

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-43010iGXS10199512-200102

main32922-43020iLXS11..4FC199512-199908

main32922-43030iYXS1#..ATM200108-200210

main32922-43040iSXS11..4FC199604-200108

main32922-43050iGXS12200108-200708

main32922-43060iGBS12200210

main32922-43070iYXS10..SED..4HC200210-200706

main32922-43080iTSS1#..4FC200709-201310

main32922-43081iTSS1#..4FC201310

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-22070iLXS11..4FC199512-199908

main32923-43020iYXS10..SED..4HC200108-200706

main32923-43030iGXS10199512-200102

main32923-43040iGXS12200108-200708

main32923-43050iTSS1#..4FC200709

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32924-28010iSXS11..4FC199604-200108

main32929-22050iGXS10200108-200210

main32929-28010iLXS11..4FC199512-199908

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-22070iSXS11..4FC199604-200108

main32924-30140iYXS1#..(CRW,TAX)..ATM200108

main32924-30150iYXS1#..ATM..(DLX,SG,STD)200108

main32924-30210iLXS11..4FC199512-199908

main32924-43010iGXS10200110-200210

main32924-43020iGBS12200108

main32924-43030iTSS1#..4FC200709

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-22050iGXS10200108-200210

main90462-12085iSXS13..4FC200108-200707

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-43020iGBS12200210

main32925-43030iTSS1#..4FC200709

main90462-12047iGXS10200108-200210

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010×2iSXS11..4FC199604-200108

main32926-30011×4iSXS11..4FC199604-200108

main32926-30020×2iGXS10200110-200210

main32926-30030×2iGXS12200108-200708

main32926-32010×4iTSS1#..4FC200709

main32926-50040×2iTSS1#..4FC200709

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-22110iLXS11..4FC199512-199908

32941HOSE, OIL COOLER INLET, NO.1

main32941-32030iLXS11199512-199602

main32943-43060iLXS11..TAX199602-199908

main32943-43080iGXS10200110-200210

main90445-15020iYXS1#..(CRW,TAX)..ATM199512-200108

main90445-15044iGXS10199512-200102

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-28190iGXS10199512-200102

main90445-17115iYXS10..SED..4HC200108-200706

32943BHOSE, TRANSMISSION OIL COOLER

main32943-43010iGXS10199512-200102

main32943-43030iTSS10,11..(CRW,SED,TAX)..4FC200808-200906

main32943-43031iTSS10,11..(CRW,SED,TAX)..4FC200907

main32943-43050iLXS11..TAX199602-199908

main32943-43070iGXS10200110-200210

main90445-15050iLXS11199512-199602

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

9009932130

main90099-32130

9011906336

main90119-06336

9011908650

main90119-08650

9046400615

main90464-00615

9046716013

main90467-16013

9161160610

main91611-60610

9161161020

main91611-61020

91611B0610

main91611-B0610

91611G0612

main91611-G0612

9161261016

main91612-61016

9613551300

main96135-51300

31 parts on this diagram · 10 diagrams in section
