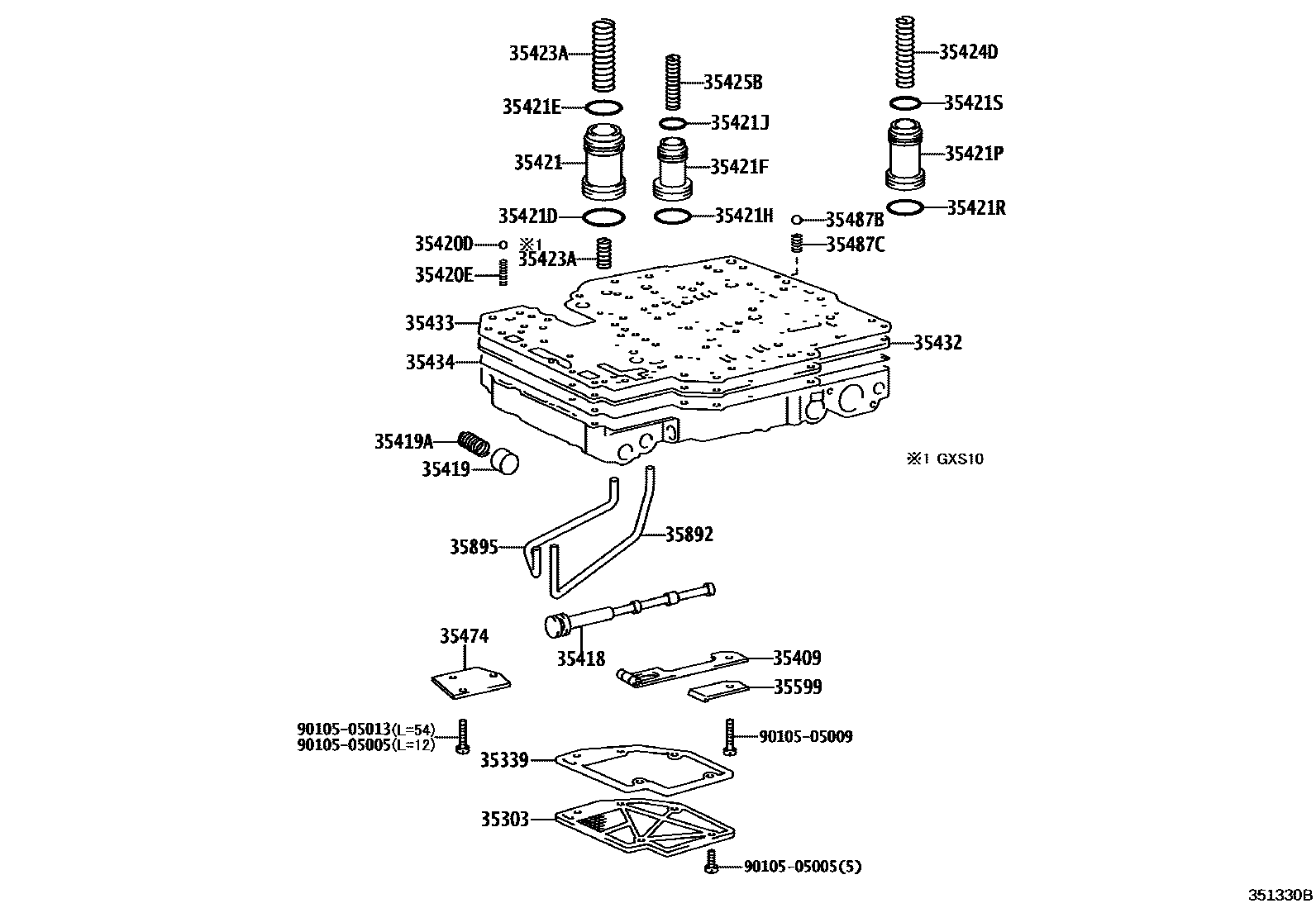

VALVE BODY & OIL STRAINER (ATM)

0001 1A42D,A43D 0002 1A43D 0003 1A42D,A43D 0004 1A42D,A43D 0005 1A42D,A43D 0006 1A42DE 0007 1A42D,A43D 0008 1A340E 0009 1A340E 0010 1A340E

35303STRAINER SUB-ASSY, OIL

main35303-30050iGXS10,SXS13,YXS1#..ATM199512-200201

main35303-35020iGXS10200201-200707

35339GASKET, OIL STRAINER

main35339-28010iYXS10..4HC199512-200808

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-30010iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35418VALVE, MANUAL

main35418-30050iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35419VALVE, CHECK, NO.1

main35419-22010iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-16083iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35420BODY ASSY, LOWER VALVE

main35420-22250iGXS10,SXS11..ATM199512-200001

main35420-28070iYXS1#..ATM199512-200001

main35420-43010iLXS11..4FC199512-199908

main35420-43020iGXS10,SXS11..ATM200001-200108

main35420-43030iYXS1#..ATM200001-200108

35420DBALL (FOR LOWER VALVE BODY)

main35495-22020iGXS10,SXS11,YXS1#..ATM199512-200108

main35496-22030iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35420ESPRING (FOR LOWER VALVE BODY)

main90501-04727iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35421PISTON, ACCUMULATOR, NO.1

main35421-24010iGXS10199512-200210

main35421-26010iYXS10..CRW..4HC199512-200808

main35421-30020iSXS11..4FC199604-200108

35421DRING (FOR ACCUMULATOR PISTON NO.1)

main90301-29011iGXS10199808-200707

main90301-29187iGXS10,LXS11,SXS11,YXS1#..ATM199512-199808

35421ERING (FOR ACCUMULATOR PISTON NO.1)

main90301-23010iSXS13..4FC199808-200707

main90301-23194iGXS10,LXS11,SXS11,YXS1#..ATM199512-199808

35421FPISTON, ACCUMULATOR, NO.2

main35423-30010iYXS10..SED..4HC199512-200707

main35441-30010iGXS10199512-200210

35421HRING (FOR ACCUMULATOR PISTON NO.2)

main90301-26012iGXS10,LXS11,SXS11,YXS1#..ATM199808-200707

main90301-26190iGXS10,LXS11,SXS11,YXS1#..ATM199512-199808

35421JRING (FOR ACCUMULATOR PISTON NO.2)

main90301-18010iGXS10,LXS11,SXS11,YXS1#..ATM199808-200707

main90301-18186iGXS10,LXS11,SXS11,YXS1#..ATM199512-199808

sub90301-18010

35421PPISTON, ACCUMULATOR, NO.3

main35421-22030iGXS10199512-200707

main35424-26010iLXS11..4FC199512-199908

35421RRING (FOR ACCUMULATOR PISTON NO.3)

main90301-26012iGXS10,LXS11,SXS11,YXS1#..ATM199808-200707

main90301-26190iGXS10,LXS11,SXS11,YXS1#..ATM199512-199808

35421SRING (FOR ACCUMULATOR PISTON NO.3)

main90301-21012iYXS10..SED..4HC199808-200707

main90301-22185iGXS10,LXS11,SXS11,YXS1#..ATM199512-199808

35423PISTON, B-2 ACCUMULATOR

main35421-26010iGXS12200108-200708

main35423-30030iTSS1#..4FC200210-200808

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-13012iGXS10199512-200210

main90501-19017iLXS11..4FC199512-199908

main90501-23094iGBS12200210

main90501-24015iTSS1#..4FC200709

main90501-25033iYXS1#..(CRW,SED,TAX)..ATM199512-200210

main90501-25037iYXS10..4HC200205-200707

main90501-25037iYXS10..CRW..4HC200108-200706

TOYOTA STOP AND GO SYSTEM

main90501-26050iGXS10199512-200210

main90501-32012iSXS11..4FC199604-200108

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-16093iLXS11..4FC199512-199908

main90501-20063iYXS1#..4FC;YXS10..CRW..4HC199512-200707

35425SEAT, PRESSURE REGULATOR VALVE SLEEVE

main35425-14010iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-15003iYXS1#..ATM200001-200108

main90501-16093iYXS10..CRW..4HC200108-200706

main90501-18041iSXS13..4FC200001-200707

main90501-18105iSXS13..4FC200108-200707

main90501-20038iLXS11..4FC199512-199908

main90501-22016iTSS1#..4FC200210

main90501-25002iYXS1#..ATM199512-200001

main90501-25010iGXS10199512-200210

main90501-25027iGBS12200210

main90501-25033iLXS11..4FC199512-199908

35432PLATE, VALVE BODY, NO.1

main35432-22250iSXS11..4FC199604-200001

main35432-30450iGXS10,YXS1#..ATM199512-200001

main35432-43010iLXS11..4FC199512-199908

main35432-43020iGXS10200001-200102

main35432-43030iSXS11..4FC200001-200108

main35432-43040iYXS1#..ATM200001-200108

35433GASKET, VALVE BODY, NO.1

main35433-30052iGXS10,LXS11,SXS11,YXS1#..ATM199512-200001

main35433-35010iGXS10,SXS11,YXS1#..ATM200001-200108

35434GASKET, VALVE BODY, NO.2

main35434-30052iGXS10,LXS11,SXS11,YXS1#..ATM199512-200001

main35434-35010iGXS10,SXS11,YXS1#..ATM200001-200108

35474COVER, VALVE BODY, NO.4

main35474-22010iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35487BBALL, CHECK, NO.4

main35487-30010iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35487CSPRING, COMPRESSION (FOR CHECK BALL)

main90504-05006iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35599COVER, MANUAL DETENT SPRING

main35599-30010iGXS10,LXS11,SXS11,YXS1#..ATM199512-200108

35892TUBE, OVERDRIVE BRAKE

main35892-22010iGXS12200108-200708

main35892-28010iGXS10,LXS11,SXS11..ATM199610-200201

main35892-28020iYXS1#..4FC;YXS10..CRW..4HC200201-200707

main35892-30020iYXS1#..ATM199512-200201

sub35892-28010

35895TUBE, FRONT CLUTCH APPLY

main35895-30021iSXS13..4FC199512-200707

9010505005

main90105-05005

9010505009

main90105-05009

9010505013

main90105-05013

35 parts on this diagram · 10 diagrams in section
