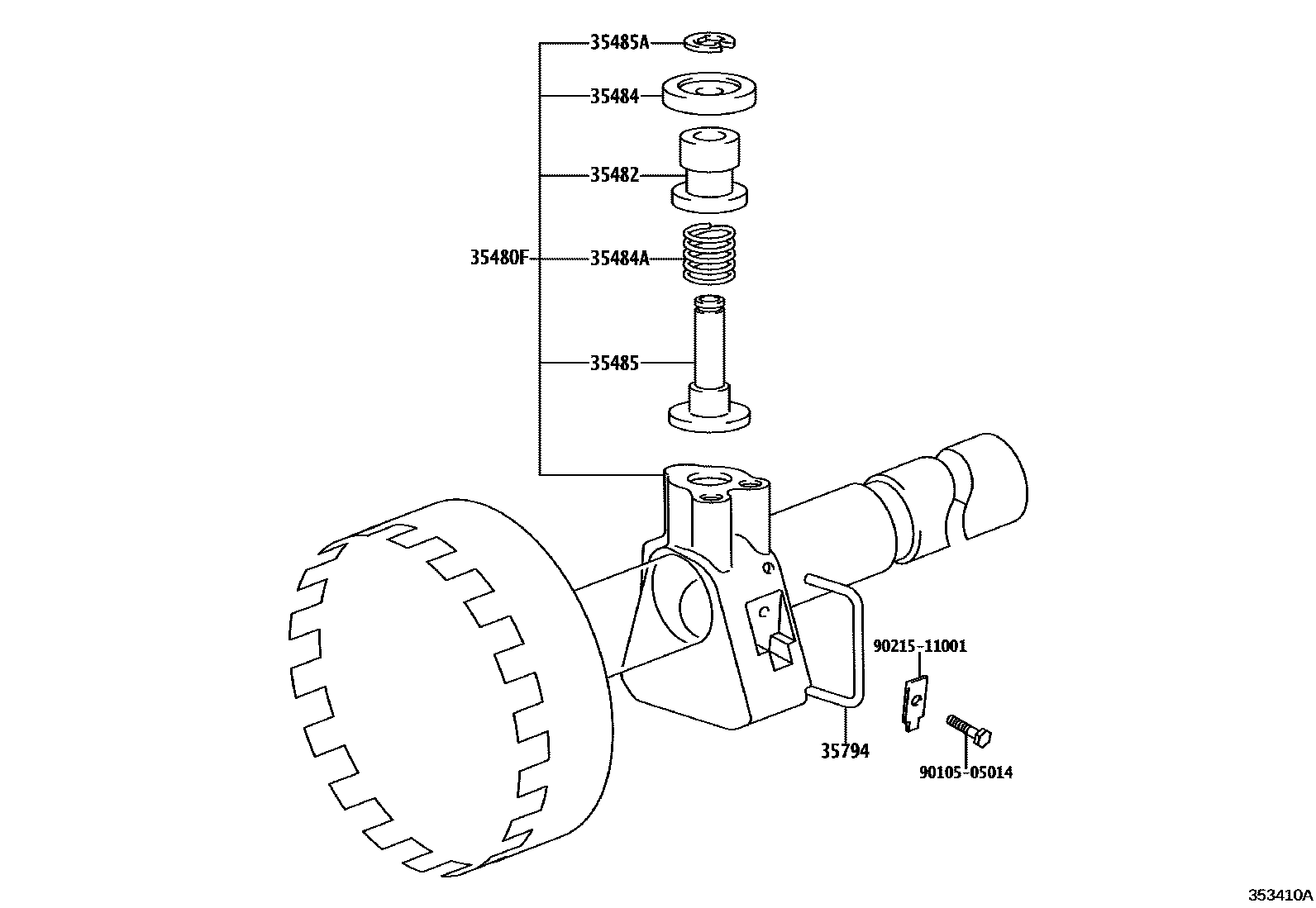

REAR OIL PUMP & GOVERNOR (ATM)

35480FBODY ASSY, GOVERNOR

main35480-26020iYXS1#..ATM199512-200706

main35480-30060iGXS10,SXS13..ATM199512-200707

main35480-30080iLXS11..4FC199512-199908

35482VALVE, GOVERNOR

main35482-20010iYXS10..CRW..4HC199512-200706

main35482-22010iGXS10,SXS13..ATM199512-200707

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iYXS10..4HC199512-200706

main35484-22010iGXS10,SXS13..ATM199512-200707

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09030iLXS11..4FC199512-199908

main90501-09673iYXS10..4HC199512-200706

35485SHAFT, GOVERNOR VALVE

main35485-22010iYXS10..CRW..4FC;GXS10,SXS13,YXS1#..(KYO,SED,TAX)..ATM199512-200706

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iGXS10,LXS11,SXS11,YXS1#..ATM199512-200706

35794RING, GOVERNOR RETAINING

main35794-22010iGXS10,LXS11,SXS11,YXS1#..ATM199512-200706

9010505014

main90105-05014

9021511001

main90215-11001

9 parts on this diagram · 1 diagram in section
