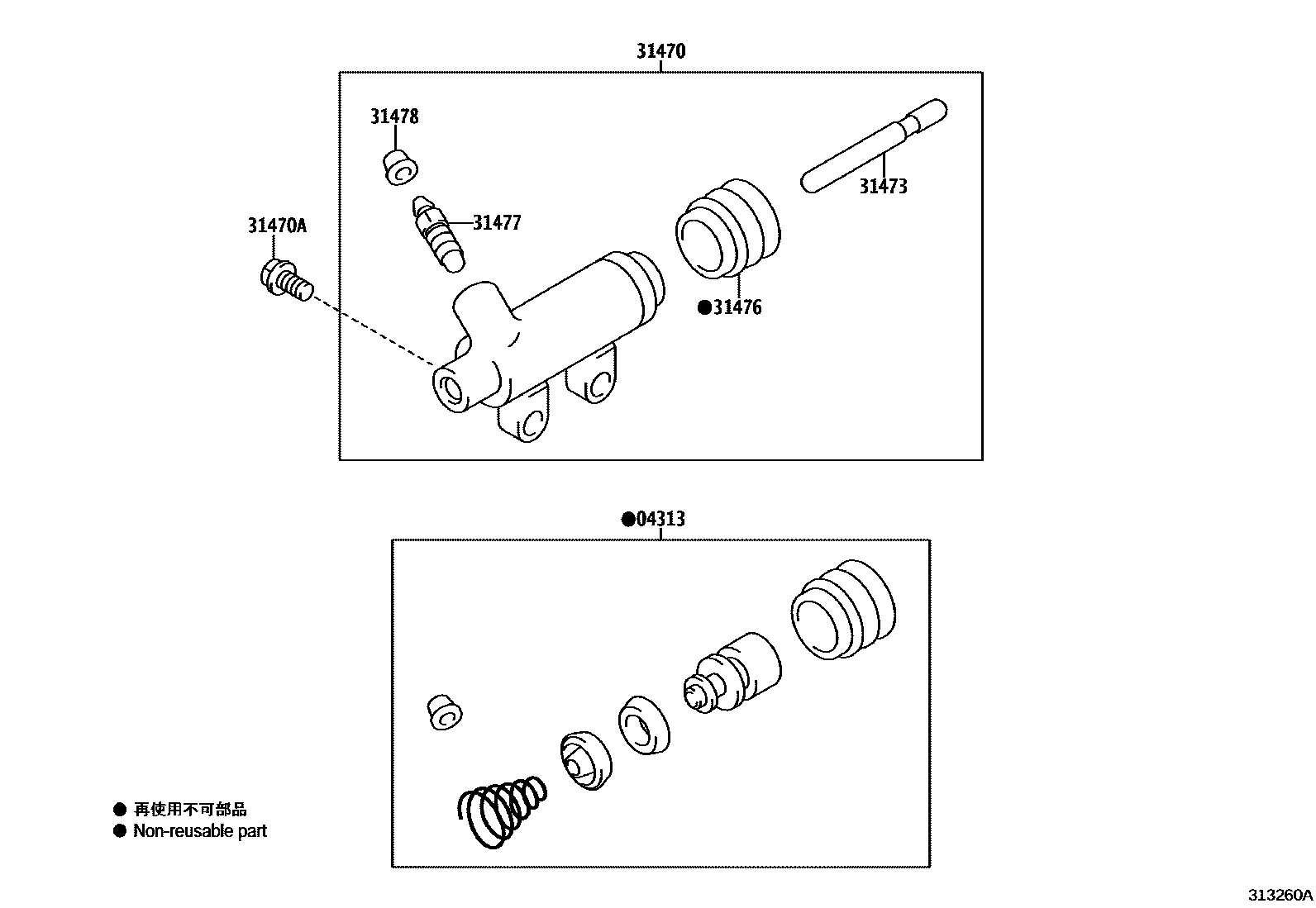

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iLXS11..5F199604-200807

main04313-22030iSXS13..5F199512-200707

main04313-52020iTSS11,13..5F200808

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-22112iLXS11..5F199604-199908

main31470-22150iYXS11..5F199512-200706

main31470-22170iSXS13..5F199604-200707

main31470-35130iTSS13..5F200709-200808

sub31470-43010

main31470-43010iTSS11,13..5F200808

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iLXS11,SXS11,YXS1#..MTM199512-200108

sub91611-B0825

main91611-B0825iTSS11,13..5F200108-200707

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iSXS11..5F200107-200707

main31473-22010iTSS11,13..5F200808

main31473-22030iLXS11,SXS11..5F199604-200107

main31473-32010iTSS13..5F200709-200808

main31473-35050iYXS11..5F199512-200706

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLXS11,SXS11,YXS1#..MTM199512-200707

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLXS11,SXS11,YXS1#..MTM199512-200707

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLXS11,SXS11,YXS1#..MTM199512-200707

7 parts on this diagram · 3 diagrams in section
