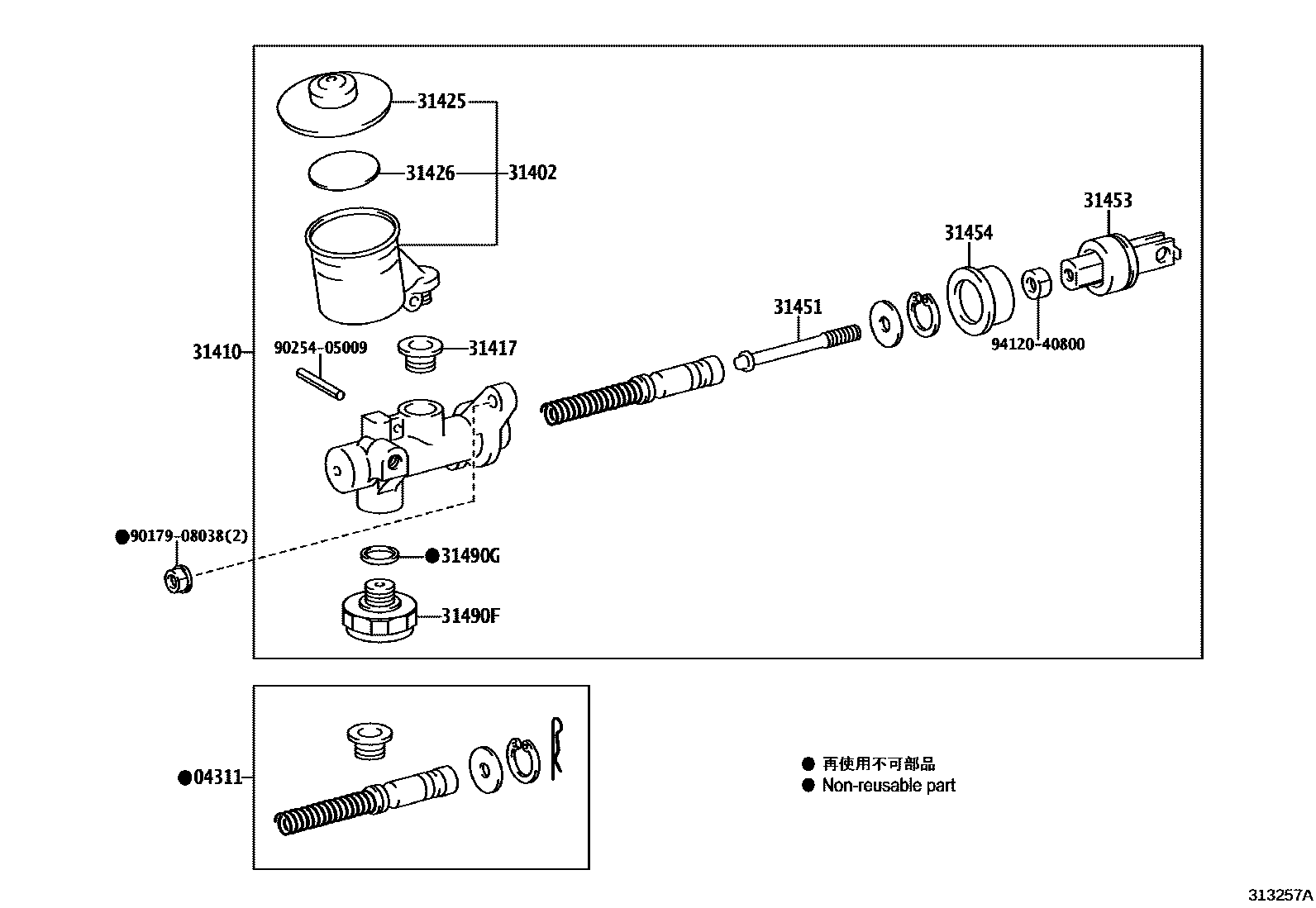

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iTSS11,13..5F199710-200707

main04311-30111iYXS1#..MTM199512-200706

main04311-60150iLXS11,SXS11..5F199604-199710

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-22010iLXS11,SXS11,YXS1#..MTM199512-200707

31410CYLINDER ASSY, CLUTCH MASTER

main31410-43010iYXS11..5F199512-200706

main31410-43020iLXS11..5F199604-199908

main31410-43030iSXS13..5F199604-200707

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iLXS11,SXS11,YXS1#..MTM199512-200707

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iYXS10..4H199512-200707

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLXS11,SXS11,YXS1#..MTM199512-200707

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040iLXS11,SXS11,YXS1#..MTM199512-200707

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iLXS11,SXS11,YXS1#..MTM199512-200707

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iLXS11,SXS11,YXS1#..MTM199512-200707

31490FACCUMULATOR ASSY, MASTER CYLINDER

main31490-12010iLXS11..5F199604-199908

31490GGASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)

main90430-16005iLXS11..5F199604-199908

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

14 parts on this diagram · 2 diagrams in section
