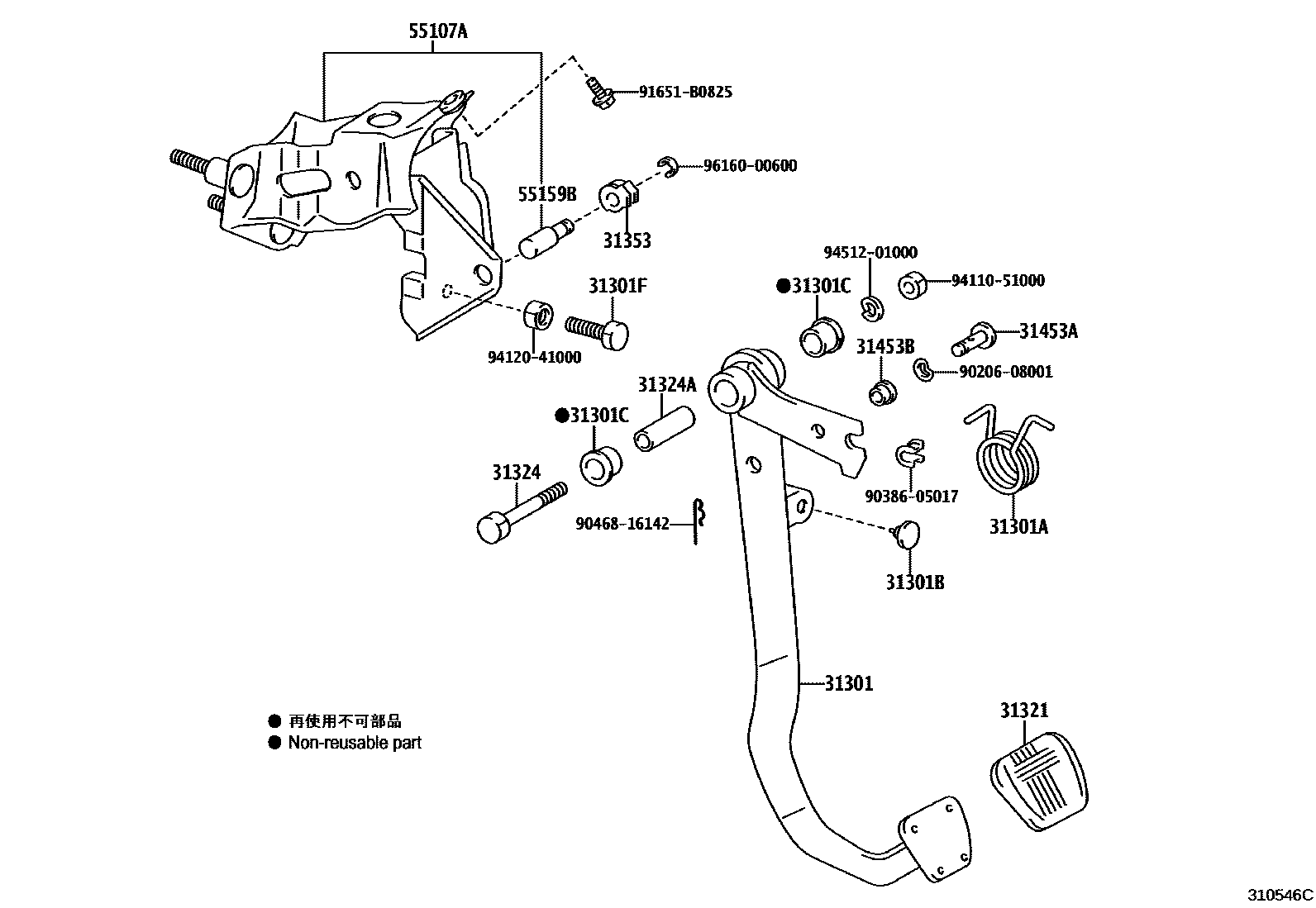

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-43010iTSS11..5F..STD199512-200706

main31301-43011iLXS11,SXS11,YXS1#..MTM199705-199805

sub31301-43010

main31301-43020iSXS13..5F200001-200707

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03037iLXS11..5F199604-199908

main90949-03039iSXS11,YXS1#..MTM199512-199701

main90949-03068iSXS13..5F199701-200707

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iLXS11,SXS11,YXS1#..MTM199512-200707

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iLXS11,SXS11,YXS1#..MTM199512-200707

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iLXS11,SXS11,YXS1#..MTM199512-200707

31321PAD, CLUTCH PEDAL

main31321-14020iLXS11,SXS11,YXS1#..MTM199512-200707

31324SHAFT, CLUTCH PEDAL

main90101-10015iLXS11,SXS11,YXS1#..MTM199512-200707

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iYXS10..4H199512-200707

31353HOLDER, CLUTCH PEDAL SPRING

main31353-14010iYXS10..4H199512-200707

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iLXS11,SXS11,YXS1#..MTM199512-200707

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iLXS11,SXS11,YXS1#..MTM199512-200707

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-43010iLXS11,SXS11,YXS1#..MTM199512-200808

main55107-43020iTSS11,13..5F..DLX200001-200808

55159BPIN, CLUTCH PEDAL TURNOVER SPRING

main55159-14010iYXS10..4H199512-200707

9020608001

main90206-08001

9038605017

main90386-05017

9046816142

main90468-16142

91651B0825

main91651-B0825

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

9616000600

main96160-00600

21 parts on this diagram · 8 diagrams in section
