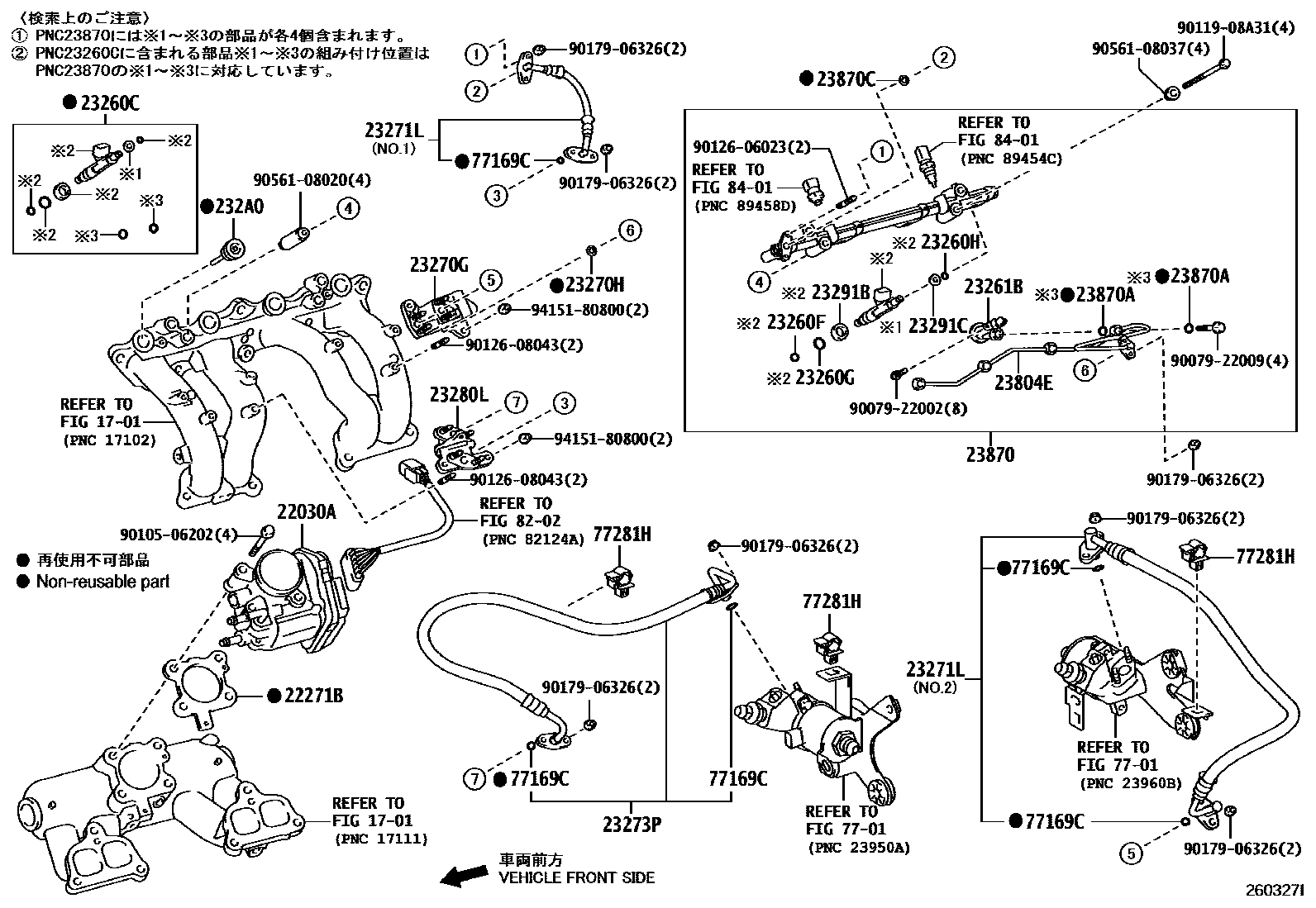

LPG OR CNG INJECTION SYSTEM
1701
22030ABODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271BGASKET, THROTTLE BODY
23260CINJECTOR ASSY, LPG OR CNG
23260FRING, O(FOR LPG OR CNG INJECTOR NO.1)
23260GRING, O(FOR LPG OR CNG INJECTOR NO.2)
23260HRING, O(FOR LPG OR CNG INJECTOR NO.3)
23261BCOVER, INJECTOR
23270GDAMPER ASSY, FUEL PRESSURE PULSATION
23270HRING, O(FOR FUEL PRESSURE PULSATION DAMPER)
23273PHOSE, FUEL, NO.2
23280LREGULATOR ASSY, FUEL PRESSURE
23291BINSULATOR, INJECTOR VIBRATION
23291CINSULATOR, INJECTOR VIBRATION, NO.2
232A0INSULATOR ASSY, FUEL INJECTOR
23804EPIPE SUB-ASSY, FUEL INLET
23870PIPE ASSY, FUEL DELIVERY W/LPG INJECTOR
23870ARING, O(FOR FUEL DELIVERY PIPE NO.1)
23870CRING, O(FOR FUEL DELIVERY PIPE NO.3)
7701
77169CGASKET, FUEL SUCTION TUBE SET
77281HCLAMP, FUEL HOSE, NO.1
8202
8401
9007922002
main90079-22002
9007922009
main90079-22009
9010506202
main90105-06202
9011908A31
main90119-08A31
9012606023
main90126-06023
9012608043
main90126-08043
9017906326
main90179-06326
9056108020
main90561-08020
9056108037
main90561-08037
9415180800
main94151-80800
35 parts on this diagram · 1 diagram in section
