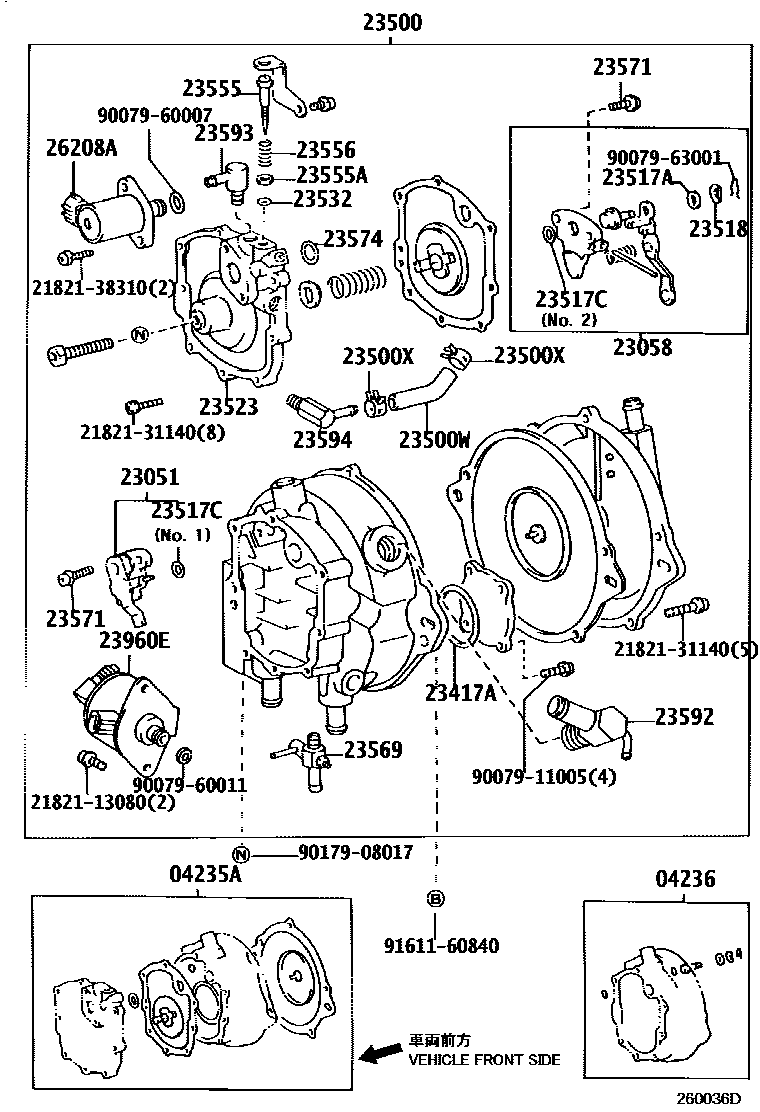

LPG OR CNG REGULATOR

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE

main04235-70040i3YPE..YXS1#199512-200108

main04235-73180i1GGPE..GXS10200110-200210

main04235-73190i3YPE..YXS1#200108

04236VALVE KIT, LPG REGULATOR

main04236-70040i3YPE..YXS1#199512-199701

main04236-70041i3YPE..YXS1#199701-199801

main04236-70042i1GGPE..GXS10199801-200102

23051VALVE SUB-ASSY, 1ST

main23051-72010i3YPE..YXS1#199512-199701

main23051-73170i1GGPE..GXS10199701-200102

23058VALVE SUB-ASSY, 2ND

main23058-70040i1GGPE..GXS10199512-199801

main23058-70041i1GGPE..GXS10199801-200102

main23058-73170i3YPE..YXS1#199512-199801

main23058-73171i3YPE..YXS1#199801-200108

23417ARING, O

main90079-60006i1GGPE..GXS10199512-200102

23500REGULATOR ASSY, LPG(CNG)

main23500-70050i1GGPE..GXS10199512-199801

main23500-70051i1GGPE..GXS10199801-199901

main23500-70052i1GGPE..GXS10199901-200102

main23500-70060i1GGPE..GXS10200110-200210

main23500-73170i3YPE..YXS1#199512-199901

main23500-73171i3YPE..YXS1#199901-200108

main23500-73190i3YPE..YXS1#200108-200210

main23500-73210i3YPE..YXS1#200210

23500WHOSE, FUEL(FOR LPG REGULATOR)

main90079-71008i1GGPE..GXS10200110-200210

main90079-71009i1GGPE..GXS10199901-200102

main90079-71010i3YPE..YXS1#200108-200210

main90079-71012i1GGPE..GXS10200110-200210

main90079-71015i3YPE..YXS1#200210

main90079-71016i3YPE..YXS1#200210

main95333-04010i3YPE..YXS1#199512-199901

23500XCLIP(FOR LPG REGULATOR FUEL HOSE)

main96132-30400×4i1GGPE..GXS10199901-200102

main96132-51000×4i3YPE..YXS1#199901-200108

23517AWASHER(FOR ELASTIC FACE VALVE SET)

main21535-10010i1GGPE..GXS10199512-200102

23517CGASKET(FOR ELASTIC FACE VALVE)

main23532-44020i1GGPE..GXS10199801-200102

main90079-60012i1GGPE..GXS10199801-200102

23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-40010i1GGPE..GXS10199512-200102

23523COVER, 1ST REGULATOR

main23523-70040i1GGPE..GXS10199512-200102

23532RING, O, NO.2(FOR BULB)

main23532-40010×2i1GGPE..GXS10199512-199901

23555SCREW, IDLE ADJUST

main23555-70040i3YPE..YXS1#199512-199810

main23555-70041i1GGPE..GXS10199810-199901

23555AWASHER, IDLE ADJUST SCREW

main21885-26040i3YPE..YXS1#199512-199901

23556SPRING, IDLE ADJUST SCREW

main21723-21030i3YPE..YXS1#199512-199901

23569COCK, DRAIN

main23569-40010i1GGPE..GXS10199512-200102

23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)

main23571-72010×4i1GGPE..GXS10199512-200102

23574RING, O, NO.1(FOR BULB)

main23574-72010i1GGPE..GXS10199512-200102

23592UNION, NO.2, FUEL HOSE

main23592-70050i1GGPE..GXS10199901-200102

main23592-73130i1GGPE..GXS10199512-199901

main23592-73170i3YPE..YXS1#199512-199901

main23592-73171i3YPE..YXS1#200108

23593UNION, NO.3

main23593-72010i3YPE..YXS1#200108

23594UNION, NO.4, WATER HOSE

main23594-73170i1GGPE..GXS10200110-200210

23960EVALVE ASSY, SOLENOID LPG

main23960-73040i3YPE..YXS1#199512-199901

main23960-73041i1GGPE..GXS10200008-200102

main23960-73042i1GGPE..GXS10200203-200210

26208AVALVE SUB-ASSY, SOLENOID(FOR LPG REGULATOR)

main26206-73130i3YPE..YXS1#199512-199810

main26208-73131i1GGPE..GXS10199810-200102

2182113080SCREW, 2ND THROTTLE VALVE SET

main21821-13080

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

9007911005

main90079-11005

9007960007

main90079-60007

9007960011

main90079-60011

9007963001

main90079-63001

9017908017

main90179-08017

9161160840

main91611-60840

33 parts on this diagram · 6 diagrams in section
