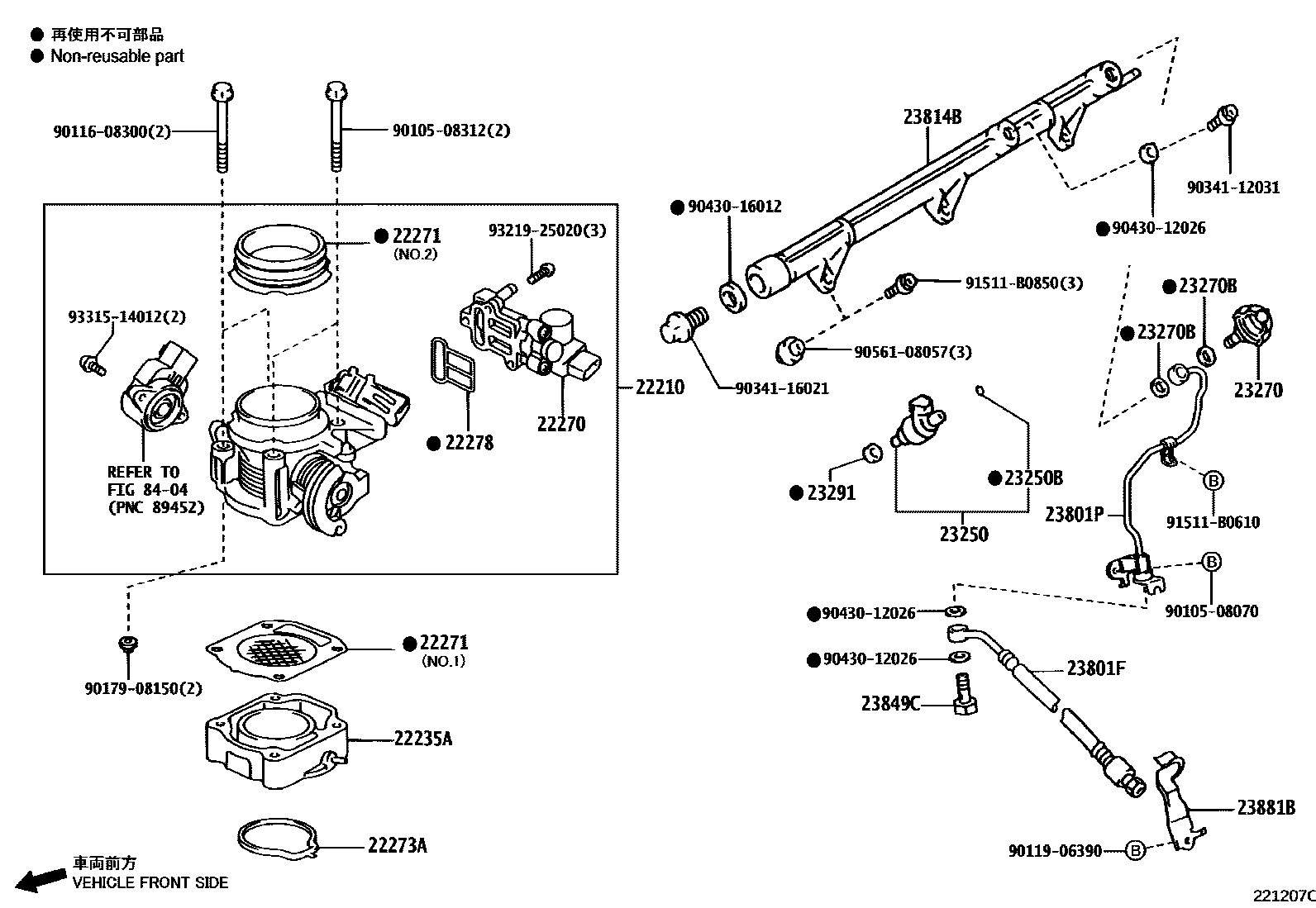

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

22210BODY ASSY, THROTTLE

main22210-70420i1GFE..GXS12200108

main22210-7A250i4SFE..SXS11..5F199604-200108

main22210-7A260i4SFE..SXS11..4FC199604-200108

main22210-7A870i3SFE..SXS13200108

22235AINLET, AUXILIARY AIR

main22235-70010i1GFE..GBS12,GXS12200108

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-70130i1GFE..GXS12200108

main22270-74140i4SFE..SXS11..5F199604-200108

main22270-74150i4SFE..SXS11..4FC199604-200108

main22270-74270i3SFE..SXS13200108

22271GASKET, THROTTLE BODY

main22271-0C010i1TRFE..TSS13200709-201108

main22271-37010i1TRFE..TSS13201108

main22271-70030i1GFE..GBS12,GXS12200108

main22271-70040i1GFE..GBS12,GXS12200108

main22271-74062i4SFE..SXS11199604-200108

main22271-74070i3SFE..SXS13200108

22273AGASKET, THROTTLE BODY, NO.2

main22273-70020i1GFE..GBS12,GXS12200108

22278GASKET, IDLE SPEED CONTROL VALVE

main22278-46020i1GFE..GXS12200108

23250INJECTOR ASSY, FUEL

main23209-21020×6i1GFE..GBS12200210

main23209-70120×6i1GFE..GXS12200108

main23209-74130×4i4SFE..SXS11199604-200108

main23209-74170×4i3SFE..SXS13200108

main23209-79155×4i1TRFE..TSS13200709-201203

main23209-79205×4i1TRFE..TSS13201203

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i4SFE..SXS11199604-199812

main90301-07024×4i4SFE..SXS11199812-200108

main90301-07037×6i1GFE..GBS12,GXS12200607

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i4SFE..SXS11199604-200108

sub23207-20011

main23270-75010i1TRFE..TSS13200709-201409

main23270-75050i1TRFE..TSS13201409

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-41081×2i1GFE..GBS12,GXS12200108

main23279-74010i4SFE..SXS11199604-200108

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×6i1GFE..GBS12,GXS12200108

main23291-73010×4i1TRFE..TSS13200709

23801FHOSE, FUEL, NO.1

main90923-01315i1GFE..GBS12200210

main90923-01346i1GFE..GXS12200108

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-70130i1GFE..GBS12,GXS12200108

23814BPIPE, FUEL DELIVERY

main23814-70050i1GFE..GBS12,GXS12200108

sub23814-70061

23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)

main90401-12097i1GFE..GBS12,GXS12200108

23881BBRACKET, FUEL HOSE

main23881-46030i1GFE..GXS12200108

main23881-70020i1GFE..GBS12200210

8404

9010508070

main90105-08070

9010508312

main90105-08312

9011608300

main90116-08300

9011906390

main90119-06390

9017908150

main90179-08150

9034112031

main90341-12031

9034116021

main90341-16021

9043012026

main90430-12026

9043016012

main90430-16012

9056108057

main90561-08057

91511B0610

main91511-B0610

91511B0850

main91511-B0850

9321925020

main93219-25020

9331514012

main93315-14012

31 parts on this diagram · 8 diagrams in section
