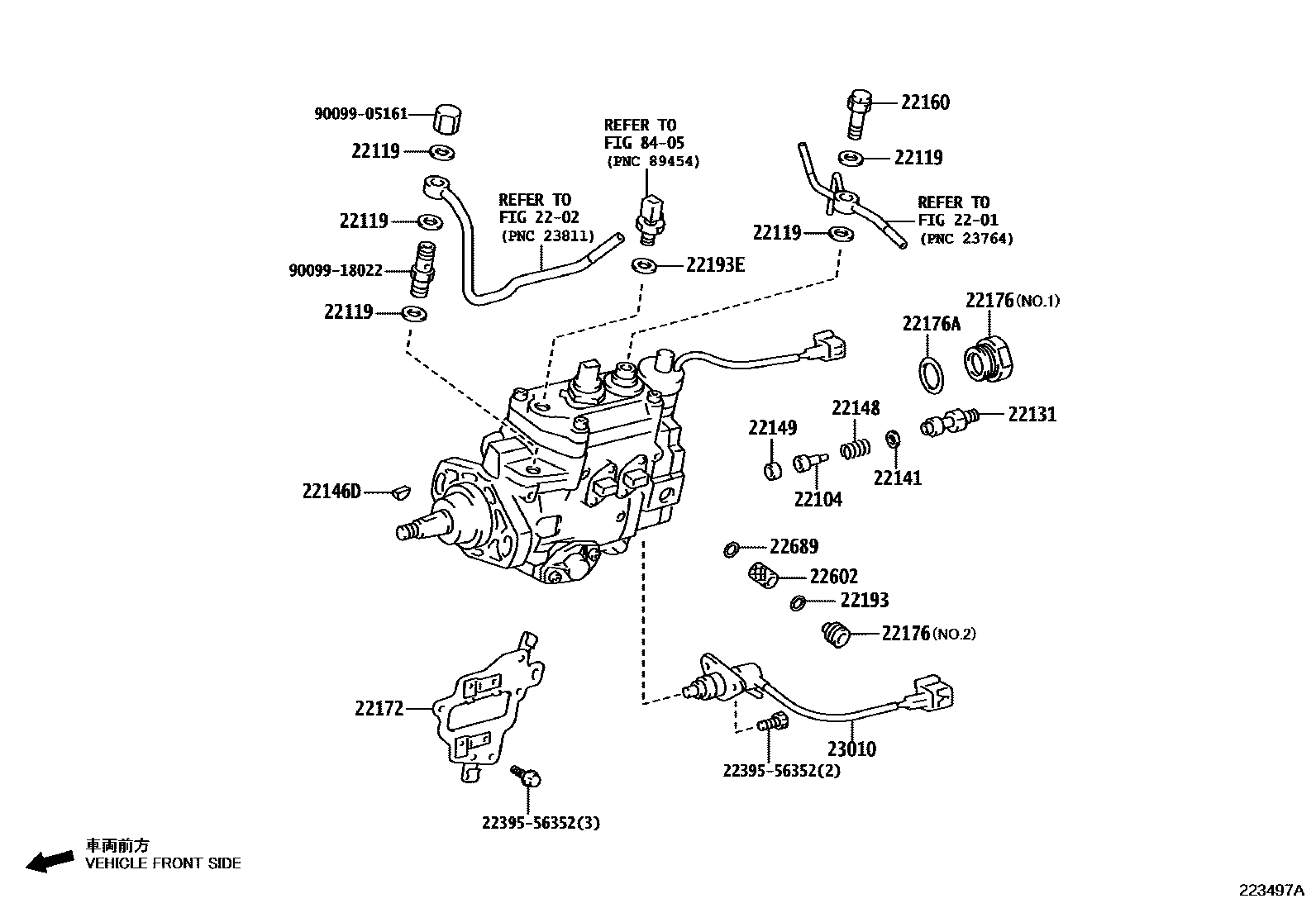

INJECTION PUMP BODY

2201

2202

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-5B440i2LTE..LXS11199512-199908

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109i2LTE..LXS11199512-199908

22131HOLDER, DELIVERY VALVE

main22131-5B250i2LTE..LXS11199512-199908

22141SEAT, DELIVERY VALVE SPRING

main22141-54010i2LTE..LXS11199512-199908

22146DKEY(FOR DRIVE GEAR)

main90099-13017i2LTE..LXS11199512-199908

22148SPRING, DELIVERY VALVE

main22148-5B250i2LTE..LXS11199512-199908

22149GASKET, DELIVERY VALVE

main22149-56351i2LTE..LXS11199512-199908

22160SCREW SUB-ASSY, OVERFLOW

main22160-54271i2LTE..LXS11199512-199908

22172CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-67030i2LTE..LXS11199512-199908

22176PLUG, DISTRIBUTIVE HEAD

main22176-54640i2LTE..LXS11199512-199908

main22176-5B302i2LTE..LXS11199512-199908

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i2LTE..LXS11199608-199908

main90099-14052i2LTE..LXS11199512-199608

sub22193-54772

22193RING, O(FOR LEVER CONNECTING PIN)

main22193-5B302i2LTE..LXS11199512-199908

22193ERING, O(FOR FUEL TEMPERATURE SENSOR)

main22193-67030i2LTE..LXS11199512-199908

22602FILTER SUB-ASSY, FUEL INJECTION PUMP

main22602-56350i2LTE..LXS11199512-199908

22689WASHER(FOR SWIVEL NIPPLE)

main22689-56350i2LTE..LXS11199512-199908

23010VALVE ASSY, TIMING CONTROL

main23010-54040i2LTE..LXS11199512-199908

sub23010-67030

8405

2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56352

9009905161

main90099-05161

9009918022

main90099-18022

22 parts on this diagram · 1 diagram in section
