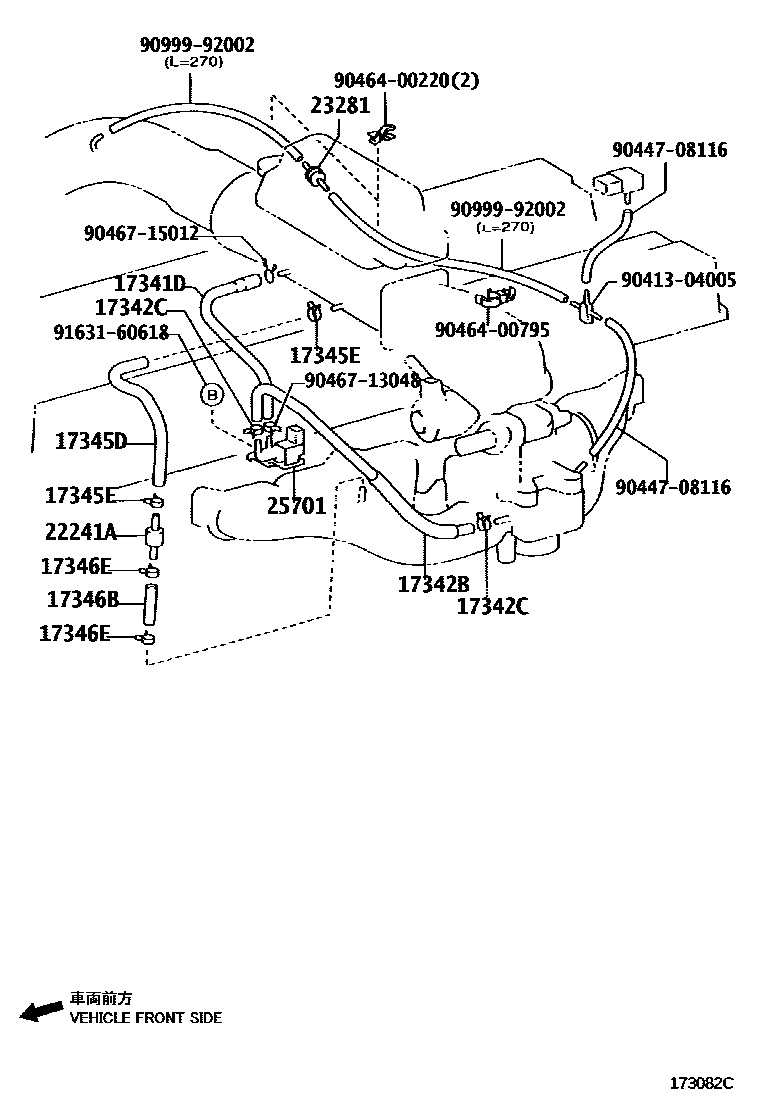

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

17341DHOSE, NO.1(FOR IDLE-UP)

main17341-70270i1GGPE..GXS10¥1,390200110-200210

main17341-74270i4SFE..SXS11¥650199604-200108

17342BHOSE, NO.2(FOR IDLE-UP)

main17342-70140i1GGPE..GXS10¥1,820200110-200210

main17342-74080i4SFE..SXS11¥660199604-200108

17342CCLIP, NO.2(FOR IDLE-UP HOSE)

main90467-13048i1GGPE..GXS10¥230200110-200210

17345DHOSE, AIR, NO.5

main17345-70020i1GGPE..GXS10¥1,240200110-200210

17345ECLAMP OR CLIP(FOR AIR HOSE, NO.5)

main90467-15012i1GGPE..GXS10¥200200110-200210

17346BHOSE, AIR, NO.6

main17346-70020i1GGPE..GXS10¥670200110-200210

17346ECLIP(FOR AIR HOSE NO.6)

main90467-15012i1GGPE..GXS10¥200200110-200210

22241ALIMITTER VACUUM

main22241-70020i1GGPE..GXS10¥1,900200110-200210

23281VALVE, VACUUM TRANSMITTING, NO.1

main90925-04004i3YPE..YXS1#¥1,020200108-200210

25701VALVE SET, EMISSION CONTROL

main25701-70010i1GGPE..GXS10¥14,400200110-200210

9041304005

main90413-04005¥190

9044708116

main90447-08116¥860

9046400220

main90464-00220¥230

9046400795

main90464-00795¥110

9046713048

main90467-13048¥230

9046715012

main90467-15012¥200

9099992002

main90999-92002¥460

9163160618

main91631-60618¥110

18 parts on this diagram · 10 diagrams in section
