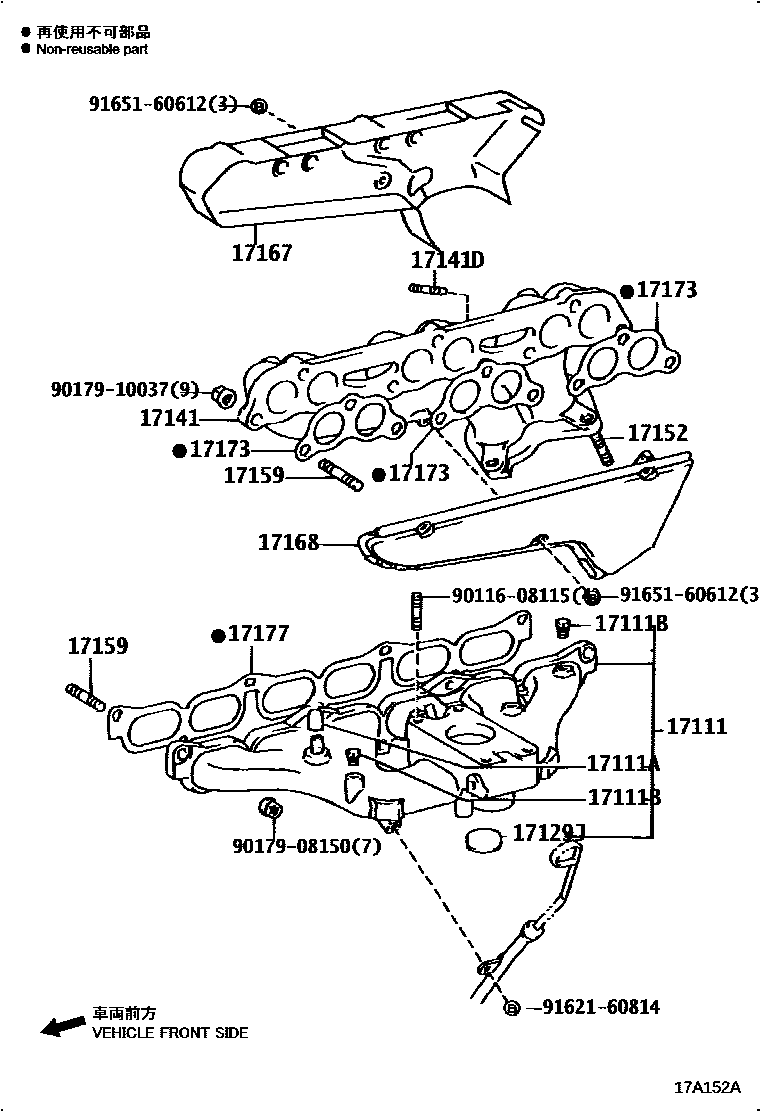

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

17111MANIFOLD, INTAKE

main17101-54092i2LTE..LXS11199512-199908

main17101-70100i1GFE..GBS12,GXS12200108

main17101-70110i1GGPE..GXS10200110-200210

main17101-74250i4SFE..SXS11199604-200108

main17101-74341i3SFE..SXS13200108

main17101-75090i1TRFPE..TSS10,11200808

main17101-79015i1GGPE..GXS10199512-200102

main17111-73020i3YPE..YXS1#199512-200108

main17120-0C010i1TRFE..TSS13200709-201508

sub17120-0C011

main17120-0C011i1TRFE..TSS13201509

17111APLUG, NO.1

main90339-11002i1GGPE..GXS10199512-200102

17111BPLUG, NO.2

main90345-51025i1GGPE..GXS10199512-200102

main96411-44000i3SFE..SXS13199604-200108

17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)

main96411-43000i1GGPE..GXS10199512-200210

17141MANIFOLD, EXHAUST

main17140-70060i1GFE..GXS12200108

main17140-70090i1GFE..GBS12200210

main17141-54100i2LTE..LXS11199512-199908

main17141-70080i1GGPE..GXS10199512-200102

main17141-70100i1GGPE..GXS10200110-200210

main17141-73021i3YPE..YXS1#199512-200108

main17141-73030i3YPE..YXS1#200108

main17141-74101i4SFE..SXS11199604-199701

main17141-74220i3SFE..SXS13199701-200108

main17141-75140i1TR#..TSS1#200709

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08128i3YPE..YXS1#199512-200210

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i4SFE..SXS11199604-200108

main90116-10088i2LTE..LXS11199512-199908

main90116-10146i3YPE..YXS1#199512-200210

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08225i1GGPE..GXS10199512-200210

main90116-08375i4SFE..SXS11199604-200108

sub92122-60822

main90116-10063i3SFE..SXS13199604-200108

main90116-10063i1GGPE..GXS10199512-200210

main90116-10063i3YPE..YXS1#199512-200108

main90116-10205i1GFE..GBS12,GXS12200108

main92132-C0832i1GFE..GBS12,GXS12200108

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54100i2LTE..LXS11199512-199908

main17167-70040i1GGPE..GXS10199512-200102

main17167-70070i1GFE..GXS12200108

main17167-70080i1GGPE..GXS10200110-200210

main17167-73030i3YPE..YXS1#199512-200108

main17167-74121i4SFE..SXS11199604-199701

main17167-74260i3SFE..SXS13199701-200108

main17167-75181i1TR#..TSS1#200709

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main12521-72010i3YPE..YXS1#199512-200210

main12521-73010i3YPE..YXS1#200210

main17168-54030i2LTE..LXS11199512-199908

main17168-70020i1GGPE..GXS10199512-200102

main17168-70050i1GFE..GXS12200108

main17168-73030i3YPE..YXS1#199512-200108

sub17168-73040

main17168-73040i3YPE..YXS1#200108

main17168-74050i3SFE..SXS13199604-200108

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54050i2LTE..LXS11199512-199908

main17173-70031i1GGPE..GXS10199512-200210

main17173-70050i1GFE..GBS12,GXS12200108

main17173-74040i4SFE..SXS11199604-200108

main17173-75030i1TR#..TSS1#200709

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0C010i1TRFE..TSS13200709

main17177-54021i2LTE..LXS11199512-199908

main17177-70050i1GFE..GBS12,GXS12200108

main17177-74070i3SFE..SXS13199604-200108

main17177-75050i1TRFPE..TSS10,11200808

main17177-88302i1GGPE..GXS10199512-200210

9011608115

main90116-08115

9017908150

main90179-08150

9017910037

main90179-10037

9162160814

main91621-60814

9165160612

main91651-60612

17 parts on this diagram · 12 diagrams in section
