VENTILATION HOSE

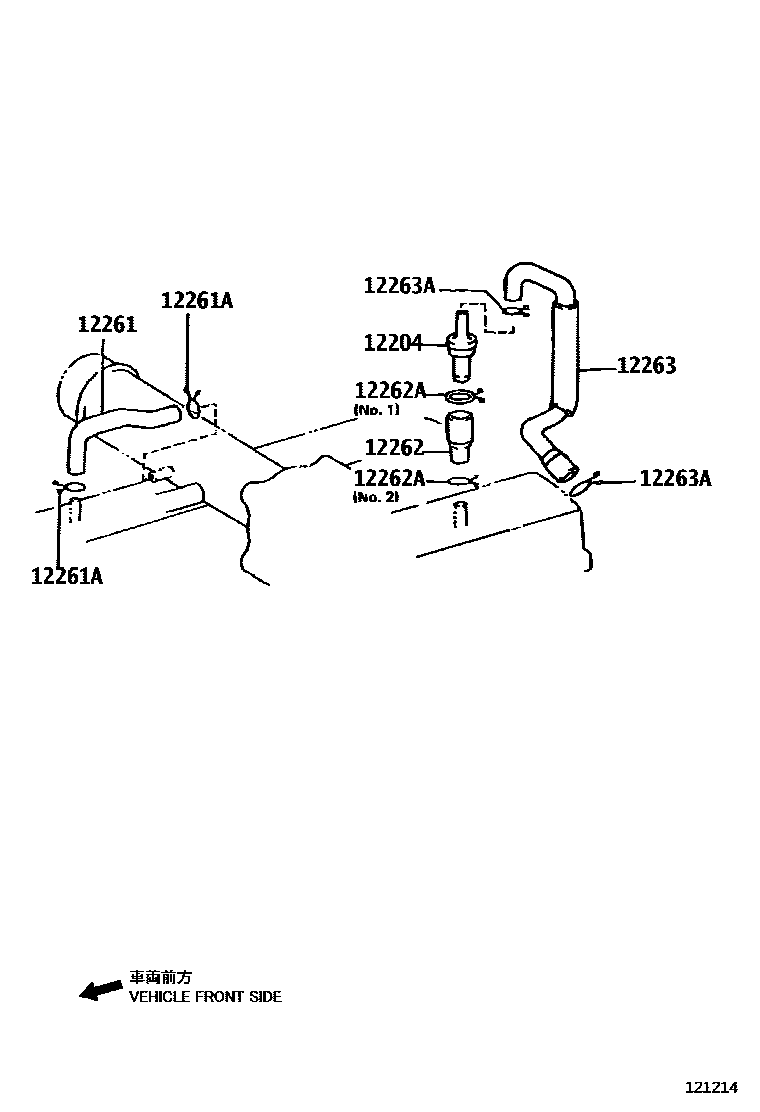

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-0C010i200709-201607
main12204-0C040i201607
main12204-15022i199512-200210
main12204-70020i200108
main12204-74020i199604-199609
main12204-74030i199609-200108
main12204-75030i200808
12261HOSE, VENTILATION
main12261-54090i199512-199908
main12261-70051i199512-200102
main12261-70080i200108
main12261-70090i200210
main12261-70100i200110-200111
sub12261-70101
main12261-70101i200111-200210
main12261-73040i199512-200108
main12261-74100i199604-199609
main12261-74200i199609-200108
main12261-75090i200709-201607
main12261-75130i200808
main12261-75150i201607
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14001i199604-200108
main90467-14001i200709
main90467-15006i199512-200108
main90467-15006i200808
main90467-15012i200110-200210
main90467-15016i199604-200108
sub96135-51400
main90467-15019i199512-200102
main90467-18003i199512-199908
main96135-51400i200108-200707
sub96135-41400
12262HOSE, VENTILATION, NO.2
main12262-54031i199512-199908
main12262-70040i199512-200102
main12262-70050i200108
main12262-70060i200110-200210
main12262-73050i199512-200108
main12262-74070i199604-199609
main12262-74120i199609-199702
main12262-74140i199702-200108
main12262-75190i200709
main12262-75220i200808
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-14001i200108
main90467-14017i199512-200102
main90467-14043i199604-200108
main90467-15012i200110-200111
main90467-17012i199512-200102
main90467-18003i199512-200210
main90467-21004i200808-201801
main90467-21004i200709-201801
main90467-24038i200709-201801
12263HOSE, VENTILATION, NO.3
main12263-70030i199512-200102
main12263-70050i200110-200111
sub12263-70051
main12263-70051i200111-200210
main12263-75060i200709-201802
sub12263-75070
main12263-75080i200808
12263ACLIP(FOR VENTILATION HOSE)
main90467-14001i200709-201607
main90467-14017i199512-200210
main90467-15120i201407-201607
main90467-16035i201002-201406
main90467-17012i200709-201002
main90467-21004i200808

7 parts on this diagram · 9 diagrams in section
