TIMING GEAR COVER & REAR END PLATE

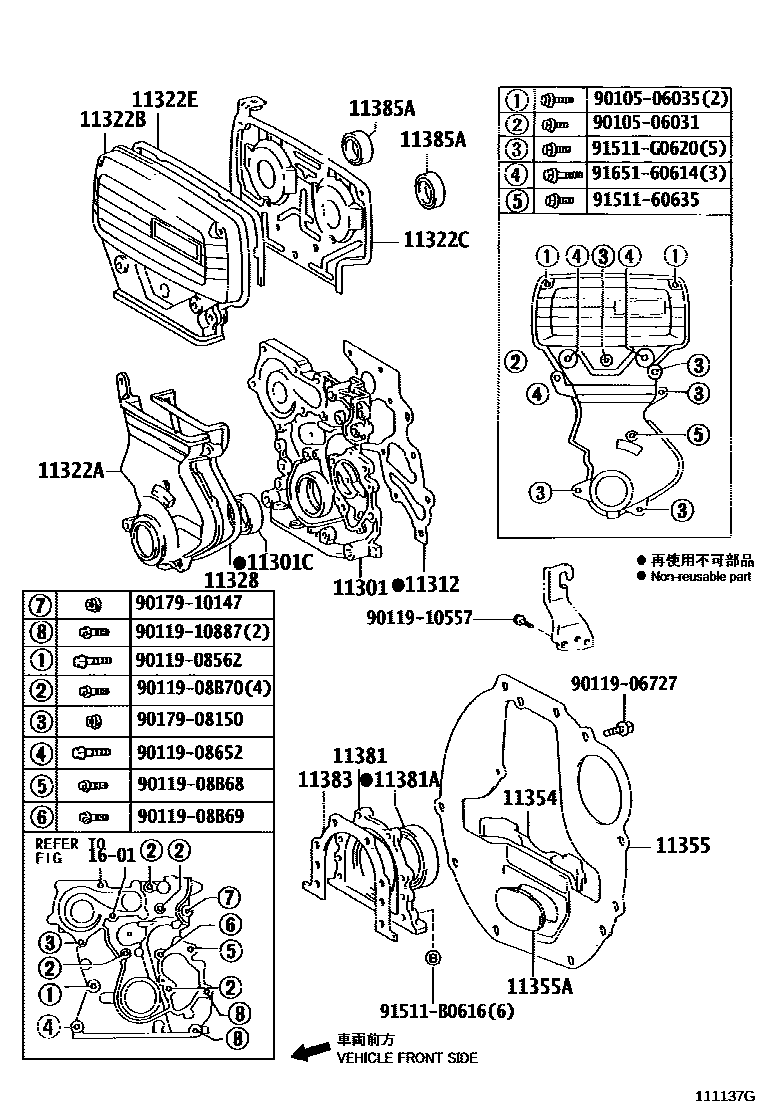

Parts diagram
11301CASE SUB-ASSY, TIMING GEAR
main11301-71010i199512-200108
main11311-54052i199512-199908
main11311-70060i200108-200207
sub11311-70061
main11311-70061i200207-200407
sub11311-70062
main11311-70062i200407
main11311-70070i200210-200304
sub11311-70071
main11311-70071i200304-200407
sub11311-70072
main11311-70072i200407
main11311-79045i199512-200210
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
main90311-42030i199512-199605
sub90311-42031
main90311-42031i199605-199908
main90311-45010i199512-200210
main90311-45015i200108
main90311-48020i200210
main90311-48029i200709-201410
sub90311-48031
main90311-48031i201411
11312GASKET, FRONT END PLATE
main11312-54021i199512-199908
main11312-70014i199512-199808
sub11312-70020
main11312-70020i199808-200102
11322ACOVER, TIMING BELT, NO.1
main11302-70030i200108
main11302-70050i200210
main11321-70040i199512-200210
11322BCOVER, TIMING BELT, NO.2
main11322-54020i199512-199708
sub11322-54021
main11322-54021i199708-199908
sub11322-54022
main11322-88300i199512-200210
11322CCOVER, TIMING BELT, NO.3
main11323-70030i199512-200210
11322EGASKET, TIMING BELT COVER, NO.2
main11329-88300i199512-200210
11328GASKET, TIMING GEAR OR CHAIN COVER
main11328-54021i199512-199908
main11328-70040i199512-200210
main11328-70050i200108
main11328-70060i200210
main11328-71012i199512-200108
main11328-74060i199604-200108
11354SEAL, FLYWHEEL HOUSING DUST
main11354-54010i199512-199908
main11354-70010i199512-200102
main11354-71010i199512-200108
main11354-75030i200709
11355PLATE, REAR END
main11355-54030i199604-199908
main11355-54040i199512-199908
main11355-63010i199604-200108
main11355-70020i199512-200102
main11355-71010i199512-200108
main11355-71021i199512-200108
main11355-75021i200709
11355APLUG, HOLE(FOR REAR END PLATE)
main90950-01160i199512-200108
main90950-01263i199512-199908
main90950-01307i199512-200102
11381RETAINER, ENGINE REAR OIL SEAL
main11381-54020i199512-199908
sub11381-54030
sub90116-08404
main11381-63012i199604-200108
main11381-70010i199512-200102
main11381-71010i199512-200108
main11381-75010i200709-200812
sub11381-75011
main11381-75011i200812-201405
sub11381-75012
main11381-75012i201406
11381ASEAL, ENGINE REAR OIL
main90311-75007i199512-200102
main90311-80009i199512-200009
sub90311-80014
main90311-80014i200009-200108
main90311-85006i199604-199801
sub90311-85009
main90311-85007i199604-199710
main90311-85007i199512-199703
main90311-85008i199703-199908
main90311-85008i199710-200108
main90311-85009i200108
main90311-85009i199801-200108
main90311-88005i200709-201410
sub90311-88006
main90311-88006i201411
11383GASKET, ENGINE REAR OIL SEAL RETAINER
main11383-54030i199512-199908
main11383-70011i199512-200102
main11383-71010i199512-199710
main11383-73010i199710-200108
main11383-74021i199604-200108
11385RETAINER, CAMSHAFT OIL SEAL
main11382-54020i199512-199908
11385ASEAL, OIL(FOR CAMSHAFT)
main90311-35021i199512-200210
1601
9010506031
main90105-06031
9010506035
main90105-06035
9011906727
main90119-06727
9011908562
main90119-08562
9011908652
main90119-08652
9011908B68
main90119-08B68
9011908B69
main90119-08B69
9011908B70
main90119-08B70
9011910557
main90119-10557
9011910887
main90119-10887
9017908150
main90179-08150
9017910147
main90179-10147
9151160635
main91511-60635
91511B0616
main91511-B0616
91511G0620
main91511-G0620
9165160614
main91651-60614

33 parts on this diagram · 10 diagrams in section
