SHORT BLOCK ASSEMBLY

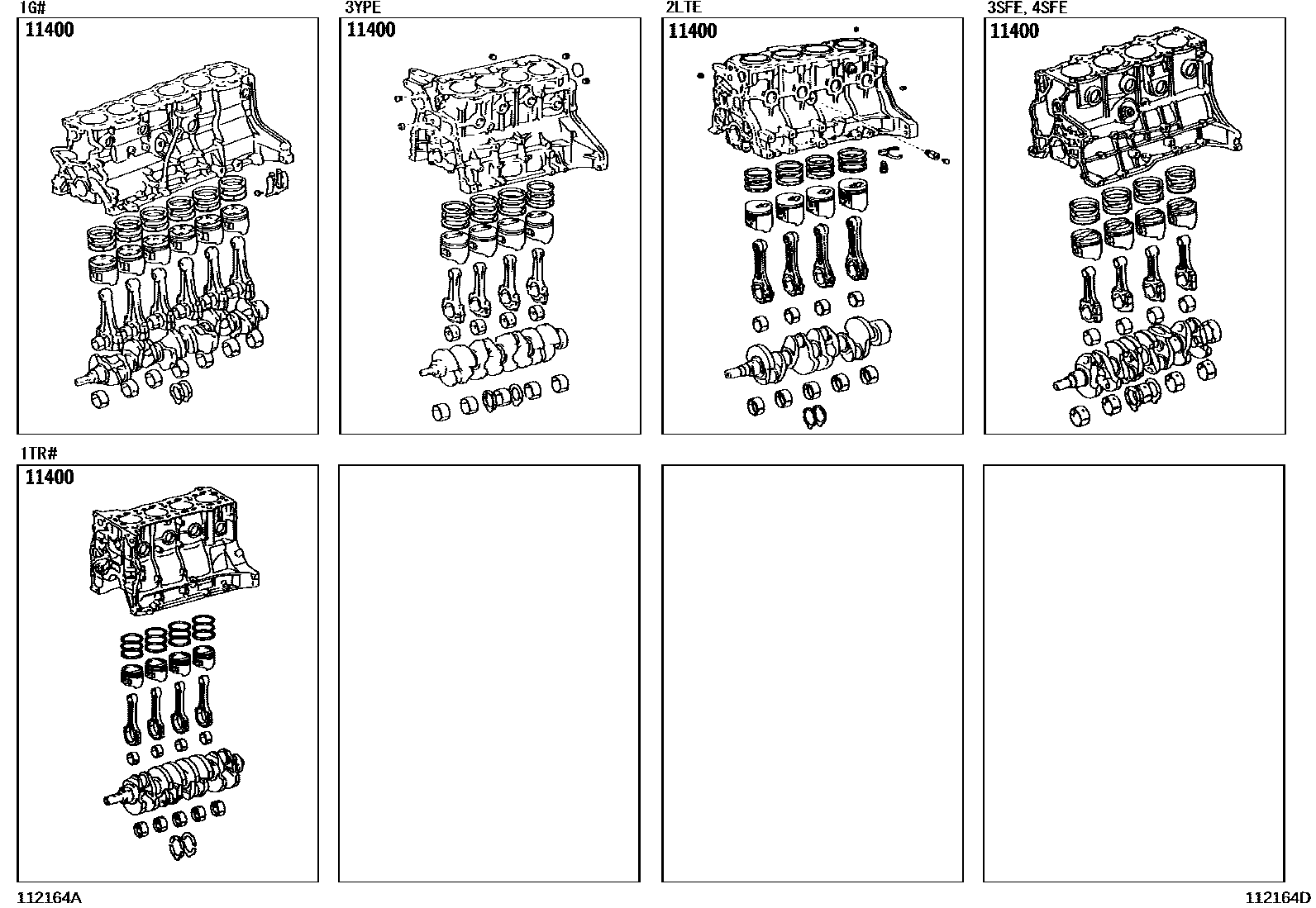

Parts diagram

11400BLOCK ASSY, SHORT

main11400-54151i199512-199908

main11400-70111i199512-199805

main11400-70112i199805-199810

main11400-70120i200108-200708

main11400-70160i199810-200102

main11400-70170i200110-200210

main11400-70180i200210-200808

main11400-73100i199512-200808

main11400-74210i199604-200108

main11400-74400i200108-200707

main11400-75140i200709

main11400-75530i200808

1 parts on this diagram · 1 diagram in section
