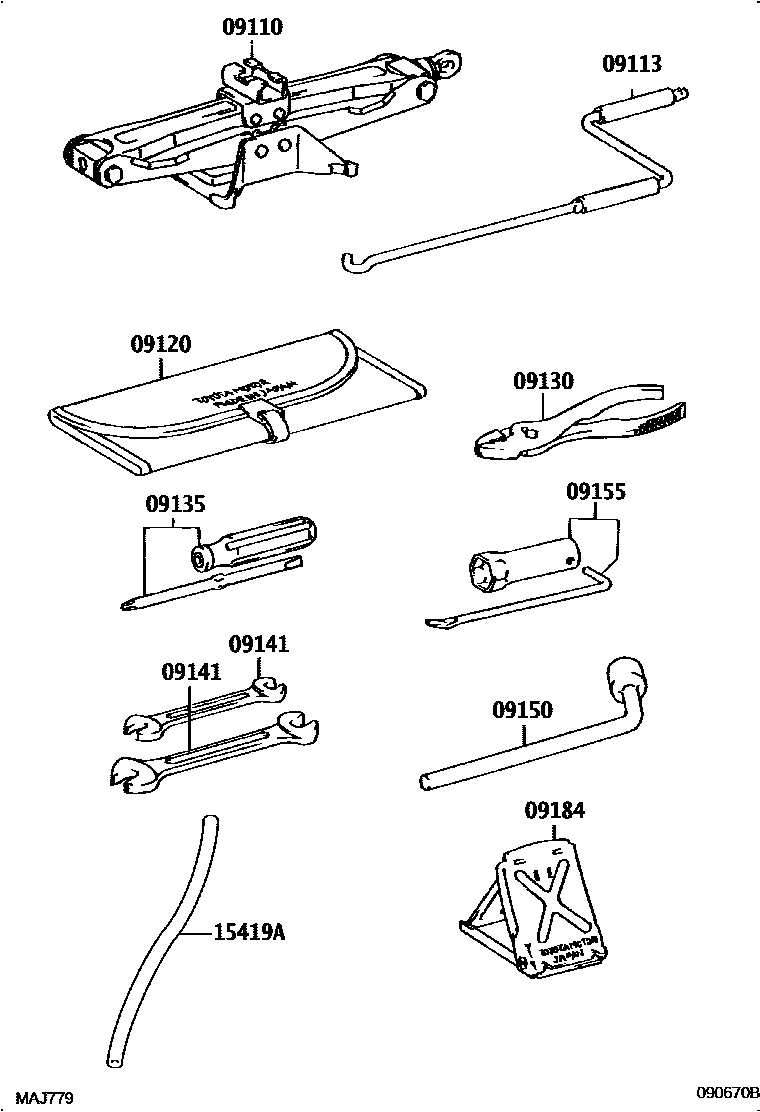

STANDARD TOOL

09110JACK ASSY

main09111-20101iYXS10..CRW..4HC199512-200708

09113HANDLE, JACK

main09113-14030iGXS12199512-200708

main09113-44010iGBS12200210

09120BAG, TOOL

main09120-16030iGXS10199512-200708

09130PLIERS

main99913-11500iYXS10..4HC199512-200708

09135DRIVER, SCREW

main99915-10700iTSS1#199512-200708

09141SPANNER

main99914-10810iYXS10..4H;YXS10..SED..4HC199512-200708

main99914-11214iYXS10..4HC199512-200708

09150WRENCH, HUB NUT BOX

main09150-40010iGXS10,LXS11,SXS11,YXS1#199512-200808

09155WRENCH, SPARK PLUG

main09155-00100iGXS10199512-200210

main09155-41010iYXS1#199512-200808

main09155-74010iSXS13199604-200707

09184STOPPER, WHEEL

main09184-00010iGXS10,LXS11,SXS11,YXS1#199512-200808

15419AHOSE, OIL FILTER OUTLET

main15419-75010i1TR#..TSS1#201206

10 parts on this diagram · 1 diagram in section
