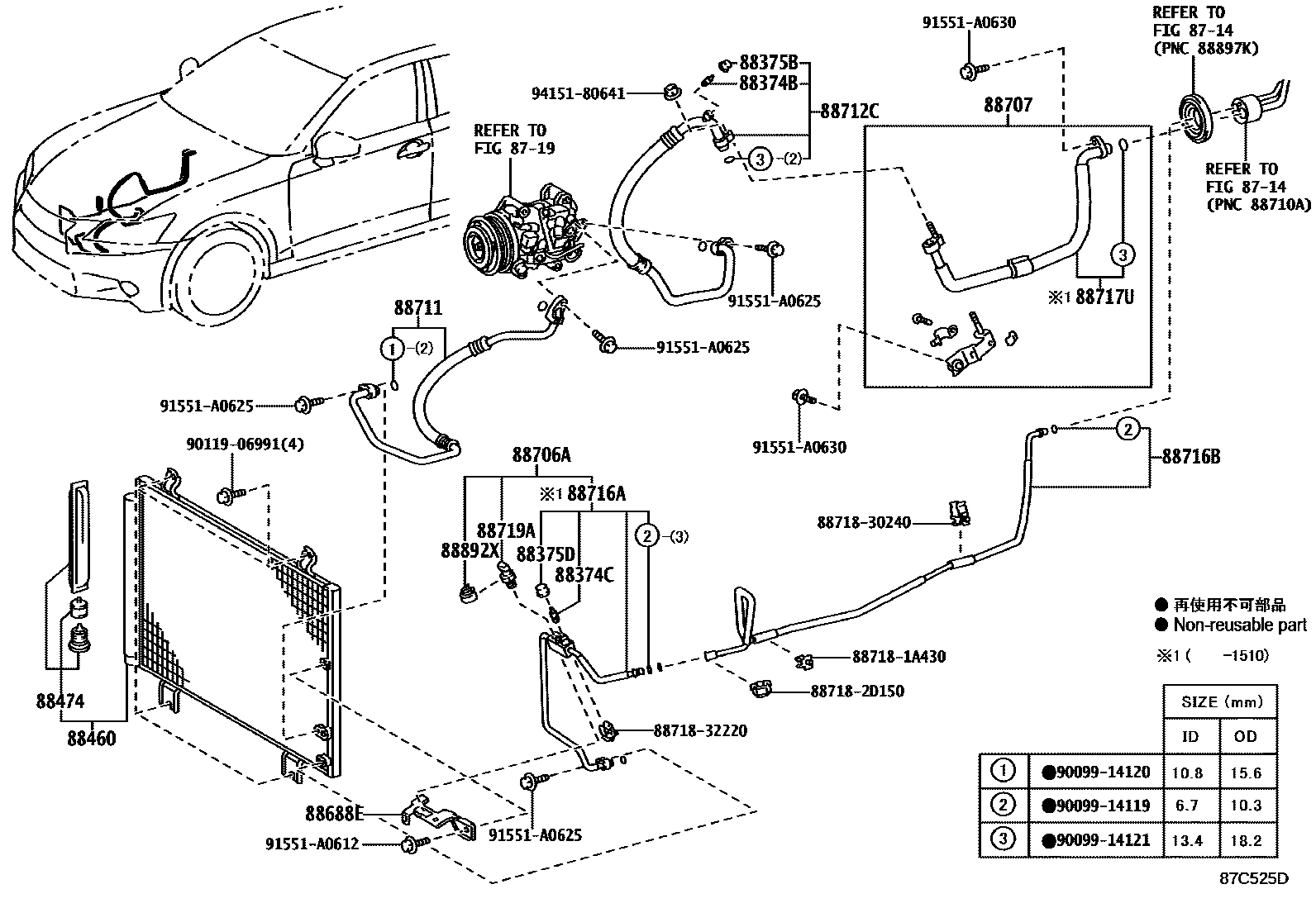

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGRL10201112-202007

88374CVALVE, SERVICE, NO.2

main88374-30010iGRL10201112-202007

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iGRL10201112-202007

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iGRL10201112-202007

88460CONDENSER ASSY, COOLER

main88460-24140iAWL10,GWL10201510-202007

main88460-30B20iGRL12,16201510-202007

main88460-30B40iGRL1#201112-201608

main88460-30B60iAWL10,GWL10201203-201510

main88460-30B80iARL10201609-202007

88474DRYER, COOLER

main88474-12010iARL10,GRL12,16201510-202007

main88474-17010iGRL11,15;GRL10..8FC201112-201608

main88474-47020iAWL10,GWL10201203-202007

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-3F020iGRL10201112-202007

88706ATUBE SUB-ASSY, LIQUID, A

main88706-24180iGRL11201510-201608

main88706-24190iAWL10,GWL10201510-202007

main88706-30A20iGRL12,16201510-202007

main88706-30A30iARL10201609-202007

main88706-3A590iGRL1#201112-201306

sub88706-3A591

main88706-3A591iGRL11,15;GRL10..8FC201307-201510

main88706-3A610iGWL10201203-201306

sub88706-3A611

main88706-3A611iAWL10,GWL10201307-201510

88707PIPE SUB-ASSY, SUCTION

main88707-30A30iGWL10201203-201310

sub88707-30A31

main88707-30A31iAWL10,GWL10201310-202007

main88707-30A40iGRL1#201112-201310

sub88707-30A41

main88707-30A41iGRL1#201310-202007

main88707-53140iARL10201609-202007

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-30A10iAWL10201309-202007

sub88711-30A11

main88711-30A30iGRL12,16201510-202007

sub88711-30A31

main88711-30A40iARL10201609-202007

sub88711-30A41

main88711-3A700iGRL11201112-201608

main88711-3A720iGWL10201203-202007

88712CHOSE, SUCTION

main88712-30360iGRL11;GRL10..8FC201112-201608

main88712-30370iGRL15201112-201510

main88712-30410iGWL10201203-202007

main88712-30A00iGRL12201510-202007

main88712-30A10iGRL16201510-202007

main88712-3F070iAWL10201309-202007

main88712-53230iARL10201609-202007

sub88712-53231

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-3A010iGRL1#201112-201306

sub88716-3A011

main88716-3A011iGRL10201307-201510

main88716-3A030iGWL10201203-201306

main88716-3A031iAWL10,GWL10201307-201510

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-30060iAWL10201203-201310

sub88716-30061

main88716-30061iAWL10,GWL10201310-202007

main88716-30070iGRL10..8FC201112-201310

sub88716-30071

main88716-30071iGRL1#201310-201608

main88716-30B10iGRL12,16201510-202007

main88716-30B20iARL10201609-202007

88717UTUBE, SUCTION, NO.1

main88717-30020iGRL10201112-201310

main88717-30030iAWL10,GWL10201203-201310

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGRL10201112-202007

88892XCOVER, COOLER, NO.2

main88892-50120iGRL10201112-202007

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871830240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30240

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906991

main90119-06991

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

30 parts on this diagram · 5 diagrams in section
