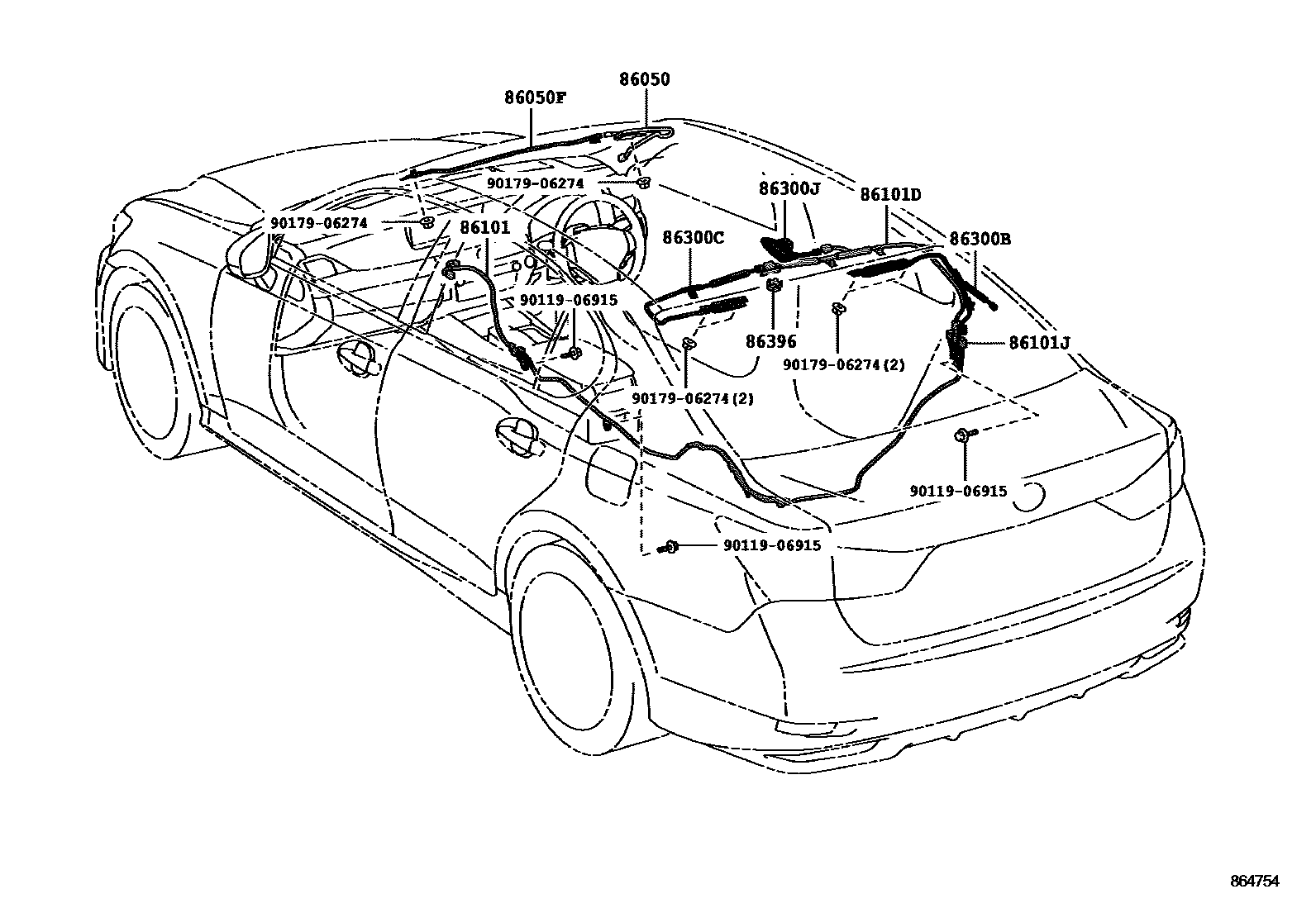

ANTENNA

0001 1 0002 1 0003 1

86050ANTENNA ASSY, TELEVISION

main86050-30290iGRL1#,GWL10201112-201309

main86050-53180iAWL10,GRL1#,GWL10201309-202007

86050FANTENNA ASSY, TELEVISION

main86050-30300iGRL1#,GWL10201112-201309

main86050-53190iARL10,AWL10,GRL1#,GWL10201309-202007

86101CORD SUB-ASSY, ANTENNA

main86101-30L00iGRL10201112-201510

main86101-30P00iARL10,AWL10,GRL1#,GWL10201510-202007

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-30G40iARL10,AWL10,GRL1#,GWL10201409-202007

main86101-30J80iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201409

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-30K30iGRL10201112-202007

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-30C40iGRL10201112-202007

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-30C50iGRL10201112-202007

86300JANTENNA ASSY, ROOF

main86760-30220-A0iAWL10,GRL1#,GWL10201112-201409

WHITE PEARL CS.,077

main86760-30220-A1iAWL10,GRL1#,GWL10201309-201409

WHITE NOVA GF.,083

main86760-30220-B0iAWL10,GRL1#,GWL10201112-201409

MERCURY GRAY MC.,1H9

main86760-30220-B1iAWL10,GRL1#,GWL10201112-201409

SONIC SILVER,1J2

main86760-30220-C0iAWL10,GRL1#,GWL10201112-201409

BLACK,212

main86760-30220-C1iAWL10,GRL1#,GWL10201112-201409

BLACK OPAL MC.,214

main86760-30220-C2iAWL10,GRL1#,GWL10201112-201409

STARLIGHT BLACK GF.,217

main86760-30220-D0iAWL10,GRL1#,GWL10201112-201409

CRIMSON CS. GF.,3S8

main86760-30220-E0iGRL1#,GWL10201112-201309

SLEEK ECRU ME.,4U7

main86760-30220-E1iAWL10,GRL1#,GWL10201112-201409

FIRE AGATE M.M.,4V3

main86760-30220-J0iAWL10,GRL1#,GWL10201112-201409

LAPIS LAZULI MC.,8V3

main86760-30220-J1iAWL10,GRL1#,GWL10201112-201409

METEOR BLUE M.M.,8W3

main86760-53100iAWL10,GRL1#,GWL10201409-202007

86396NUT, ANTENNA

main86396-47010iGRL10201112-201409

9011906915

main90119-06915

9017906274

main90179-06274

11 parts on this diagram · 3 diagrams in section
