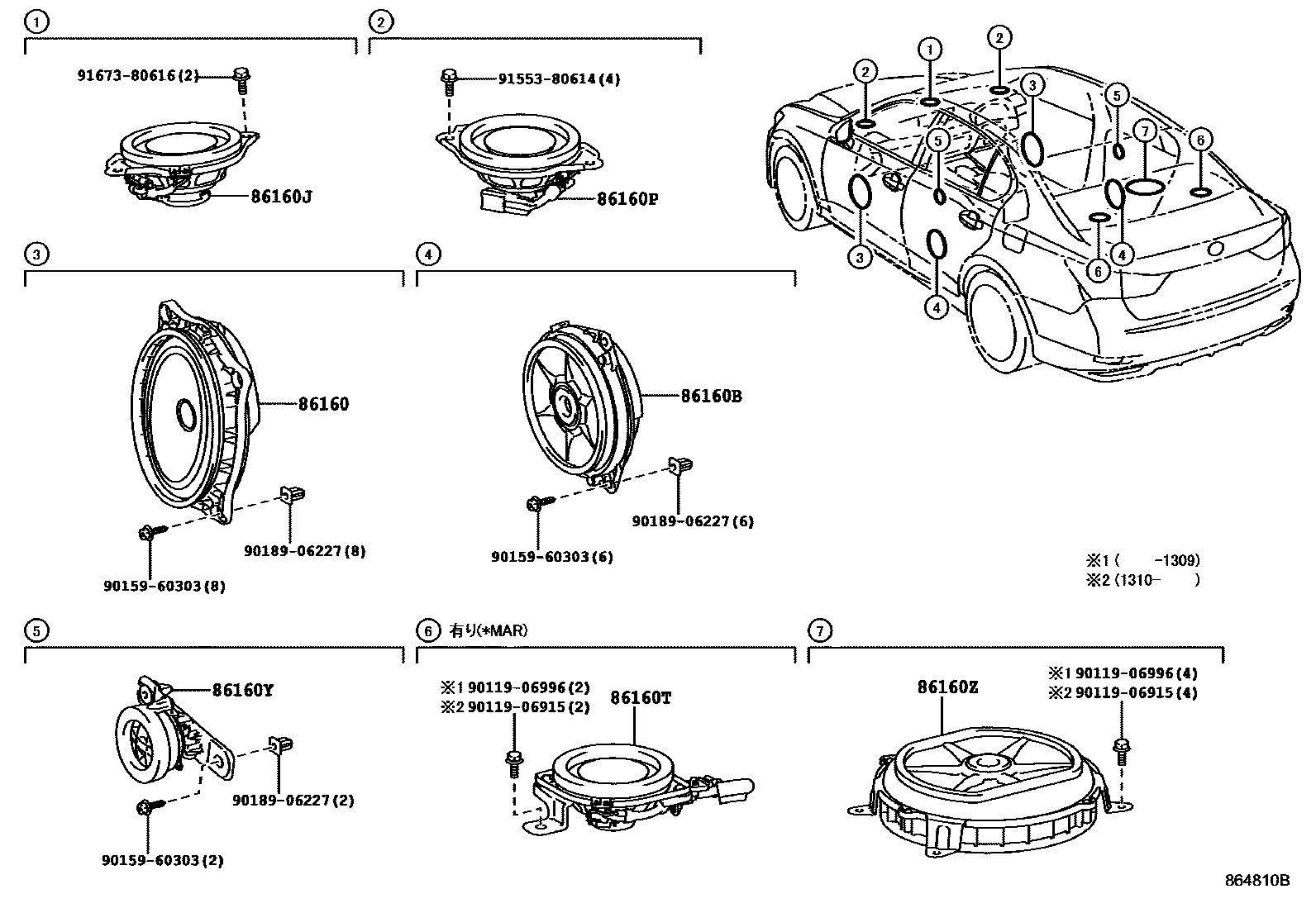

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0WW00×2supersedes 86160-30E10iGRL10201112-201309

86160BSPEAKER ASSY, REAR

main86160-0WW30×2supersedes 86160-30E20iARL10,AWL10,GRL1#,GWL10201510-202007

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WV80supersedes 86160-30E60iARL10,AWL10,GRL1#,GWL10201510-202007

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WV80×2supersedes 86160-30D90iGRL10201112-201309

86160TSPEAKER ASSY, REAR HEADER

main86150-0W190×2iGRL10201112-201309

86160YSPEAKER ASSY, REAR NO.2

main86150-0W180×2supersedes 86150-30380iARL10,AWL10,GRL1#,GWL10201510-202007

86160ZSPEAKER ASSY, REAR NO.3

main86160-0WW40supersedes 86160-30E50iARL10,AWL10,GRL1#,GWL10201510-202007

9011906915

main90119-06915

9011906996

main90119-06996

9015960303

main90159-60303

9018906227

main90189-06227

9155380614

main91553-80614

9167380616

main91673-80616

13 parts on this diagram · 1 diagram in section
