82111WIRE, ENGINE ROOM MAIN

main82111-3AC80iGWL10201203-201309

main82111-3AP30iGWL10201309-201510

main82111-3AW00iGWL10201510-201809

main82111-3AW01iGWL10201809-202007

main82111-3AA90supersedes 82111-3AA80iGRL10,11201112-201309

main82111-3AB10supersedes 82111-3AA80iGRL10,11201112-201309

main82111-3AB30supersedes 82111-3AD20iGRL15201112-201309

main82111-3AD90supersedes 82111-3AA80iGRL10,11201112-201309

main82111-3AM40supersedes 82111-3AM30iGRL10201309-201510

main82111-3AM50supersedes 82111-3AM30iGRL10201309-201510

main82111-3AM70supersedes 82111-3AM30iGRL10201309-201510

main82111-3AM90supersedes 82111-3AM80iGRL11201309-201510

main82111-3AN10supersedes 82111-3AM80iGRL11201309-201510

main82111-3AN30supersedes 82111-3AM80iGRL11201309-201510

main82111-3AN50supersedes 82111-3AN40iGRL15201309-201510

main82111-3AP90supersedes 82111-3AP70iAWL10201309-201510

main82111-3AS00supersedes 82111-3AR80iGRL12201510-201809

main82111-3AS01supersedes 82111-3AR81iGRL12201809-202007

main82111-3AS70supersedes 82111-3AS60iGRL16201510-201809

main82111-3AS71supersedes 82111-3AS61iGRL16201809-202007

main82111-3AT50supersedes 82111-3AW50iAWL10201510-201809

main82111-3AT51supersedes 82111-3AW51iAWL10201809-202007

main82111-3AU20supersedes 82111-3AU10iGRL11201510-201608

main82111-3FF60supersedes 82111-3FF50iARL10201609-201809

main82111-3FF61supersedes 82111-3FF51iARL10201809-202007

82112WIRE, ENGINE ROOM, NO.2

main82112-30D80supersedes 82112-30D60iGRL11201212-201309

main82112-30E50supersedes 82112-30E20iGWL10201203-201309

main82112-30J00supersedes 82112-30G60iGRL1#201309-201510

main82112-30K20supersedes 82112-30J60iAWL10,GWL10201309-201510

main82112-30M20supersedes 82112-30L00iGRL12,16201510-202007

main82112-30P80supersedes 82112-30P70iGRL11201510-201608

main82112-30Q40supersedes 82112-30Q30iARL10201609-202007

main82112-30S60supersedes 82112-30S70iAWL10,GWL10201510-202007

82113WIRE, ENGINE ROOM, NO.3

main82113-30730iGRL10201112-201309

main82113-30740iGRL15201112-201510

main82113-30830iARL10,AWL10,GRL11,12,GWL10201510-202007

82114WIRE, ENGINE ROOM, NO.4

main82114-30200iGRL1#,GWL10201112-201309

main82114-30280iAWL10,GRL1#,GWL10201309-201510

main82114-30290iARL10,AWL10,GRL1#,GWL10201510-202007

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-30K40iAWL10,GWL10201203-201510

main82817-30M20iGRL11,15;GRL10..8FC201112-201510

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-30K30iARL10,AWL10,GRL1#,GWL10201510-202007

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-30A90iARL10,GRL1#201701-202007

main82817-30Q30iAWL10,GWL10201203-201510

main82817-30Z00iARL10,GRL1#201510-201612

main82817-3AK30iAWL10,GWL10201701-202007

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-30K20iGRL11,15;GRL10..8FC201112-201510

82817TPROTECTOR, WIRING HARNESS, NO.15

main82817-30Q70iARL10,AWL10,GRL1#,GWL10201510-202007

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-0N100iARL10201609-202007

main82817-30D60iGRL10201112-201309

main82817-3AA00iAWL10201510-202007

82818CPROTECTOR, WIRING HARNESS, NO.4

main82817-30B10iGRL16201510-202007

82821ACOVER, CONNECTOR

main82821-35040iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

82821NCOVER, CONNECTOR

main82821-45010×2iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

82824CONNECTOR, WIRING HARNESS

main82114-22050iARL10,AWL10,GRL1#,GWL10201510-202007

main82824-50430iAWL10,GRL1#,GWL10201112-201504

82824ACONNECTOR, WIRING HARNESS

main82824-30180iGRL1#201112-201309

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-30040iARL10,GRL1#201510-202007

8401

8417

9011906915

main90119-06915

9011906995

main90119-06995

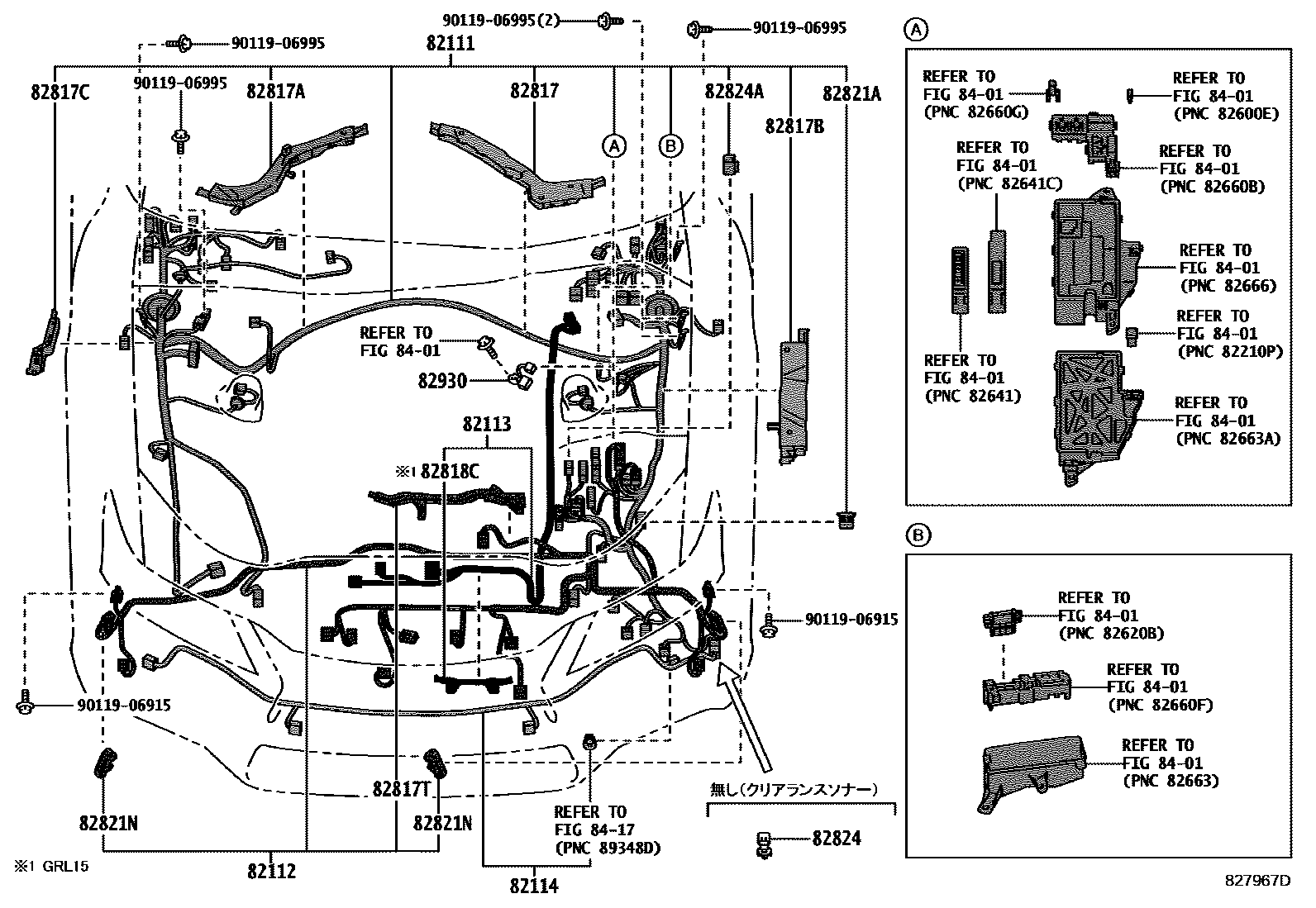

20 parts on this diagram · 24 diagrams in section
