ARMREST & VISOR

0001 1������ 0002 1����� & ���������� 0003 1����������(����������)

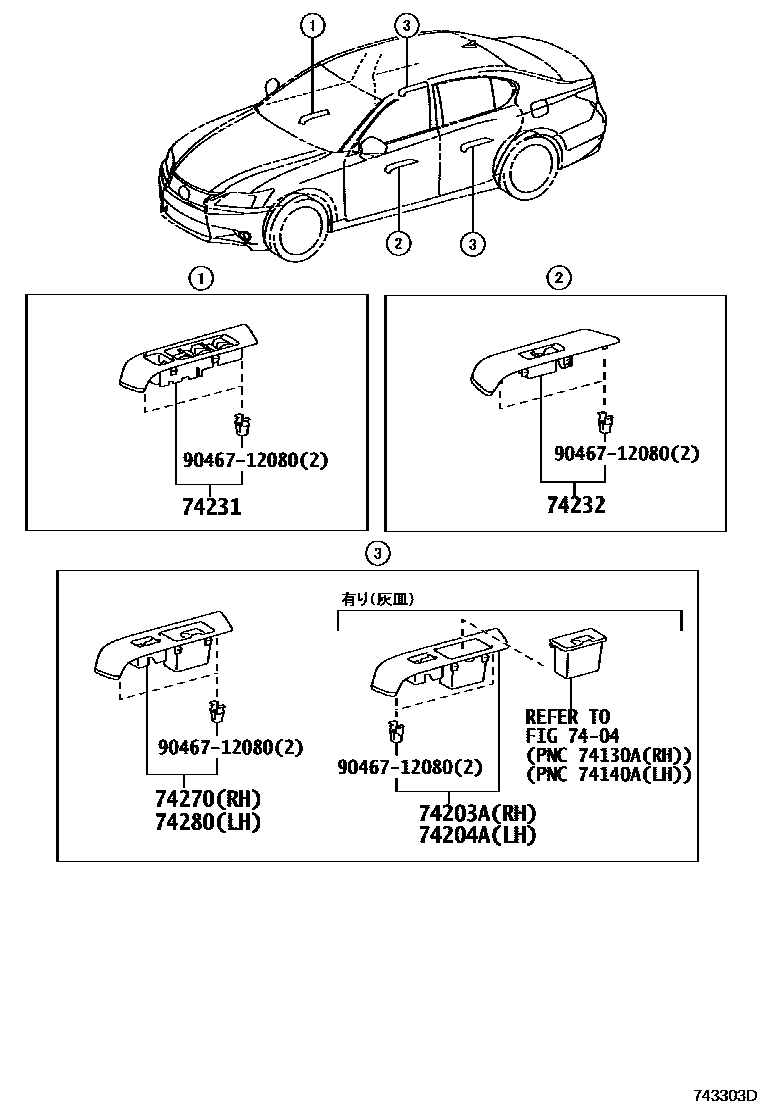

7404

74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH

main74203-30100iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH

main74204-30100iGRL10201112-202007

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-30350iAWL10,GRL1#,GWL10201112-202007

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-30270iAWL10,GRL1#,GWL10201112-202007

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74270-30180iGRL10201112-202007

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74280-30120iGRL10201112-202007

9046712080

main90467-12080

8 parts on this diagram · 3 diagrams in section
