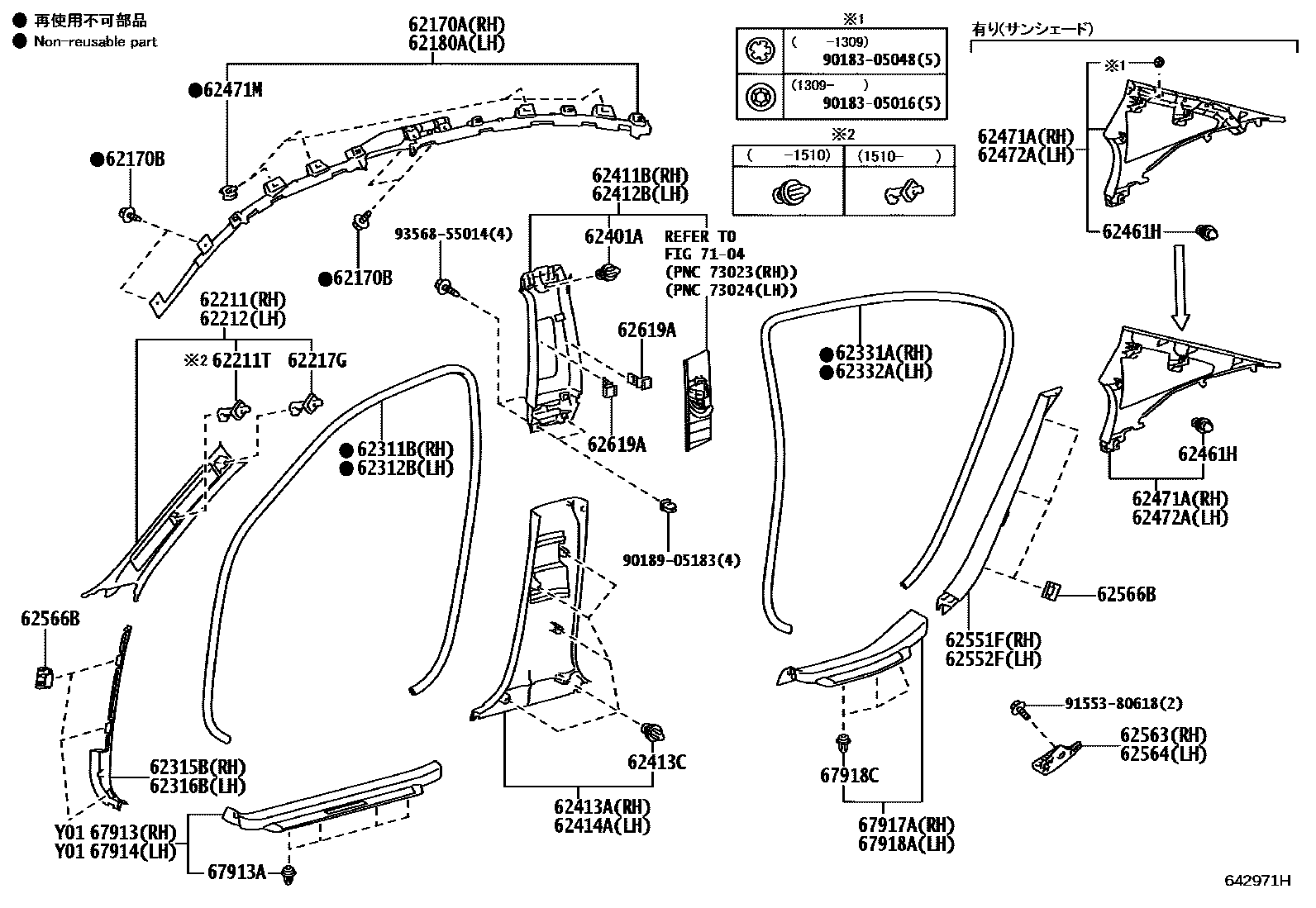

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
IVORY,TRIM00,01,03,50,51
IVORY,TRIM00,01,02,03,50,51,52
LT.GRAY,TRIM1#,20,21,22,23,4#
LT.GRAY,TRIM1#,20,21,23,4#
BLACK,TRIM04,05,24,25,3#,54,55
BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
ECRU,TRIM0#,1#,2#,50,51,52,53,6#
BLACK,TRIM25,26,3#,55,56
BLACK,TRIM25,26,27,3#,4#,55,56
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
IVORY,TRIM00,01,03,50,51
IVORY,TRIM00,01,02,03,50,51,52
LT.GRAY,TRIM1#,20,21,22,23,4#
LT.GRAY,TRIM1#,20,21,23,4#
BLACK,TRIM04,05,24,25,3#,54,55
BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
ECRU,TRIM0#,1#,2#,50,51,52,53,6#
BLACK,TRIM25,26,27,3#,4#,55,56
BLACK,TRIM25,26,3#,55,56
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62315BCOVER, FRONT DOOR OPENING TRIM, RH
sub62315-30121
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
sub62316-30111
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
IVORY,TRIM00,01,02,03,50,51,52
LT.GRAY,TRIM1#,20,21,22,23,4#
BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
ECRU,TRIM0#,1#,2#,50,51,52,53,6#
BLACK,TRIM25,26,3#,55,56
BLACK,TRIM25,26,27,3#,4#,55,56
62412BGARNISH, CENTER PILLAR, UPPER LH
IVORY,TRIM00,01,02,03,50,51,52
LT.GRAY,TRIM1#,20,21,22,23,4#
BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
ECRU,TRIM0#,1#,2#,50,51,52,53,6#
BLACK,TRIM25,26,27,3#,4#,55,56
BLACK,TRIM25,26,3#,55,56
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62471AGARNISH, ROOF SIDE, INNER RH
IVORY,TRIM0#
ECRU,TRIM0#,1#,2#,5#,6#
LT.GRAY,TRIM1#,2#,4#
BLACK,TRIM4#
62472AGARNISH, ROOF SIDE, INNER LH
IVORY,TRIM0#
ECRU,TRIM0#,1#,2#,5#,6#
LT.GRAY,TRIM1#,2#,4#
BLACK,TRIM4#
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
62563PROTECTOR, ROCKER PANEL, INNER REAR RH
62564PROTECTOR, ROCKER PANEL, INNER REAR LH
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62619APLATE, SIDE TRIM SET
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,1#,2#,3#,4#,5#
sub67910-30072
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#
sub67920-30072
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
67918CCLIP(FOR REAR SCUFF PLATE)
7104
9018305016
main90183-05016
9018305048
main90183-05048
9018905183
main90189-05183
9155380618
main91553-80618
9356855014
main93568-55014
41 parts on this diagram · 1 diagram in section
