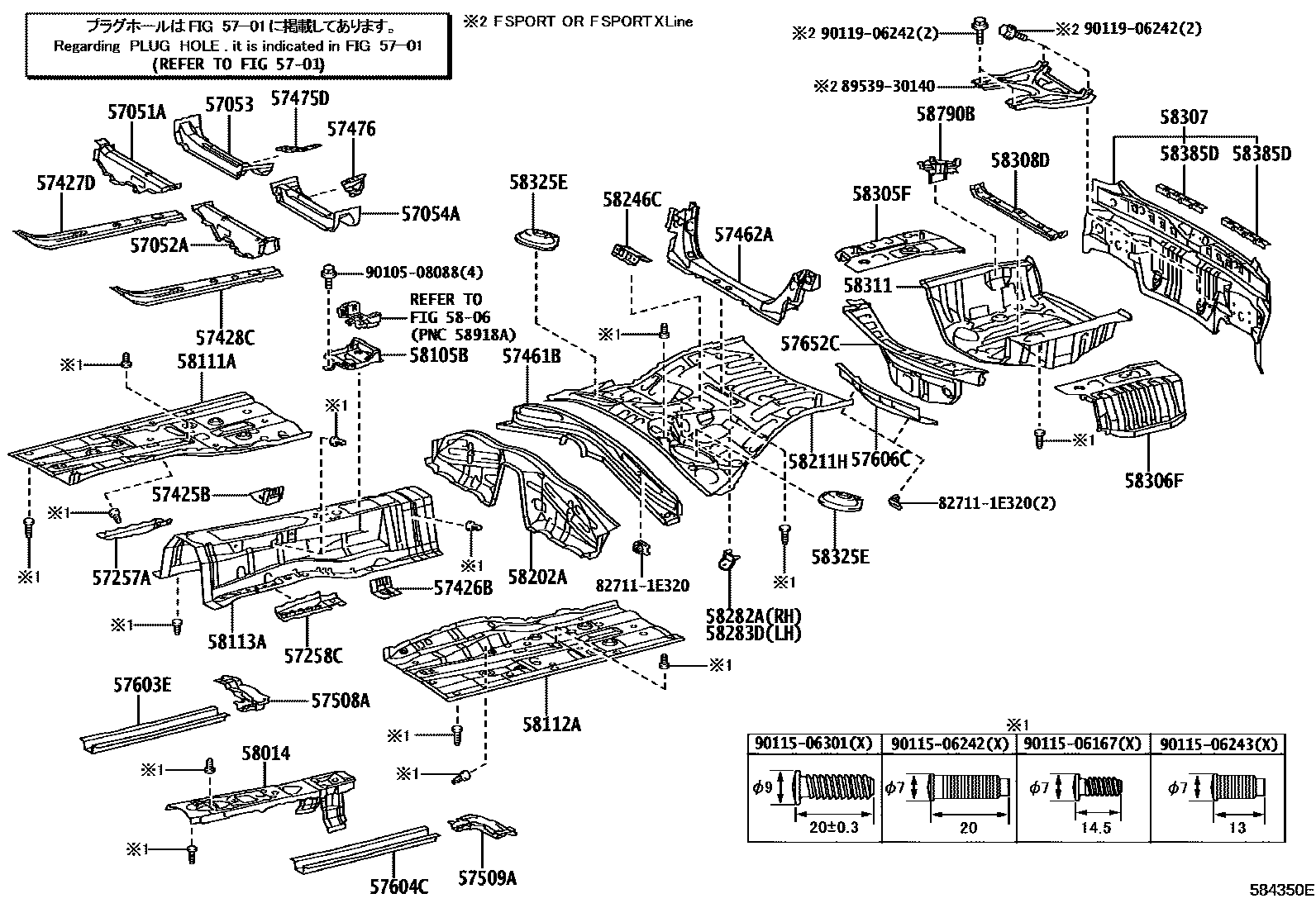

FLOOR PAN & LOWER BACK PANEL

0001 1������� & ����������� 0002 1������� & �����������(LDH) 0003 1������� & ����������� 0004 1������� & ����������� 0005 1�����������

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-30100iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-30100iGRL10..8FC;AWL10,GRL11,GWL10201112-202007

main57052-30110iGRL15201112-202007

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30080iARL10,AWL10,GRL1#,GWL10201112-202007

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30080iGRL10201112-202007

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-30041iGRL10201112-201405

main57257-30042iARL10,AWL10,GRL11,12,GWL10201405-202007

main57257-30050iGRL15201112-201312

sub57257-30070

main57257-30070iGRL15201401-202007

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57208-30020iGRL15201112-201312

sub57208-30030

main57208-30030iGRL15201401-202007

main57258-30091iGRL10201112-202007

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-30030iARL10,AWL10,GRL1#,GWL10201112-202007

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-30030iARL10,AWL10,GRL1#,GWL10201112-202007

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-30040iGRL15201112-201312

sub57427-30041

main57427-30041iARL10,AWL10,GRL1#,GWL10201312-202007

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-30040iGRL10201112-201311

sub57427-30041

main57427-30041iAWL10,GRL1#,GWL10201312-202007

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-30121iARL10,AWL10,GRL1#,GWL10201112-202007

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57405-30070iGRL1#,GWL10201112-201212

sub57405-53020

main57405-30080iARL10,AWL10,GRL1#,GWL10201801-201804

sub57405-30081

main57405-30081iARL10,AWL10,GRL1#,GWL10201804-202007

main57405-53020iGRL10..8FC;AWL10,GRL11,15,GWL10201301-201712

sub57405-30080

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57455-30060iGRL10201112-202007

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57456-30040iGRL10201112-202007

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-30030iAWL10;GRL10..8FC201112-201310

sub57508-30031

main57508-30031iARL10,AWL10,GRL1#,GWL10201310-202007

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-30030iGRL1#,GWL10201112-201310

sub57509-30031

main57509-30031iAWL10,GRL1#,GWL10201310-202007

57603EEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH

main57603-30070iARL10,AWL10,GRL1#,GWL10201112-202007

57604CEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH

main57603-30070iARL10,AWL10,GRL1#,GWL10201112-202007

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57653-30150iGRL10201112-201712

sub57653-30151

main57653-30151iARL10,AWL10,GRL1#,GWL10201801-202007

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-30130iGRL1#201112-202007

main57652-30140iARL10,AWL10,GWL10201112-202007

main57652-30140iAWL10,GWL10201203-201510

main57652-30140iGRL10201409-201510

main57652-30140iGRL12202006-202007

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-30110iARL10,AWL10,GRL11,12,GWL10201112-202007

main58014-30130iGRL15201112-201307

sub58014-30131

main58014-30131iGRL15201308-201411

sub58014-30132

main58014-30132iGRL16201412-202007

5806

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-30050iARL10,AWL10,GRL1#,GWL10201112-202007

58111APAN, FRONT FLOOR, RH

main58111-30450iAWL10;GRL10..8FC201112-201310

sub58111-30451

main58111-30451iGRL15201310-201405

sub58111-30460

sub57257-30042

sub87212-30431

main58111-30460iAWL10,GRL10,11,GWL10201311-201510

main58111-30520iARL10,AWL10,GRL1#,GWL10201510-202007

58112APANEL, FRONT FLOOR, LH

main58112-30161iGRL10,11,GWL10201112-201310

sub58112-30162

main58112-30162iAWL10,GRL10,11,GWL10201310-201510

main58112-30170iGRL15201112-201309

sub58112-30171

main58112-30171iGRL15201310-201510

main58112-30200iARL10,AWL10,GRL11,12,GWL10201510-202007

main58112-30210iGRL16201510-202007

58113APANEL, FRONT FLOOR, CENTER

main58113-30190iGRL10201112-202007

main58113-30200iGRL16201112-202007

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-30131iGRL1#,GWL10201112-201212

sub58202-53010

main58202-53010iGRL10201301-202007

58211HPAN, CENTER FLOOR

main58211-30400iGRL10201112-201706

sub58211-30401

main58211-30401iARL10,GRL1#201707-202007

main58211-30410iAWL10,GWL10201203-201706

sub58211-30411

main58211-30411iAWL10,GWL10201707-202007

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-30020iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-30040iGRL10201112-202007

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-30030iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-30230iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-30220iARL10,GRL1#201112-202007

main58306-30230iAWL10,GWL10201203-202007

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30800iGRL10201112-201510

sub58307-30820

main58307-30820iARL10,AWL10,GRL1#,GWL10201510-202007

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-30020iGRL10201112-202007

main58308-30030iGRL10201112-202007

main58308-30030iGRL12202006-202007

main58308-30030iAWL10,GWL10201203-201510

main58308-30030iGRL10201409-201510

58311PAN, REAR FLOOR

main58311-30350iGRL10201112-201411

sub58311-30351

main58311-30351iGRL1#201412-202007

main58311-30380iGWL10201203-201301

sub58311-30381

main58311-30381iAWL10201301-201411

sub58311-30382

main58311-30382iGWL10201412-202007

main58311-30400iGWL10201203-201301

sub58311-30401

main58311-30400iGRL10201112-201301

sub58311-30401

main58311-30401iAWL10201409-201411

sub58311-30402

main58311-30401iGWL10201409-201411

sub58311-30402

main58311-30401iGRL10201301-201411

sub58311-30402

main58311-30401iGWL10201301-201411

sub58311-30402

main58311-30402iGWL10201412-202007

main58311-30402iAWL10201412-202007

main58311-30402iAWL10201412-201510

main58311-30402iAWL10201412-201510

main58311-30402iGWL10202006-202007

main58311-30402iGWL10202006-202007

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30030iGRL10201112-202007

58385DBRACKET, REAR BUMPER COVER

main58385-30080iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

58790BCARRIER ASSY, JACK

main58790-30030iGRL12202006-202007

main58790-30030iGRL10201112-202007

main58790-30030iAWL10,GWL10201203-201510

main58790-30030iGRL10201409-201510

main58790-30040iGRL11,15;GRL10..8FC201112-202007

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

8953930140BRACKET, TRANSMISSION CONTROL COMPUTER

main89539-30140

9010508088

main90105-08088

9011506167

main90115-06167

9011506242

main90115-06242

9011506243

main90115-06243

9011506301

main90115-06301

9011906242

main90119-06242

48 parts on this diagram · 5 diagrams in section
