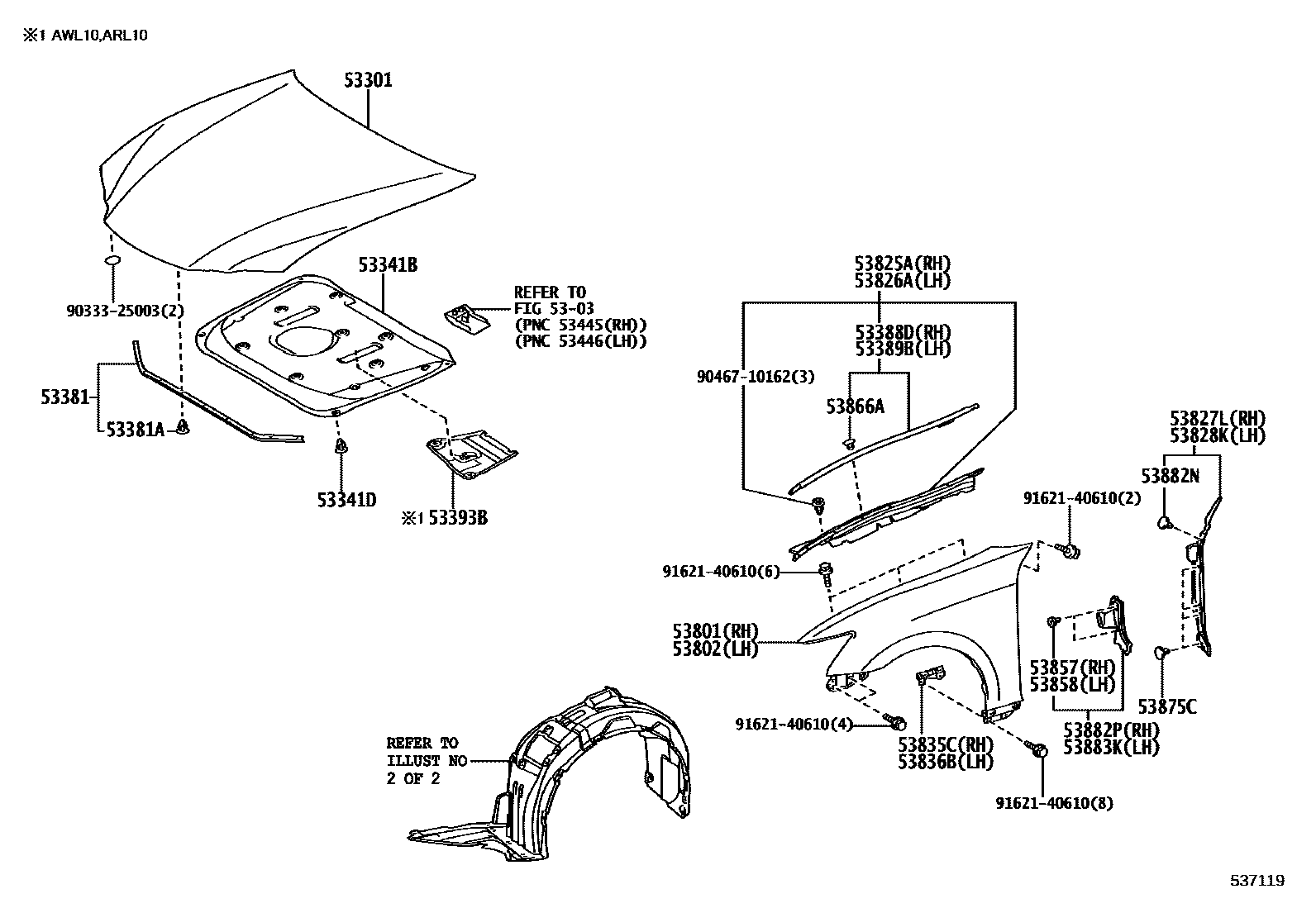

HOOD & FRONT FENDER

0001 1 0002 1��������

5303

53301HOOD SUB-ASSY

main53301-30490iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201404

sub53301-30491

main53301-30491iAWL10,GRL1#,GWL10201405-202007

53341BINSULATOR, HOOD

main53341-30310iGRL1#,GWL10201112-202007

main53341-30340iARL10,AWL10201309-202007

53341DCLIP(FOR HOOD INSULATER)

main90467-09050iGRL10201112-202007

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30260iGRL10201112-202007

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-30090iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-30080iGRL10201112-202007

53393BPROTECTOR, HOOD, FRONT

main53393-30050iAWL10201309-202007

53801FENDER SUB-ASSY, FRONT RH

main53801-30A20iARL10,AWL10,GRL1#,GWL10201112-202007

main53801-30A40iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

main53801-30A40iARL10,AWL10,GRL1#,GWL10202006-202007

main53801-30A40iAWL10,GRL1#,GWL10201409-201510

53802FENDER SUB-ASSY, FRONT LH

main53802-30A20iARL10,AWL10,GRL1#,GWL10201112-202007

main53802-30A30iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

main53802-30A30iAWL10,GRL1#,GWL10201409-201510

main53802-30A30iARL10,AWL10,GRL1#,GWL10202006-202007

53825APROTECTOR, FRONT FENDER, UPPER RH

main53805-30190iGRL10201112-202007

53826APROTECTOR, FRONT FENDER, UPPER LH

main53806-30190iARL10,AWL10,GRL1#,GWL10201112-202007

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-30040iGRL10201112-202007

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-30050iGRL10201112-202007

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-30120iGRL10201112-202007

53836BBRACKET, FRONT SIDE PANEL, LH

main53836-30070iGRL10201112-202007

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iGRL10201112-202007

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iGRL10201112-202007

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main65487-60010iGRL10201112-202007

53875CCLIP, FRONT FENDER LINER

main90467-06205-C0iGRL10201112-202007

BLACK

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0iGRL10201112-201710

BLACK

main90467-07223iARL10,AWL10,GRL1#,GWL10201711-202007

53882PSEAL, FRONT FENDER, RH

main53882-30070iGRL10201112-202007

53883KSEAL, FRONT FENDER, LH

main53883-30040iGRL10201112-202007

9033325003

main90333-25003

9046710162

main90467-10162

9162140610

main91621-40610

27 parts on this diagram · 2 diagrams in section
