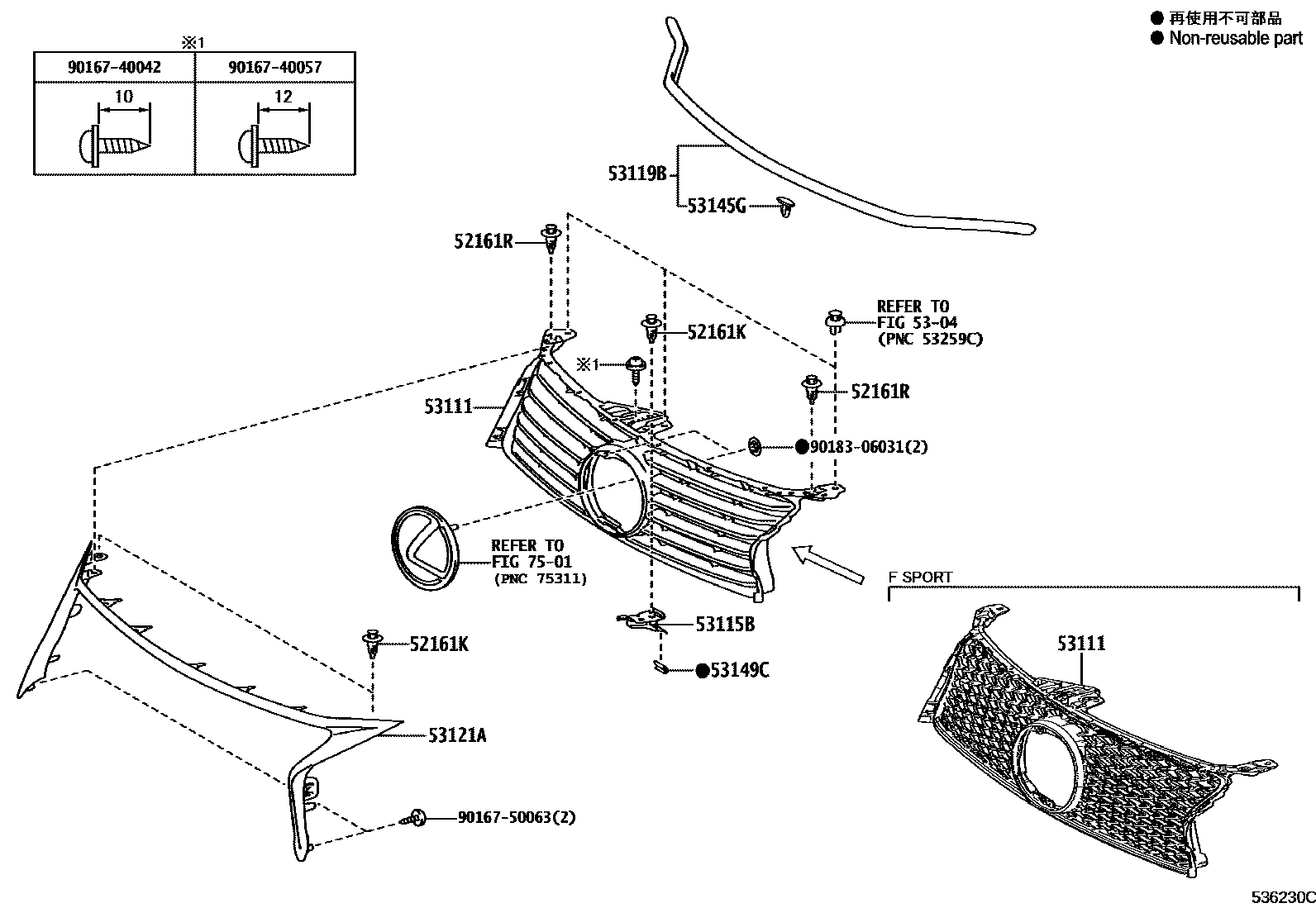

RADIATOR GRILLE

0001 1 0002 1F SPORT 0003 1

52161KPIECE, FRONT BUMPER

main52161-16010iAWL10,GRL1#,GWL10201112-201510

52161RPIECE, FRONT BUMPER

main52161-16010iGRL10201112-201510

5304

53111GRILLE, RADIATOR

main53111-30D90iGRL10201112-201510

main53111-30E00iGRL10201112-201510

main53111-30E00iGRL10201112-201510

main53111-30F00iAWL10,GRL1#,GWL10201409-201510

main53111-30F00iAWL10,GRL1#,GWL10201409-201510

53115BBRACKET, RADIATOR GRILLE

main53115-30070iGRL10201112-201510

53119BPROTECTOR, RADIATOR GRILLE

main53119-30260iGRL10201112-201510

main53119-30320iARL10,AWL10,GRL1#,GWL10201510-202007

53121AMOULDING, RADIATOR GRILLE

main52711-30270iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

main52711-30310iARL10,AWL10,GRL1#,GWL10201510-202007

main52711-30350iARL10,AWL10,GRL1#,GWL10202006-202007

53145GCLIP, RADIATOR GRILLE

main53145-60030iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

53149CPROTECTOR, RADIATOR GRILLE, NO.2

main53149-30050iGRL1#,GWL10201206-201209

sub53149-46010

main53149-46010iAWL10;GRL10..8FC201112-201510

7501

9016740042

main90167-40042

9016740057

main90167-40057

9016750063

main90167-50063

9018306031

main90183-06031

14 parts on this diagram · 3 diagrams in section
