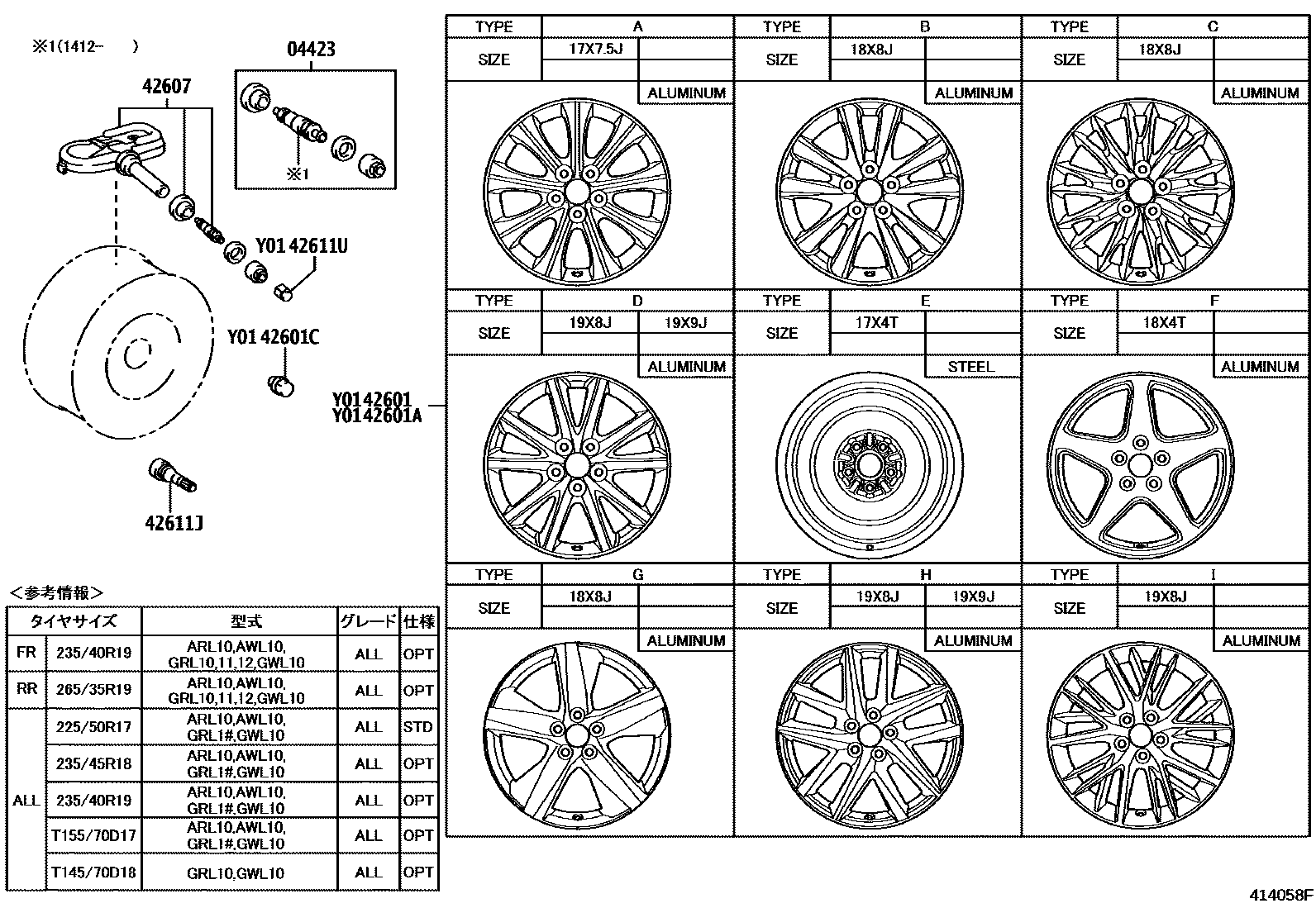

DISC WHEEL & WHEEL CAP

0001 1��������� 0002 1������������� 0003 1���������

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iGRL10201112-201411

sub04423-33060

main04423-33060iAWL10,GRL1#,GWL10201412-202007

42601WHEEL, DISC

main42611-30C91iGRL15201409-201510

sub42611-30D32

main42611-30C91iGRL15201409-201510

sub42611-30D32

main42611-30D21iAWL10,GRL10,11,GWL10201409-201510

main42611-30D60iARL10,AWL10,GRL1#,GWL10201510-201908

sub42611-30D61

main42611-30D61iARL10,AWL10,GRL1#,GWL10201909-202007

sub42611-30D70

main42611-30D80iARL10,AWL10,GRL1#,GWL10201510-202007

main42611-30E00iARL10,AWL10,GRL11,12,GWL10201510-202007

sub42611-30E10

main42611-30E00iARL10,AWL10,GRL11,12,GWL10201510-202007

sub42611-30E10

main42611-30E20iARL10,AWL10,GRL11,12,GWL10201510-202007

main42611-30E60iGRL1#,GWL10201112-201306

sub42611-30E61

main42611-30E61iAWL10,GRL1#,GWL10201307-201410

sub42611-30E62

main42611-30E62iARL10,AWL10,GRL1#,GWL10201411-201908

sub42611-30E63

main42611-30E63iARL10,AWL10,GRL1#,GWL10201909-202007

main42611-30J60iGRL16202006-202007

main42611-30J60iGRL16202006-202007

main42611-30K10iARL10,AWL10,GRL1#,GWL10201809-201909

main42611-30K30iARL10,AWL10,GRL12,GWL10202006-202007

main4261A-30140iGRL11201112-201309

sub4261A-30141

main4261A-30140iGRL11201112-201309

sub4261A-30141

main4261A-30160iAWL10,GRL1#,GWL10201112-201410

sub4261A-30161

main4261A-30161iAWL10,GRL1#,GWL10201410-201411

sub4261A-30162

main4261A-30162iAWL10,GRL1#,GWL10201411-201510

sub4261A-30172

main4261A-30180iAWL10,GRL10,11,GWL10201409-201410

sub4261A-30181

main4261A-30180iAWL10,GRL10,11,GWL10201409-201410

sub4261A-30181

main4261A-30180iGRL15201112-201410

sub4261A-30181

main4261A-30180iGRL15201112-201410

sub4261A-30181

main4261A-30181iGRL15201410-201510

sub4261A-30182

main4261A-30181iAWL10,GRL10,11,GWL10201410-201510

sub4261A-30182

main4261A-30181iAWL10,GRL10,11,GWL10201410-201510

sub4261A-30182

main4261A-30181iAWL10,GRL10,11,GWL10201410-201510

sub4261A-30182

main4261A-30200iAWL10,GRL10,11,GWL10201112-201410

sub4261A-30201

main4261A-30200iAWL10,GRL10,11,GWL10201409-201410

sub4261A-30201

main4261A-30201iAWL10,GRL10,11,GWL10201410-201510

sub4261A-30202

main4261A-30201iAWL10,GRL10,11,GWL10201410-201510

sub4261A-30202

main4261A-30270iGRL1#,GWL10201112-201306

sub4261A-30271

main4261A-30271iAWL10,GRL1#,GWL10201307-201510

sub4261A-30272

main4261A-30320iGRL11201309-201410

sub4261A-30321

main4261A-30320iGRL11201309-201410

sub4261A-30321

main4261A-30321iGRL11201410-201411

sub4261A-30322

main4261A-30321iGRL11201410-201411

sub4261A-30322

main4261A-30322iAWL10,GRL10,15,GWL10201411-201710

sub4261A-30332

main4261A-30322iGRL11201411-201510

sub4261A-30332

main4261A-30332iARL10,AWL10,GRL1#,GWL10201710-202007

main4261A-30340iAWL10,GRL1#,GWL10201309-201410

sub4261A-30341

main4261A-30341iAWL10,GRL1#,GWL10201410-201510

sub4261A-30342

42601AWHEEL, DISC (FOR SPARE)

main42611-30A60iAWL10,GRL1#,GWL10201112-201409

main42611-30F40iGRL12,GWL10201510-201908

sub42611-30F41

main42611-30F40iGRL10,GWL10201112-201309

sub42611-30F41

main42611-30F40iGRL10,GWL10201309-201510

sub42611-30F41

main42611-30F40iGRL10,GWL10201409-201510

sub42611-30F41

main42611-30F40iGRL12,GWL10201510-201908

sub42611-30F41

main42611-30F41iGRL12,GWL10201909-202007

main42611-30F41iGRL12,GWL10201909-202007

main42611-53320iARL10,AWL10,GRL1#,GWL10201409-201908

sub42611-53321

main42611-53321iARL10,AWL10,GRL1#,GWL10201909-202007

42601CNUT, HUB (FOR AXLE)

main90942-01033iAWL10,GRL1#,GWL10201112-202007

main90942-01115iGRL16202006-202007

main90942-01115iGRL16202006-202007

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30060iGRL10201112-202007

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGRL12,GWL10201510-202007

main90942-05009iGRL12,GWL10201510-202007

main90942-05009iARL10,AWL10,GRL1#,GWL10201510-202007

main90942-05009iGRL10201112-201510

main90942-05009iGRL10201112-201309

main90942-05009iGRL10,GWL10201309-201510

main90942-05009iGRL10,GWL10201410-201510

42611UCAP, TIRE VALVE

main90942-05037iGRL1#,GWL10201112-201207

main90942-05042iARL10,AWL10,GRL1#,GWL10201207-202007

7 parts on this diagram · 3 diagrams in section
