IGNITION COIL & SPARK PLUG / GLOW PLUG

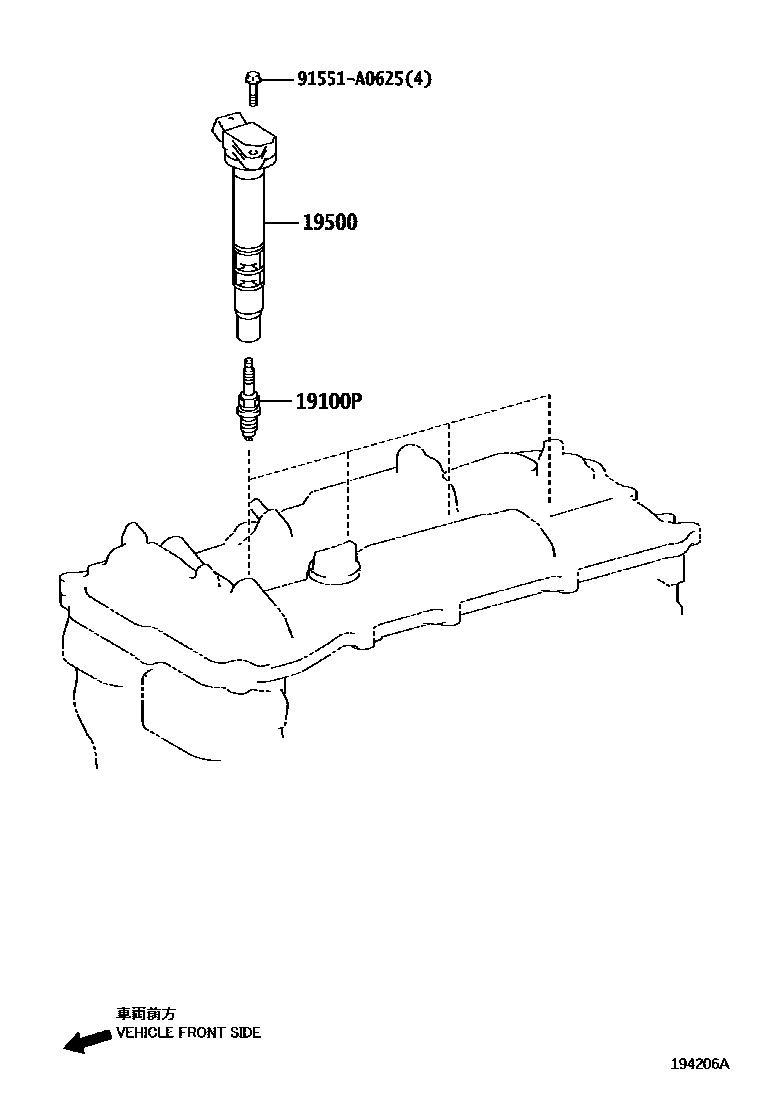

Parts diagram

19100PPLUG, SPARK

main90919-01249i201112-201608

main90919-01263i201203-202007

main90919-01276i201609-202007

19500COIL ASSY, IGNITION

main90919-02256i201112-202007

main90919-02256i201510-201608

main90919-02269i201609-202007

main90919-02273i201510-202007

91551A0625

main91551-A0625

3 parts on this diagram · 3 diagrams in section
