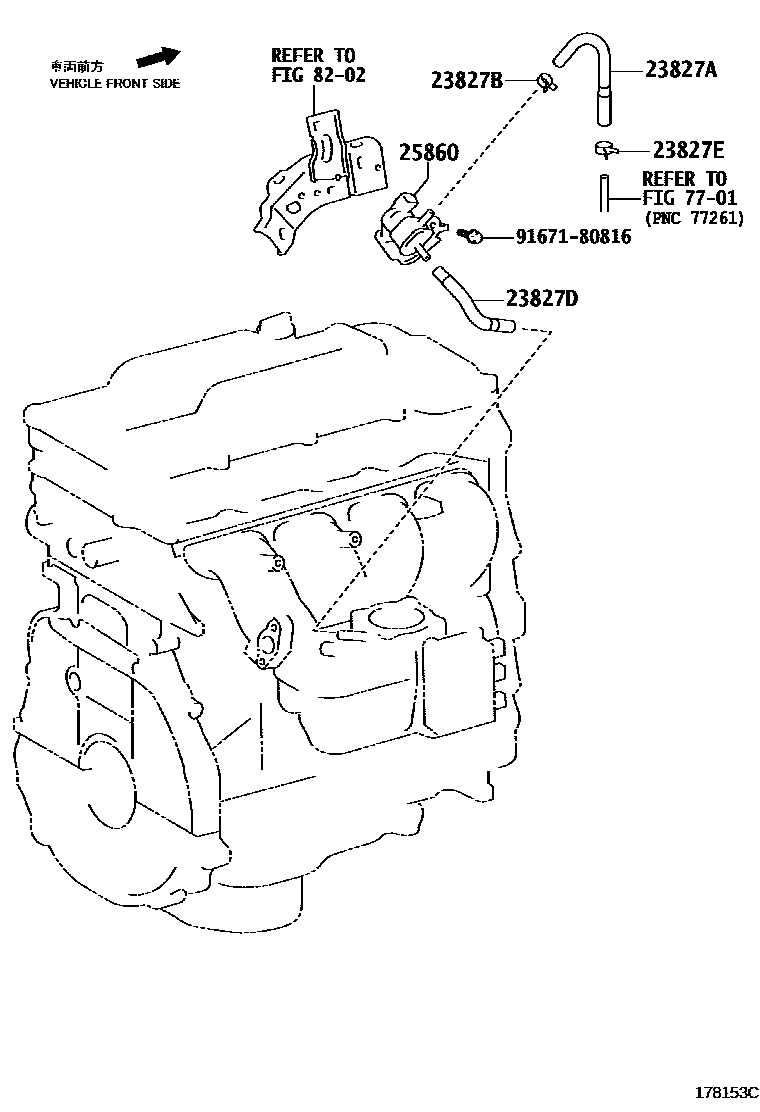

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31150i2GRFSE,4GRFSE..GRL1#201112-201510

main23827-31160i2GRFXE..GWL10201510-202007

main23827-36110i2ARFSE..AWL10201309-201510

main23827-36150i8ARFTS..ARL10201609-202007

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300i2GR#,4GRFSE..GRL1#,GWL10201112-201510

main96136-42201i8ARFTS..ARL10201609-202007

23827DHOSE, FUEL VAPOR FEED, NO.2

main23827-36120i2ARFSE..AWL10201309-201510

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2GR#,4GRFSE..GRL1#,GWL10201112-201510

main96137-41901i8ARFTS..ARL10201609-202007

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-201510

main25860-31090i2GR#..GRL12,16,GWL10201510-202007

main25860-36080i2ARFSE..AWL10201309-201510

7701

8202

9167180816

main91671-80816

8 parts on this diagram · 4 diagrams in section
