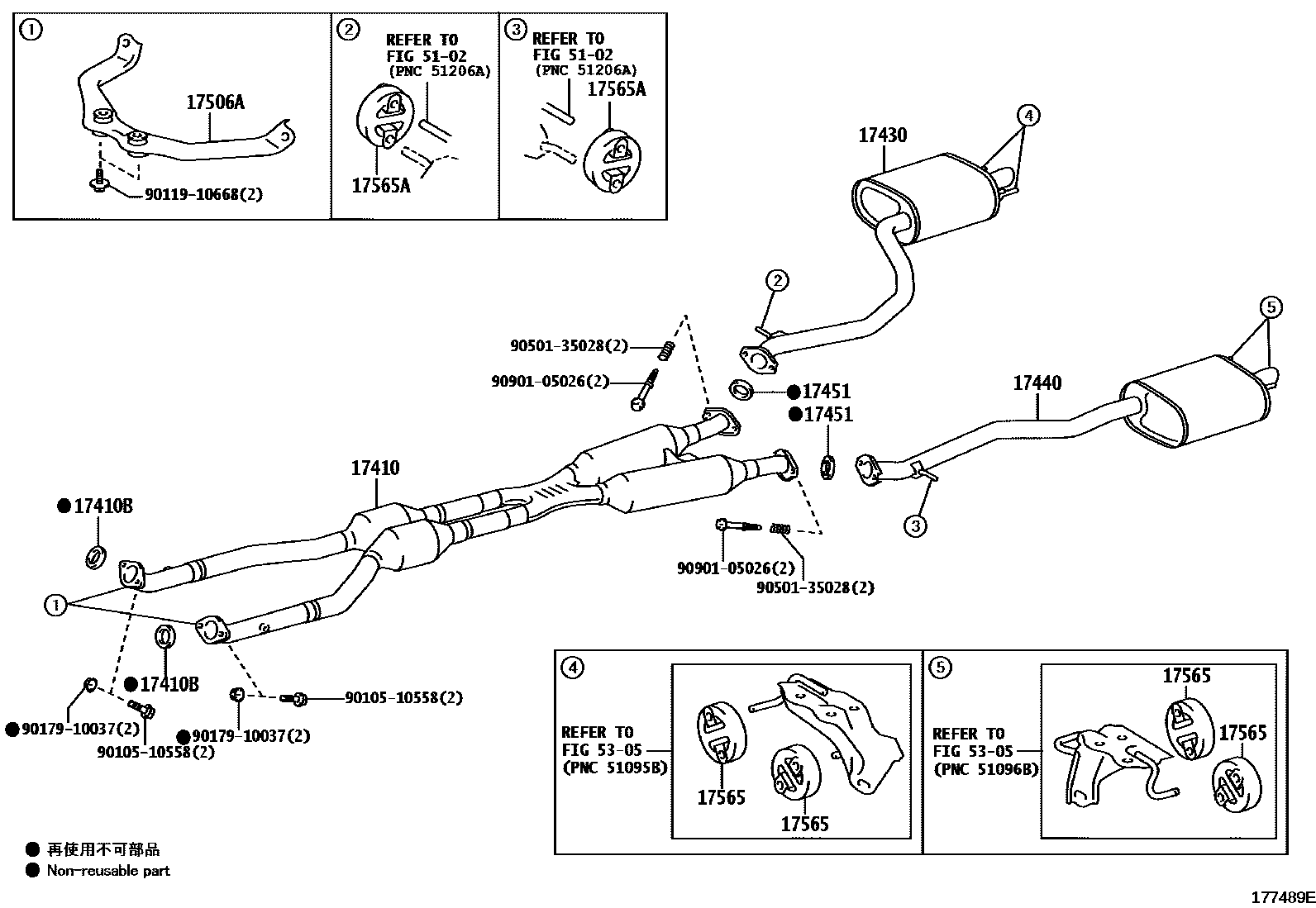

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-31D00i2GRFSE..GRL10¥182,000201112-201309

sub17410-31D10¥182,000

main17410-31D10i2GRFSE..GRL10¥182,000201309-201510

main17410-31D20i2GRFSE..GRL15¥182,000201112-201309

sub17410-31D30¥182,000

main17410-31D30i2GRFSE..GRL15¥182,000201309-201510

main17410-31D40i4GRFSE..GRL11¥182,000201112-201309

sub17410-31D50¥183,000

main17410-31D50i4GRFSE..GRL11¥183,000201309-201608

main17410-31D60i2GRFXE..GWL10¥158,000201203-202007

main17410-31E90i2GRFKS..GRL12¥158,000201510-202007

main17410-31F00i2GRFKS..GRL16¥158,000201510-202007

main17410-36390i2ARFSE..AWL10¥122,000201309-202007

main17410-36530i8ARFTS..ARL10¥115,000201609-202007

17410BGASKET, EXHAUST PIPE

main90917-06078i2ARFSE..AWL10¥340201112-202007

main90917-06090i8ARFTS..ARL10¥590201609-202007

17430PIPE ASSY, EXHAUST, TAIL

main17430-31B20i2GRFSE,4GRFSE..GRL11,15¥37,800201112-201309

sub17430-31C80¥31,500

main17430-31B40i2GRFSE,4GRFSE..GRL11,15201309-201311

sub17430-31C80¥31,500

main17430-31B50i2GRFXE..GWL10¥31,500201309-202007

main17430-31B60i2GRFXE..GWL10¥37,800201203-201309

sub17430-31B50¥31,500

main17430-31C80i2GRFSE..GRL10¥31,500201112-202007

main17430-36290i2ARFSE..AWL10¥31,500201309-202007

main17430-36461i8ARFTS..ARL10¥31,500201609-202007

17440PIPE, EXHAUST TAIL, LH

main17440-31080i2GRFSE,4GRFSE..GRL11,15¥46,400201112-201309

sub17440-31160¥38,600

main17440-31100i2GRFSE,4GRFSE..GRL11,15201309-201311

sub17440-31160¥38,600

main17440-31110i2GRFXE..GWL10¥38,600201309-202007

main17440-31120i2GRFXE..GWL10¥46,400201203-201309

sub17440-31110¥38,600

main17440-31160i2GRFKS,4GRFSE..GRL1#¥38,600201112-202007

main17440-36040i2ARFSE..AWL10¥31,500201309-202007

main17440-36101i8ARFTS..ARL10¥38,600201609-202007

17451GASKET, EXHAUST PIPE

main17451-28032i2GRFSE..GRL10¥1,360201112-202007

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31030i4GRFSE..GRL11¥3,340201112-201608

main17506-31040i2GRFSE..GRL15¥3,690201112-201310

sub17506-31041¥2,320

main17506-31041i2GRFKS..GRL16¥2,320201311-202007

main17506-31101i2GRFXE..GWL10¥3,340201203-202007

main17506-31110i2GRFSE..GRL10¥2,770201309-202007

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040i2ARFSE,2GR#,4GRFSE..AWL10,GRL1#,GWL10¥670201112-202007

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i2GRFSE..GRL10¥670201112-202007

5102

5305

9010510558

main90105-10558¥140

9011910668

main90119-10668¥130

9017910037

main90179-10037¥360

9050135028

main90501-35028¥550

9090105026

main90901-05026¥310

15 parts on this diagram · 7 diagrams in section
