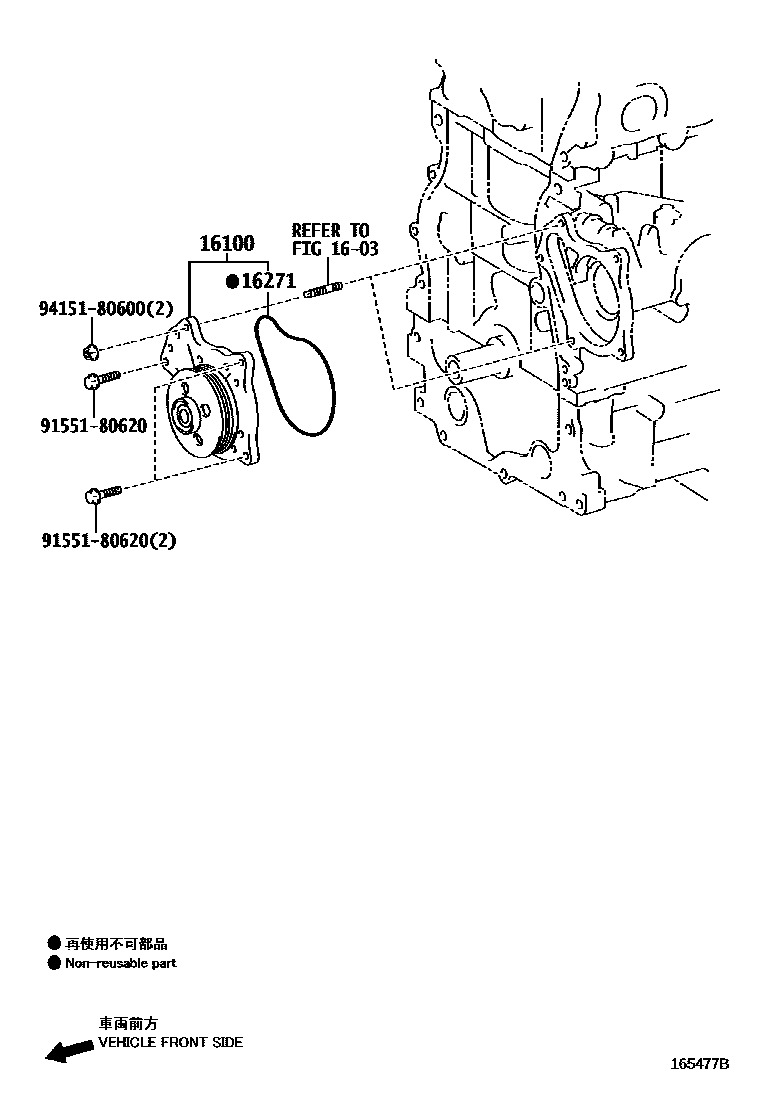

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39436i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10¥13,400201112-202007

main16100-39575i2ARFSE..AWL10¥9,000201309-202007

main16100-39595i8ARFTS..ARL10¥9,500201609-202007

main16100-39615i2GRFKS..GRL12,16¥9,500201510-202004

sub16100-39616¥9,500

main16100-39616i2GRFKS..GRL1#¥9,500202004-202007

16271GASKET, WATER PUMP

main16271-31020i2GRFXE,4GRFSE..GRL11,GWL10¥2,320201112-202007

main16271-31050i2GRFKS..GRL12,16¥1,740201510-202007

main16271-36030i2ARFSE..AWL10¥200201309-202007

main16271-36040i8ARFTS..ARL10¥340201609-202007

9155180620

main91551-80620¥60

9415180600

main94151-80600¥60

5 parts on this diagram · 5 diagrams in section
