TELEPHONE & MAYDAY

0001 1 0002 1

86070MOBILEPHONE & ACCESSORY ASSY

main86070-30250iJZS16#199708-200007

86702BRACKET SET, TELEPHONE

main86702-30040iJZS16#199708-200007

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-50090iJZS16#199708-200007

86710COMPUTER ASSY, TELEPHONE

main86710-30190iJZS16#199708-200007

86719BRACKET, TELEPHONE

main86719-30120iJZS16#199708-200007

86719ABRACKET, TELEPHONE NO.1

main86719-30100iJZS16#199708-200007

main86719-30110iJZS16#199708-200007

86722CRADLE, MOBILEPHONE

main86072-30090iJZS16#199708-200007

86723WIRE, MOBILEPHONE

main86723-30260iJZS16#199708-200007

main86723-30310iJZS16#199708-200007

main86723-30320iJZS16#199708-200007

main86723-30340iJZS16#199708-200007

86726COVER, MOBILEPHONE

main86726-30200iJZS16#199708-200007

86730MICROPHONE ASSY, TELEPHONE

main86730-30110iJZS16#199708-200007

main86730-30130iJZS16#199708-200007

86776ACOVER, TELEPHONE WIRE

main86776-30070iJZS16#199708-200007

86779STRAP, PORTABLEPHONE

main86779-30030iJZS16#199708-200007

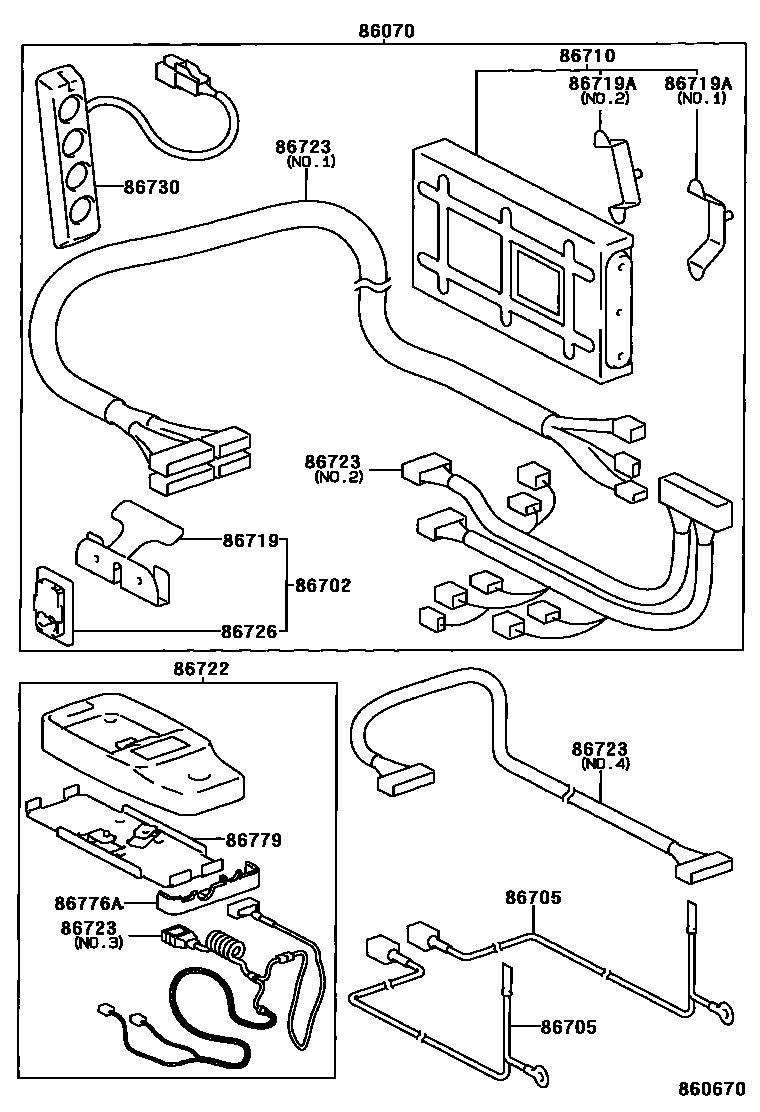

12 parts on this diagram · 2 diagrams in section
