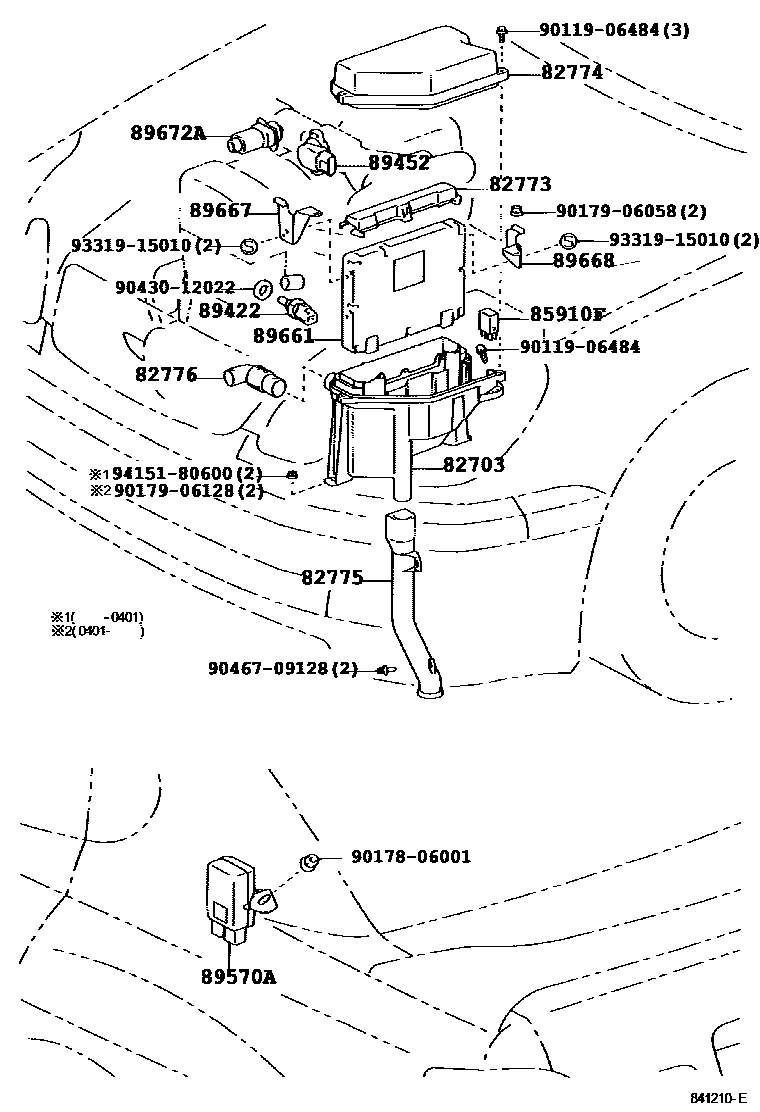

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

82703BOX SUB-ASSY, ENGINE ROOM ECU

main82703-30010iJZS16#199708-200007

main82703-30070iJZS16#200007

82773HOOD, ENGINE ROOM ECU

main82773-30010iJZS16#199708-200007

82774COVER, ENGINE ROOM ECU

main82774-30010iJZS16#199708-200007

main82774-30040iJZS16#200007

82775DUCT, ENGINE ROOM ECU INLET

main82775-30010iJZS16#199708-200007

main82775-30030iJZS16#200007

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-30010iJZS16#199708-200007

main82776-30060iJZS16#200007

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iJZS16#199708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30030iJZS160199708-200501

main89422-35010iJZS161199708-200501

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30150iJZS16#199708-200501

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-30180iJZS16#199708

89661COMPUTER, ENGINE CONTROL

main89661-3A410iJZS160199708-199810

main89661-3A411iJZS160199810-200007

main89661-3A470iJZS161199708-200007

main89666-30090iJZS160200007-200501

main89666-30180iJZS161200007-200501

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30240iJZS16#199708-200007

main89667-30250iJZS16#200007-200501

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30200iJZS16#199708-200007

89672AMOTOR, THROTTLE CONTROL

main89672-30020iJZS160199708-200501

9011906484

main90119-06484

9017806001

main90178-06001

9017906058

main90179-06058

9017906128

main90179-06128

9043012022

main90430-12022

9046709128

main90467-09128

9331915010

main93319-15010

9415180600

main94151-80600

21 parts on this diagram · 4 diagrams in section
