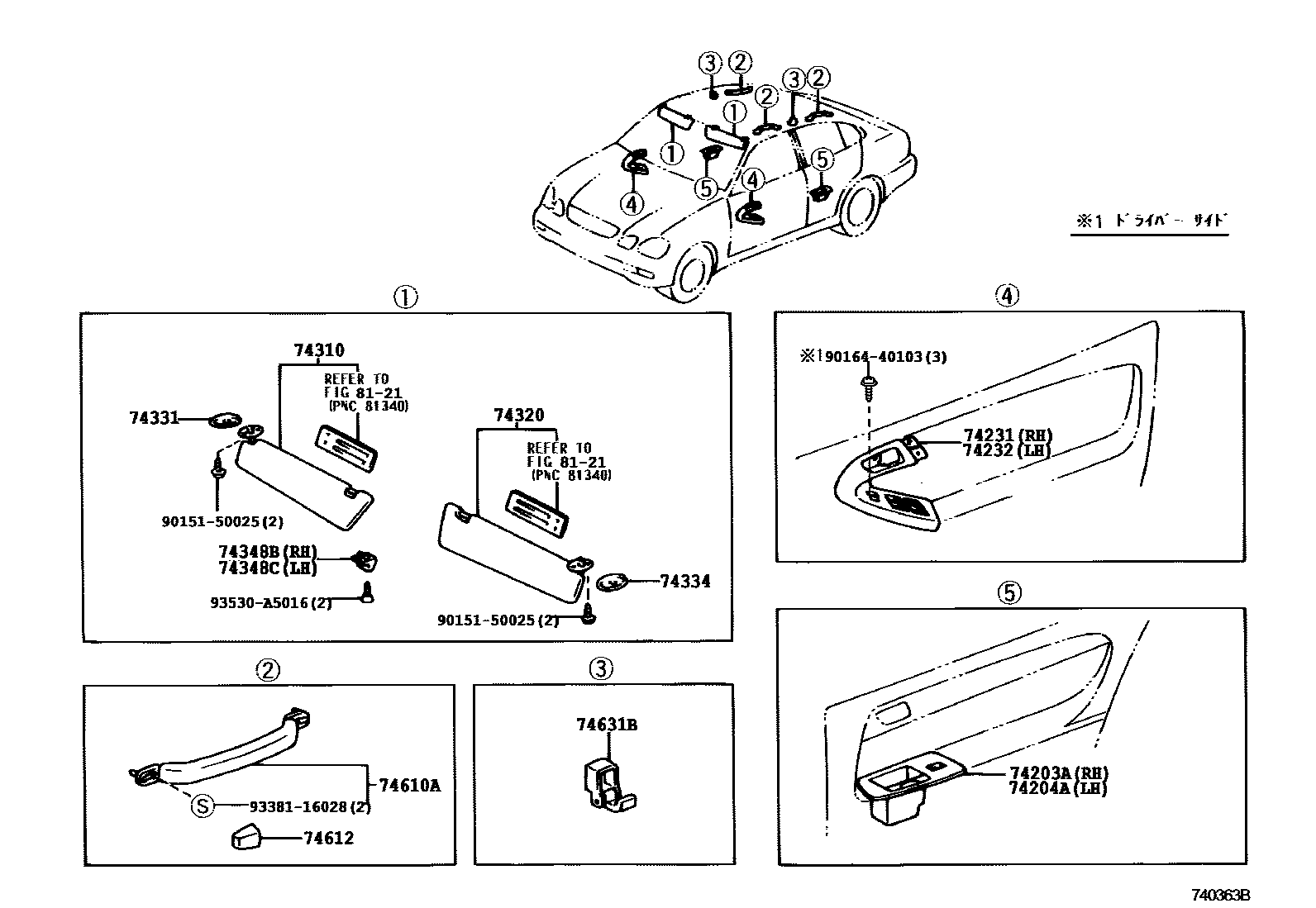

ARMREST & VISOR
74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH
DK.CHARCOAL,TRIM1#
BLACK,TRIM22,23
BLACK,TRIM22,23,24,25,26
SANDAL WOOD,TRIM0#
74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH
DK.CHARCOAL,TRIM1#
BLACK,TRIM22,23
BLACK,TRIM22,23,24,25,26
SANDAL WOOD,TRIM0#
74231PANEL, FRONT ARMREST BASE, UPPER RH
DK.CHARCOAL,TRIM1#
BLACK,TRIM22,23,24,25,26
BLACK,TRIM22,23
SANDAL WOOD,TRIM0#
74232PANEL, FRONT ARMREST BASE, UPPER LH
DK.CHARCOAL,TRIM1#
BLACK,TRIM22,23,24,25,26
BLACK,TRIM22,23
SANDAL WOOD,TRIM0#
74310VISOR ASSY, RH
74320VISOR ASSY, LH
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#,22,23,24,25,26
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#,22,23
74331CASE, VISOR ARM, RH
74334CASE, VISOR ARM, LH
74348BHOLDER, VISOR, RH
74348CHOLDER, VISOR, LH
74610AGRIP SUB-ASSY, ASSIST
74612COVER, ASSIST GRIP
74631BHOOK, COAT
8121
9015150025
main90151-50025
9016440103
main90164-40103
9338116028
main93381-16028
93530A5016
main93530-A5016
18 parts on this diagram · 2 diagrams in section
