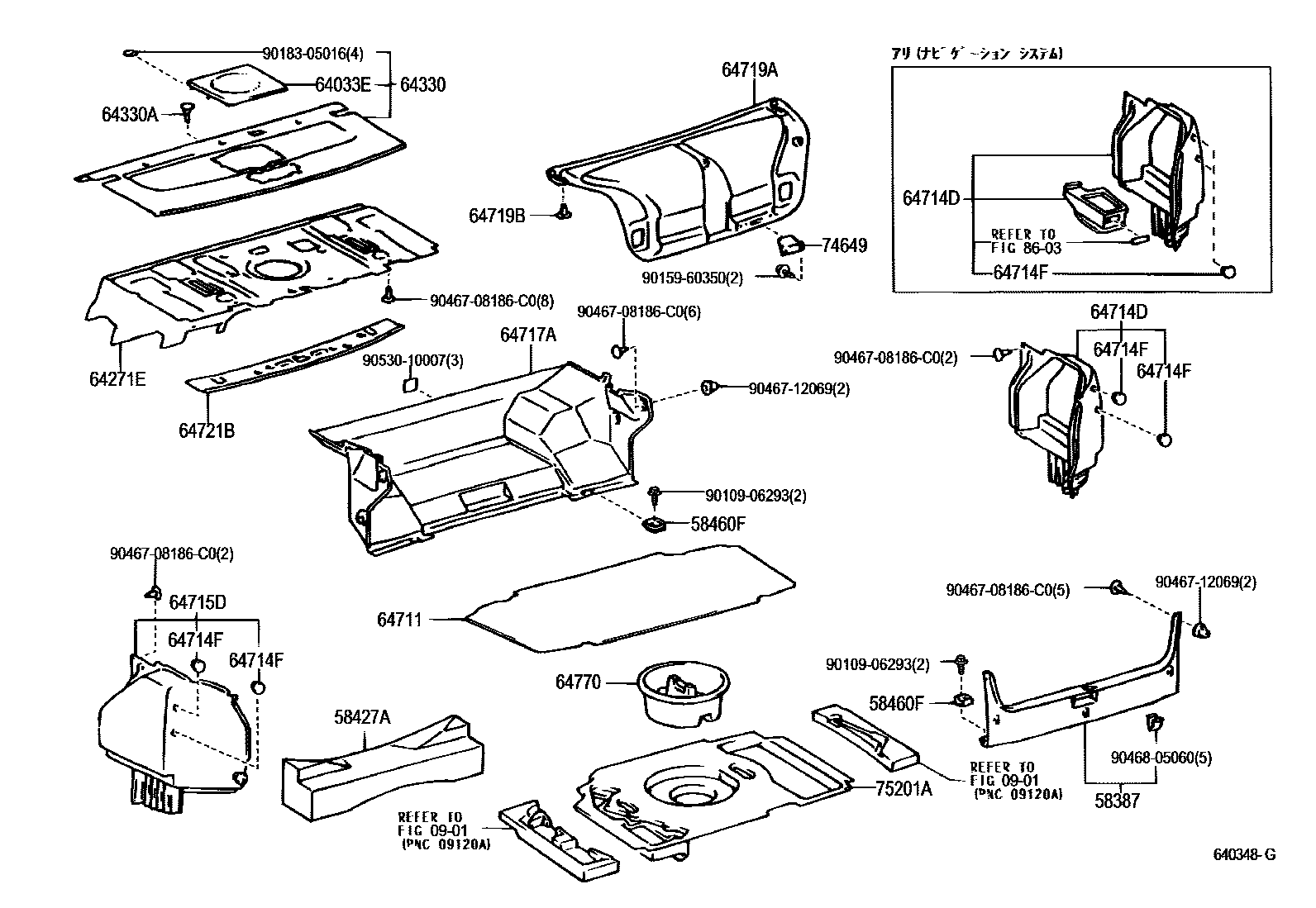

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0901

58387PLATE, REAR FLOOR FINISH

main58387-30110-C0iJZS16#199708-199904

BLACK,TRIM0#,1#,22,23,24,25,26

sub58387-30111

main58387-30111-C0iJZS16#199904-200007

BLACK,TRIM0#,1#,22,23,24,25,26

main58387-30111-C0iJZS16#200007-200501

BLACK,TRIM0#,1#,22,23

58427ASPACER, REAR FLOOR BOARD

main58427-30040iJZS160199708-199901

sub58427-30041

main58427-30041iJZS160199901-199908

58460FSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33010iJZS16#199708

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-30070-A0iJZS161;JZS160..5FC199708-200501

IVORY,TRIM0#

main64033-30070-B0iJZS16#199708-200501

MEDIUM CHARCOAL,TRIM1#

main64033-30070-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main64033-30070-C0iJZS16#200007-200501

BLACK,TRIM22,23

64271EPANEL, ROOM PARTITION

main64271-30210iJZS16#199708-200501

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-3A350-A0iJZS160199708-200501

main64330-3A350-B0iJZS161;JZS160..5FC199708-200501

main64330-3A350-C0iJZS161199708-200007

BLACK,TRIM22,23,24,25,26

main64330-3A350-C0iJZS161199708-200007

main64330-3A350-C0iJZS16#200007-200501

main64330-3A360-A0iJZS160199708-200501

IVORY,TRIM0#

main64330-3A360-B0iJZS160199708-200501

MEDIUM CHARCOAL,TRIM1#

main64330-3A360-C0iJZS160199708-200007

BLACK,TRIM2#

main64330-3A370-A0iJZS160199708-200501

main64330-3A370-B0iJZS16#199708-200501

main64330-3A370-C0iJZS16#199708-200007

main64330-3A370-C0iJZS16#200007-200501

main64330-3A540-A0iJZS160199908-200501

main64330-3A540-B0iJZS160199908-200501

main64330-3A540-C0iJZS160199908-200007

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06049-22iJZS16#199708-200007

BLACK,TRIM0#,1#,22,23,24,25,26

sub90467-06049

main90467-06049-22iJZS16#200007

BLACK,TRIM0#,1#,22,23

sub90467-06049

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-30500-C0iJZS16#200007-200501

BLACK,TRIM0#,1#,22,23

main64711-30500-C0iJZS16#199708-200007

BLACK,TRIM0#,1#,22,23,24,25,26

main64711-30510-C0iJZS16#200007-200501

main64711-30510-C0iJZS16#199708-200007

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64071-30110-C0iJZS161199708-199908

main64071-30110-C0iJZS161199708-199908

main64071-30130-C0iJZS161199908-200007

main64071-30130-C0iJZS161199908-200007

main64071-30130-C0iJZS16#200007-200501

main64714-30340-C0iJZS16#199708-200007

BLACK,TRIM0#,1#,22,23,24,25,26

main64714-30340-C0iJZS16#200007-200501

BLACK,TRIM0#,1#,22,23

64714FPLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER)

main90950-01846iJZS16#199708

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-30250-C0iJZS16#199708-200007

BLACK,TRIM0#,1#,22,23,24,25,26

main64715-30250-C0iJZS16#200007-200501

BLACK,TRIM0#,1#,22,23

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-30010-C0iJZS16#199708-199712

BLACK,TRIM0#,1#,22,23,24,25,26

main64075-30011-C0iJZS16#200007-200308

BLACK,TRIM0#,1#,22,23

sub64075-30012

main64075-30011-C0iJZS16#199712-200007

BLACK,TRIM0#,1#,22,23,24,25,26

sub64075-30012

main64075-30012-C0iJZS16#200308-200501

BLACK,TRIM0#,1#,22,23

main64075-30020-C0iJZS161199708-199712

main64075-30020-C0iJZS161199708-199712

main64075-30021-C0iJZS16#199712-200007

sub64075-30022

main64075-30021-C0iJZS16#200007-200308

sub64075-30022

main64075-30022-C0iJZS16#200308-200501

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-30120-C0iJZS16#199708-199908

BLACK,TRIM0#,1#,22,23,24,25,26

sub64719-30122

sub90467-08186

main64719-30121-C0iJZS16#199908-200003

BLACK,TRIM0#,1#,22,23,24,25,26

sub64719-30122

main64719-30122-C0iJZS160200003-200007

BLACK,TRIM0#,1#,2#

main64719-30122-C0iJZS161;JZS160..5FC200003-200501

BLACK,TRIM0#,1#,22,23

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-05125-C0iJZS16#199708-199908

BLACK,TRIM0#,1#,22,23,24,25,26

sub90467-05125

main90467-08186iJZS160199908-200007

main90467-08186-C0iJZS16#200007-200501

BLACK,TRIM0#,1#,22,23

sub90467-08186

main90467-08186-C0iJZS161199908-200007

BLACK,TRIM0#,1#

sub90467-08186

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-30100-C0iJZS16#199708-199803

BLACK,TRIM0#,1#,22,23,24,25,26

main64721-30101-C0iJZS16#199803-200007

BLACK,TRIM0#,1#,22,23,24,25,26

main64721-30101-C0iJZS16#200007-200501

BLACK,TRIM0#,1#,22,23

64770COVER ASSY, SPARE WHEEL

main64771-24020iJZS16#199708-199908

main64771-24030iJZS160199708-199908

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-30010iJZS16#199708

75201ABOX, TOOL

main75201-30040iJZS16#199908-200501

8603

9010906293

main90109-06293

9015960350

main90159-60350

9018305016

main90183-05016

9046708186C0

main90467-08186C0

9046712069

main90467-12069

9046805060

main90468-05060

9053010007

main90530-10007

27 parts on this diagram · 1 diagram in section
